Rear Suspension - Shock Absorber And Brake Discs

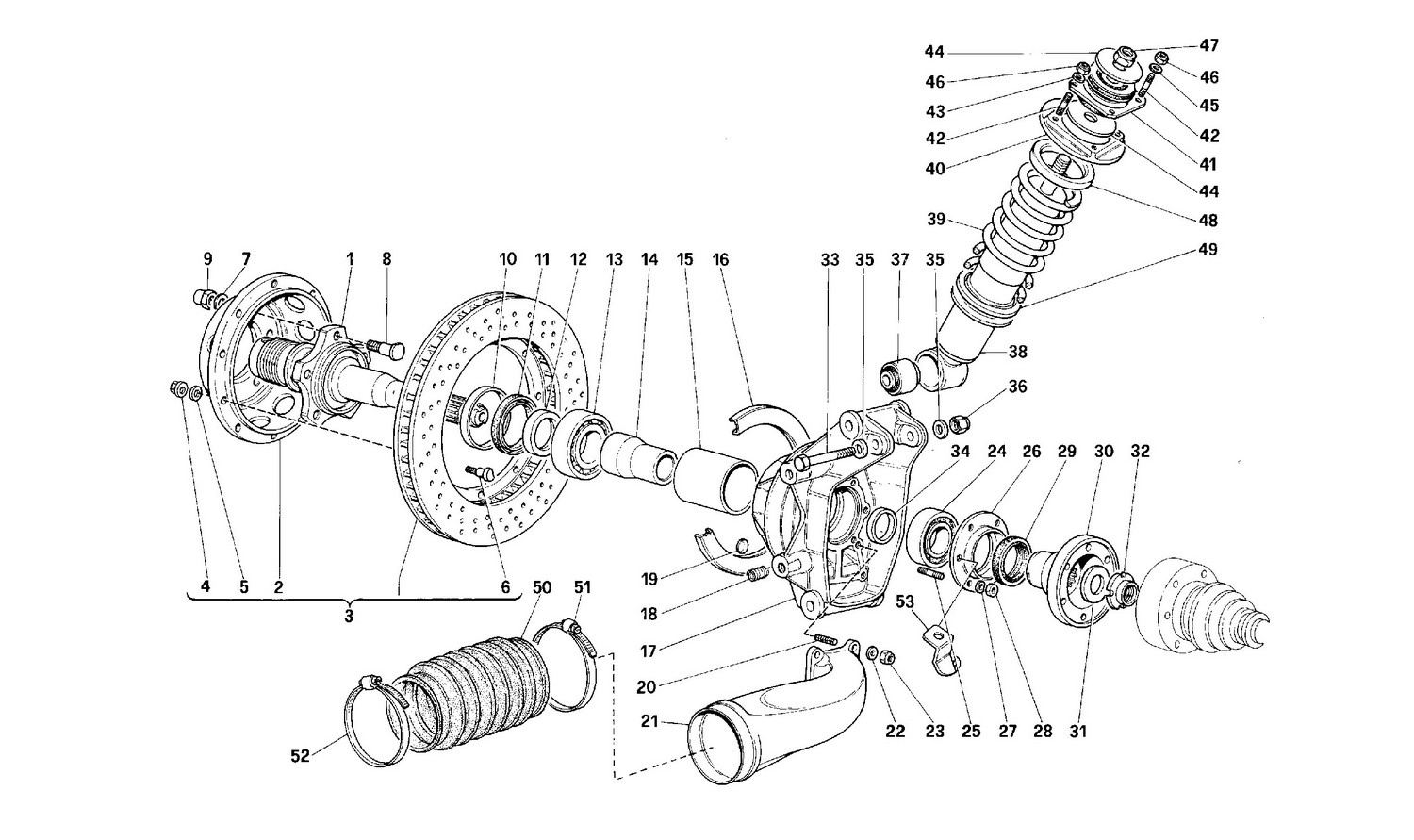

Schematic: Rear Suspension - Shock Absorber And Brake Discs
Schematic: Rear Suspension - Shock Absorber And Brake Discs
Loc
Part
Cond       Price
1
Shaft whit right hub
136984 (1) Full qty
1
Shaft whit left hub
136985 (1) Full qty
2
Flange
134140 (2) Full qty
3
Brake disc + flange
70000603 (2) Full qty
4
NUT
139951 (20) Full qty
5
WASHER
139721 (20) Full qty
6
SCREW
139720 (20) Full qty
7
Washer
101445 (10) Full qty
8
Screw
128879 (10) Full qty
9
Nut
128878 (10) Full qty
10
Ring
128898 (2) Full qty
11
Oil Seal
New       Price on Enquiry
129242 (2) Full qty
GE00452n
12
Spacer
128899 (2) Full qty
13
Bearing
128948 (2) Full qty
14
Spacer
128937 (2) Full qty
15
Tube
128887 (2) Full qty
16
Splash guard
131764 (2) Full qty
17
Hub holder
135145 (2) Full qty
18
Heli-coil
13524670 (8) Full qty
19
Core Plug 16mm Flat
New       Price on Enquiry
10158601 (4) Full qty
CH11916n
20
Stud
11001321 (8) Full qty
21
L.H. conveyor
136403 (1) Full qty
21
R.H. conveyor
136402 (1) Full qty
22
Washer
14496301 (8) Full qty
23
NUT
169180 (8) Full qty
24
Bearing
128949 (2) Full qty
25
Exhaust Stud 355
New       £ 3.25
13543324 (12) Full qty
EX10823n
26
Bearing retaining flange
125976 (2) Full qty
27
Wavy Lock Washer 8mm
127496 (12) Full qty
28
Nut
16100821 (12) Full qty
29
Oil Seal 45/60/10-13
New       Price on Enquiry
115968 (2) Full qty
BS00334n
30
Axle shaft flange
119372 (2) Full qty
31
Washer
105511 (2) Full qty
32
Ring Nut
New       Price on Enquiry
102289 (2) Full qty
GB10252n
33
Screw
132667 (2) Full qty
34
Washer (as option)
137793 (2) Full qty
34
Washer (as option)
137797 (2) Full qty
34
Washer (as option)
137794 (2) Full qty
34
Washer (as option)
137795 (2) Full qty
34
Washer
137792 (2) Full qty
34
Washer (as option)
137796 (2) Full qty
35
Washer
106616 (4) Full qty
36
Nut Front Wishbone
New       £ 3.56
148020 (2) Full qty
FS00201n
37
Shock Absorber Bush 12x42x35/46
New       £ 18.14
100809 (2) Full qty
FS00080n
38
Damper
136826 (2) Full qty
38
Rear Shock Absorber Assy F40 - Non Adjustable
Used       £ 3294.50
134228 (2) Full qty
RS00005u
39
Spring
136799 (2) Full qty
39
Rear Suspension Spring F40 (NON ADJUST)
New       £ 764.50
136245 (2) Full qty
RS10442n
40
Cap spring retainer
134186 (2) Full qty
41
Hyperblock
130414 (2) Full qty
41
Shock Mount
New       Price on Enquiry
114812 (2) Full qty
FS10160n
41
Shock Absorber Top Mount 355
New       £ 64.68
114812 (2) Full qty
FS10429n
42
Stud Bolt M8x16 (Shank length 25)
New       Price on Enquiry
13543524 (8) Full qty
GE00055n
43
Washer
12646724 (6) Full qty
44
Washer
114815 (4) Full qty
44
Washer
130413 (4) Full qty
45
Spacer
113113 (2) Full qty
46
Selflocking nut
16104121 (8) Full qty
47
Nut Front Wishbone
New       £ 3.56
148020 (2) Full qty
FS00201n
47
Nyloc Nut 14mm
New       £ 0.22
150238 (2) Full qty
GE00714n
48
Rear Upper Spacer F40
New       Price on Enquiry
138213 (2) Full qty
RS10447n
49
Spacer
138373 (2) Full qty
49
Rear Bottom Spacer F40
New       £ 3294.50
147148 (2) Full qty
RS10446n
50
Boot
138706 (2) Full qty
51
SCREW COLLAR
13001290 (2) Full qty
52
Clamp
13001390 (2) Full qty
53
Support bracket L.H. rear brac…
137743 (1) Full qty
53
Support bracket R.H. rear brac…
137740 (1) Full qty
