Brakes And Clutch Control Pedals

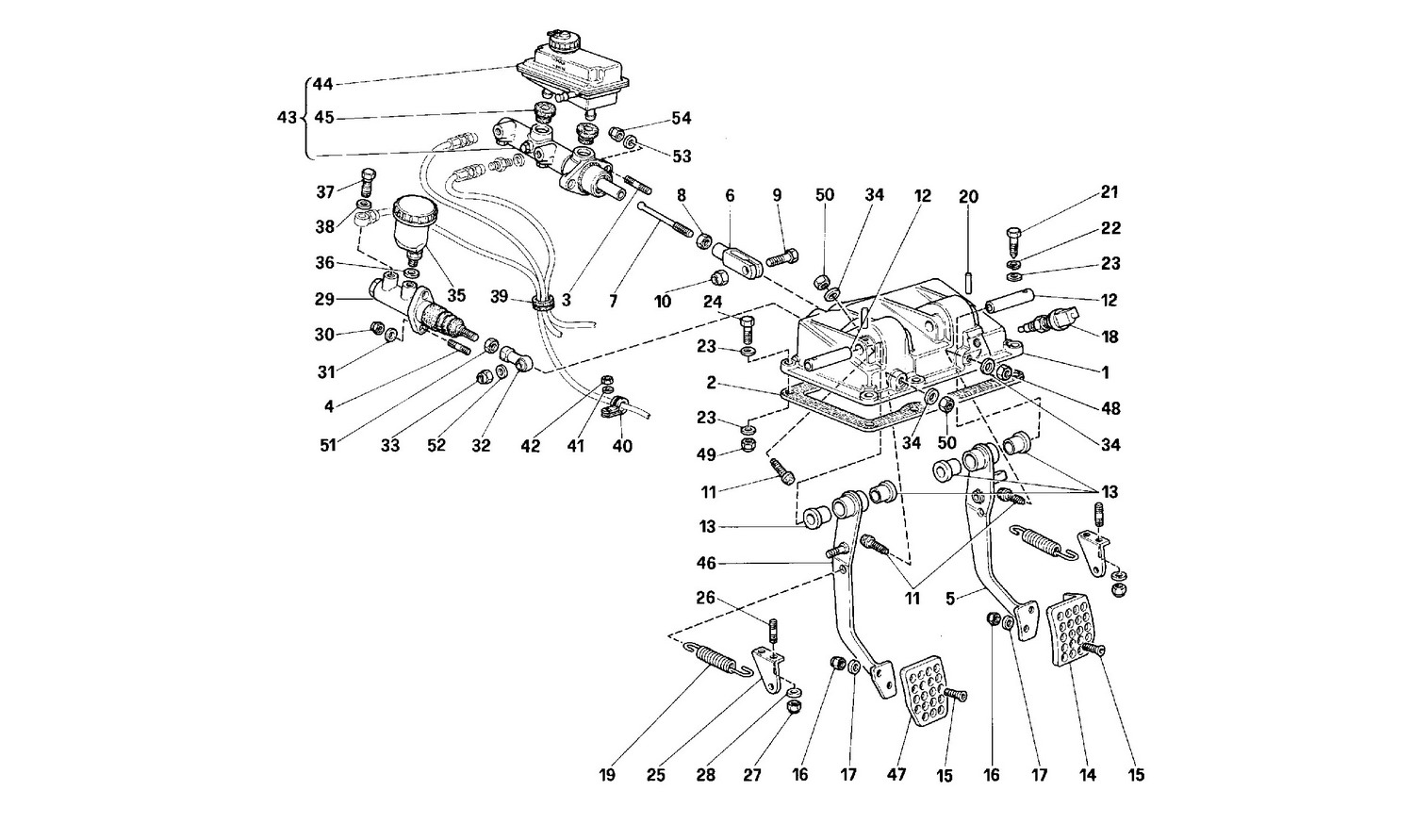

Schematic: Brakes And Clutch Control Pedals
Loc
Part
Cond       Price
1
Support
133344 (1) Full qty
2
Gasket
128627 (1) Full qty
3
Stud
12429621 (2) Full qty
4
New       £ 3.25
13543324 (2) Full qty
EX10823n
5
Brake pedal
133553 (1) Full qty
6
Fork
133393 (1) Full qty
7
Pin
137650 (1) Full qty
8
NUT
16102314 (1) Full qty
9
Screw
137116 (1) Full qty
10
Nut
16104411 (1) Full qty
11
Screw pedal
128620 (3) Full qty
12
Pin
133554 (2) Full qty
13
SELF-LUBRICATING BUSHING
128612 (4) Full qty
14
Plate
128608 (1) Full qty
15
Screw
14441420 (4) Full qty
16
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
17
Washer
12639701 (4) Full qty
18
Brake Light Switch
133555 (1) Full qty
18
New       Price on Enquiry
133555 (1) Full qty
ET02508n
19
Spring pedal
138856 (2) Full qty
20
Lock pin
114623 (2) Full qty
21
Screw
16136021 (3) Full qty
22
Wavy Lock Washer 8mm
127496 (3) Full qty
23
Washer
10519624 (9) Full qty
24
Screw
16044021 (3) Full qty
25
Plate
62431900 (2) Full qty
26
Stud
11001021 (4) Full qty
27
NUT
169180 (4) Full qty
28
Washer
14496301 (4) Full qty
29
Clutch Master Cylinder F40
137544 (1) Full qty
30
Nut
16100821 (2) Full qty
31
Washer
12601379 (2) Full qty
32
Ball joint
123194 (1) Full qty
33
Selflocking nut
16104121 (1) Full qty
34
Flat washer
10519621 (3) Full qty
35
Small tank
135772 (1) Full qty
36
New       Price on Enquiry
10298460 (1) Full qty
EX10416n
37
Hose
136565 (1) Full qty
38
Copper washer
10260160 (1) Full qty
39
Cable ring
10397380 (1) Full qty
40
Small bracket with sheathing
10441590 (1) Full qty
41
WASHER
14496424 (1) Full qty
42
NUT
15896214 (1) Full qty
43
Brake pump
140595 (1) Full qty
43
Brake pump
137651 (1) Full qty
44
Small tank
133559 (1) Full qty
45
New       Price on Enquiry
175189 (2) Full qty
BS00614n
45
New       Price on Enquiry
175189 (2) Full qty
BS00881n
46
Clutch pedal
128596 (1) Full qty
47
Plate clutch pedal
128599 (1) Full qty
48
NUT
16102314 (1) Full qty
49
Nut
16104411 (3) Full qty
50
NUT
16102314 (2) Full qty
51
NUT
16102314 (1) Full qty
52
Flat washer
10519621 (1) Full qty
53
Washer
12601379 (2) Full qty
54
Selflocking nut
16104121 (2) Full qty
