Dashboard And Tunnel

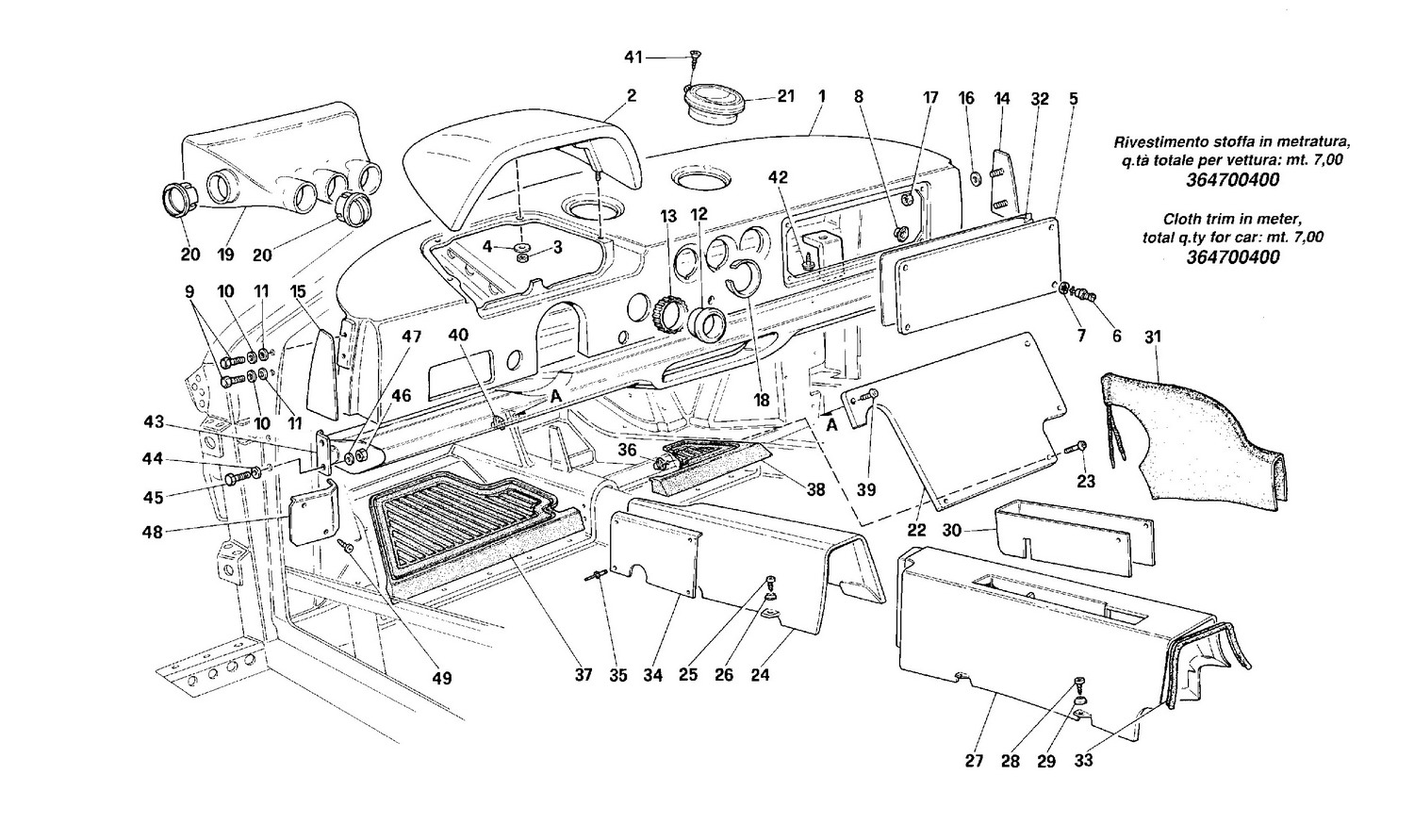

Schematic: Dashboard And Tunnel
Loc
Part
Cond       Price
1
Covering
62502500 (1) Full qty
1
Panel with covering
62565400 (1) Full qty
1
Panel with covering
62743100 (1) Full qty
2
Covering
62641000 (1) Full qty
2
Dash board
62590000 (1) Full qty
3
Nut
10721911 (4) Full qty
4
Washer
12642801 (4) Full qty
5
Covering
62503000 (1) Full qty
5
Lid with covering
62565500 (1) Full qty
6
Pin (62468200 alternatives)
62547200 (4) Full qty
6
Pin
62468200 (4) Full qty
7
Stop ring
62468000 (4) Full qty
8
Pin clip
62467900 (4) Full qty
9
SCREW
10902387 (4) Full qty
10
Washer
12640677 (4) Full qty
11
WASHER
12643778 (4) Full qty
12
Ring nut
62451600 (1) Full qty
13
Ring
62451700 (1) Full qty
14
R.H. moulding with covering
62590100 (1) Full qty
15
L.H. moulding with covering
62590200 (1) Full qty
16
Washer
12624101 (4) Full qty
17
Nut
10794011 (4) Full qty
18
Moulding with covering
70000562 (3) Full qty
19
Conveyor
62420200 (1) Full qty
20
Air opening
60656500 (4) Full qty
21
Air outlet
62509800 (2) Full qty
22
Plate
62385200 (1) Full qty
23
Screw
13274672 (2) Full qty
24
Front tunnel with covering
62553500 (1) Full qty
24
Covering
62497400 (1) Full qty
25
Screw
15908878 (2) Full qty
26
Washer
12611607 (2) Full qty
27
Rear tunnel with covering
62730600 (1) Full qty
27
Rear tunnel with covering
62553400 (1) Full qty
27
Covering
62540100 (1) Full qty
27
Covering
62497300 (1) Full qty
28
Screw
15908478 (4) Full qty
29
Washer
12611607 (4) Full qty
30
Covering
62540200 (1) Full qty
30
Moulding with covering
62568500 (1) Full qty
31
Boot
62526900 (1) Full qty
32
Relays plate
62426000 (1) Full qty
33
Rear sealing cord
62568600 (1) Full qty
34
Shield
62566700 (1) Full qty
35
Rivet
61741600 (4) Full qty
36
BRACKET
62471100 (2) Full qty
37
Carpet
62549900 (1) Full qty
38
Carpet
62576400 (1) Full qty
39
Vite
13276611 (3) Full qty
40
Ball to fix. lifting system
62471200 (3) Full qty
41
Screw
15692178 (6) Full qty
42
Screw
15925901 (2) Full qty
43
Knee-guard with covering
62759000 (1) Full qty
43
Covering
62759100 (1) Full qty
44
Washer
12639721 (4) Full qty
45
SCREW
10902624 (4) Full qty
46
Nut
102741 (4) Full qty
47
Washer
12640677 (4) Full qty
48
R.H. electrical board cover
62758400 (1) Full qty
48
L.H. electrical board cover
62760800 (1) Full qty
49
Screw
13273916 (4) Full qty
