Doors -Sliding Glass Version-

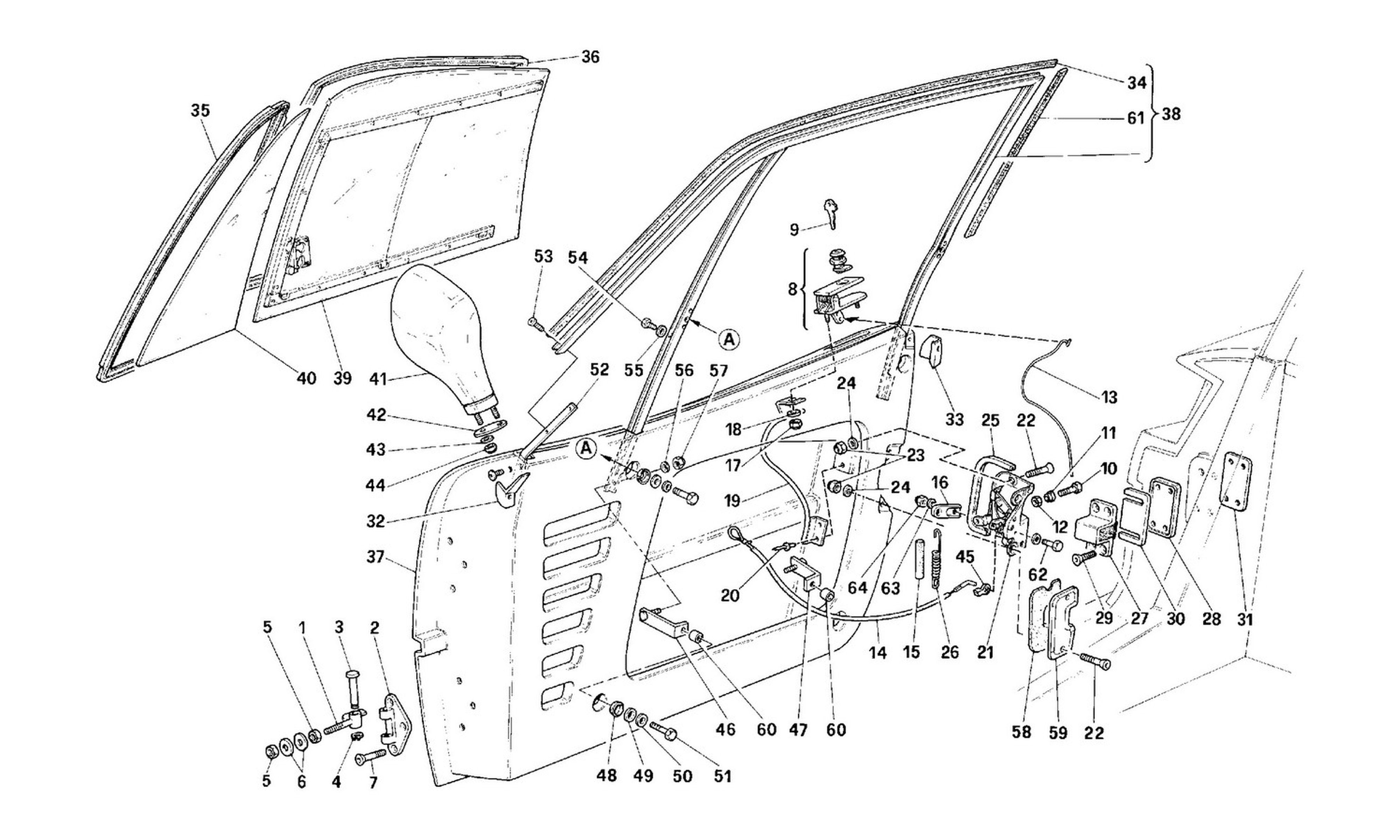

Schematic: Doors -Sliding Glass Version-
Schematic: Doors -Sliding Glass Version-
Loc
Part
Cond       Price
1
Fixed hinge
62951300 (4) Full qty
2
Mobile hinge
62395000 (4) Full qty
3
Pin
62395100 (4) Full qty
4
Snap ring
11087676 (4) Full qty
5
Nut
133988 (8) Full qty
5
Nut M14
10791321 (8) Full qty
6
Shim
112126 (8) Full qty
6
Washer
New       Price on Enquiry
108051 (8) Full qty
AC00492n
7
SCREW
20298303 (12) Full qty
8
Nut
- (2) Full qty
9
Key blank
95401161 (2) Full qty
10
Screw
60088705 (2) Full qty
11
Bushing
20089504 (2) Full qty
12
Nut
102741 (2) Full qty
13
Cable for handle
62495200 (2) Full qty
14
Cable for door handle
62460700 (2) Full qty
15
Pipe
62761400 (2) Full qty
16
Lever
62452200 (2) Full qty
17
NUT
169180 (4) Full qty
18
WASHER
12638124 (4) Full qty
19
L.H. tube
62498500 (1) Full qty
19
R.H. tube
62498400 (1) Full qty
20
Rivet
50209303 (4) Full qty
21
R.H. lock
20170809 (1) Full qty
21
L.H. lock
20170918 (1) Full qty
22
SCREW
20298303 (8) Full qty
23
Nyloc Nut 6 x 1 x 7.6mm
102948 (8) Full qty
24
Washer
12643721 (8) Full qty
25
Gasket
60566200 (2) Full qty
26
Spring
60046000 (2) Full qty
27
LH Lock Striker
New       Price on Enquiry
20019204 (1) Full qty
ET00128n
27
RH Lock Striker
New       £ 71.16
20019105 (1) Full qty
ET02428n
28
Door Stricker Rubber 246/308
New       Price on Enquiry
60602400 (2) Full qty
BW10062n
29
Screw
20287504 (8) Full qty
30
Spacer (Possible mounting)
60163003 (2) Full qty
31
Plate
60085206 (2) Full qty
32
L.H. front moulding
62500700 (1) Full qty
32
R.H. front moulding
62500600 (1) Full qty
33
R.H. rear moulding
62587200 (1) Full qty
33
L.H. rear moulding
62587300 (1) Full qty
34
Gasket
60278504 (2) Full qty
35
R.H. and L.H. front gasket
62489800 (2) Full qty
36
Gasket
62587100 (2) Full qty
37
L.H. door
62598900 (1) Full qty
37
R.H. door
62598800 (1) Full qty
38
R.H. glass frame
70000546 (1) Full qty
38
L.H. glass frame
70000547 (1) Full qty
38
R.H. glass frame
62586600 (1) Full qty
38
LH Glass Frame F40
New       £ 1650.00
62588200 (1) Full qty
BW99374n
39
L.H. side glass
70000543 (1) Full qty
39
R.H. side glass
70000542 (1) Full qty
39
R.H. side glass
62586900 (1) Full qty
39
LH Sliding Perspex Window F40
New       £ 1534.50
62587000 (1) Full qty
GL00322n
40
R.H. front glass
70000544 (1) Full qty
40
L.H. front glass
62395900 (1) Full qty
40
R.H. front glass
62395800 (1) Full qty
40
L.H. front glass
70000545 (1) Full qty
41
R.H. mirror glass
62928300 (1) Full qty
41
R.H. mirror
62470500 (1) Full qty
41
L.H. mirror glass
62928400 (1) Full qty
41
Bi-adhesive for mirror
62928500 (2) Full qty
41
L.H. mirror
62470600 (1) Full qty
42
L.H. and R.H. gasket
70000548 (2) Full qty
43
Washer
12646724 (4) Full qty
44
Nut
16104411 (4) Full qty
45
Spring
40063208 (2) Full qty
46
Front bracket
62587400 (2) Full qty
47
Rear bracket
62587500 (2) Full qty
48
Rubber washer
60657600 (8) Full qty
49
Washer
12643721 (8) Full qty
50
Clutch Bolt Wavy Washer 550/57…
127494 (8) Full qty
51
Screw
10902324 (4) Full qty
51
SCREW -M6 X 14-
10902124 (8) Full qty
52
Front support L.H. frame
62394500 (1) Full qty
52
Front support R.H. frame
62394400 (1) Full qty
53
Screw
20286704 (4) Full qty
54
SCREW -M6 X 14-
10902124 (2) Full qty
55
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
56
Washer
12643721 (4) Full qty
57
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
58
R.H. moulding gasket
62762300 (1) Full qty
58
L.H. moulding gasket
62762200 (1) Full qty
59
L.H. lock moulding
62762000 (1) Full qty
59
R.H. lock moulding
62762100 (1) Full qty
60
Spacer (Possible mounting)
62453800 (4) Full qty
61
Rear gasket
60278405 (2) Full qty
62
SCREW -M6 X 14-
10902124 (2) Full qty
63
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
64
Nut
102741 (2) Full qty
