Timing System - Tappets

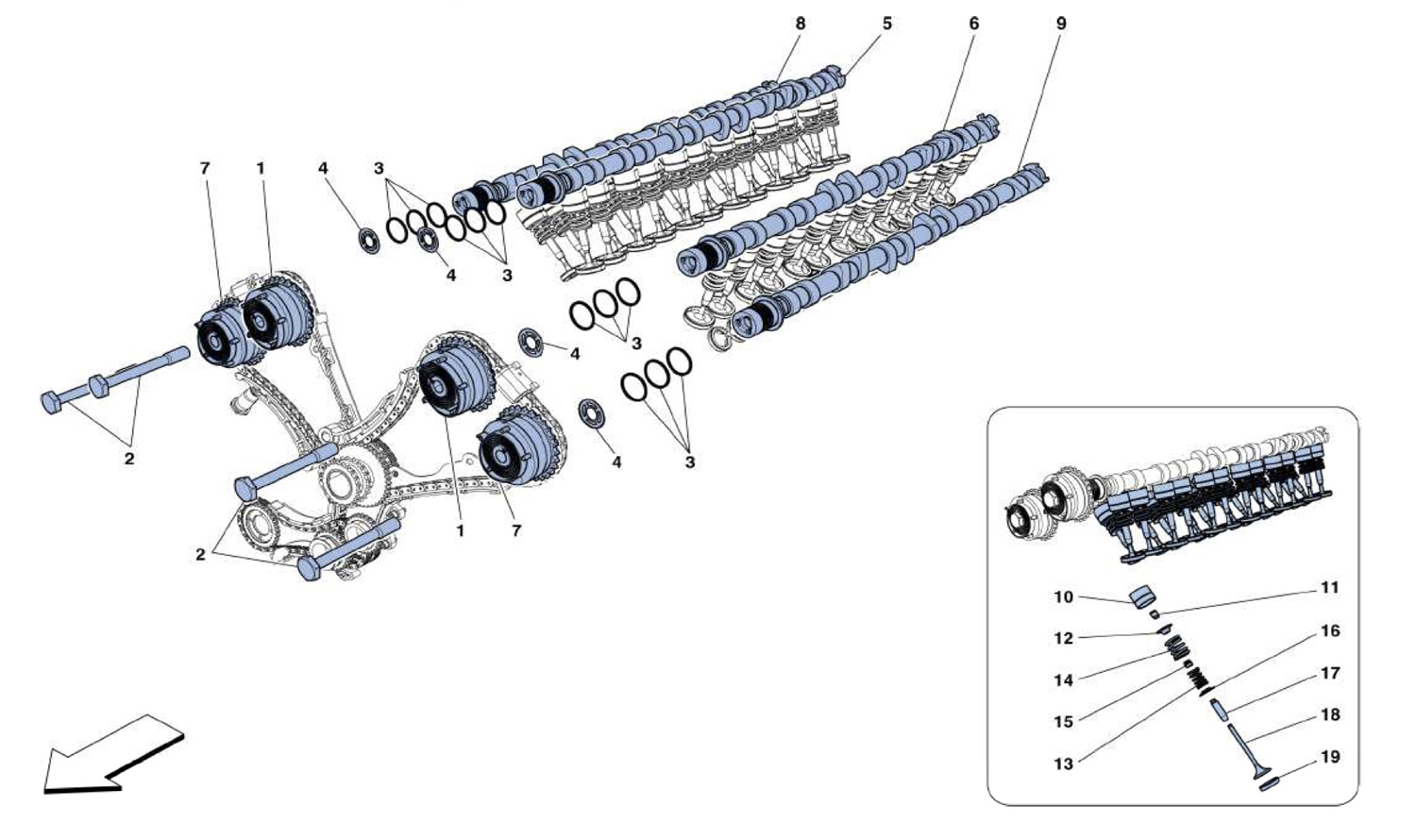

Schematic: Timing System - Tappets
Loc
Part
Cond       Price
1
VARIABLE VALVE TIMING ADJUSTER…
241906 (2) Full qty
2
VARIABLE TIMING ADJUSTER SCREW…
254892 (4) Full qty
3
SEAL RING
197975 (12) Full qty
4
DIAMOND COATED WASHER
240559 (4) Full qty
5
RH INTAKE CAMSHAFT
274309 (1) Full qty
6
LH INTAKE CAMSHAFT
274310 (1) Full qty
7
VARIABLE VALVE TIMING ADJUSTER…
248020 (2) Full qty
8
RH EXHAUST CAMSHAFT
274311 (1) Full qty
9
LH EXHAUST CAMSHAFT
274312 (1) Full qty
10
HYDRAULIC TAPPET
255431 (48) Full qty
11
VALVE SPRING HALF-CONE
179763 (96) Full qty
12
UPPER VALVE SPRING CAP
237390 (48) Full qty
13
INTERNAL VALVE RETURN SPRING
238641 (48) Full qty
14
EXTERNAL VALVE RETURN SPRING
238640 (48) Full qty
15
OIL SEAL
221473 (48) Full qty
16
LOWER VALVE SPRING CAP, INTAKE…
247484 (24) Full qty
16
LOWER VALVE SPRING CAP, EXHAUS…
242574 (24) Full qty
17
VALVE GUIDE
6213498 (48) Full qty
18
INTAKE VALVE
198581 (24) Full qty
18
EXHAUST VALVE
227334 (24) Full qty
19
INTAKE VALVE SEAT
6222847 (24) Full qty
19
EXHAUST VALVE SEAT
6222848 (24) Full qty
