Brake System

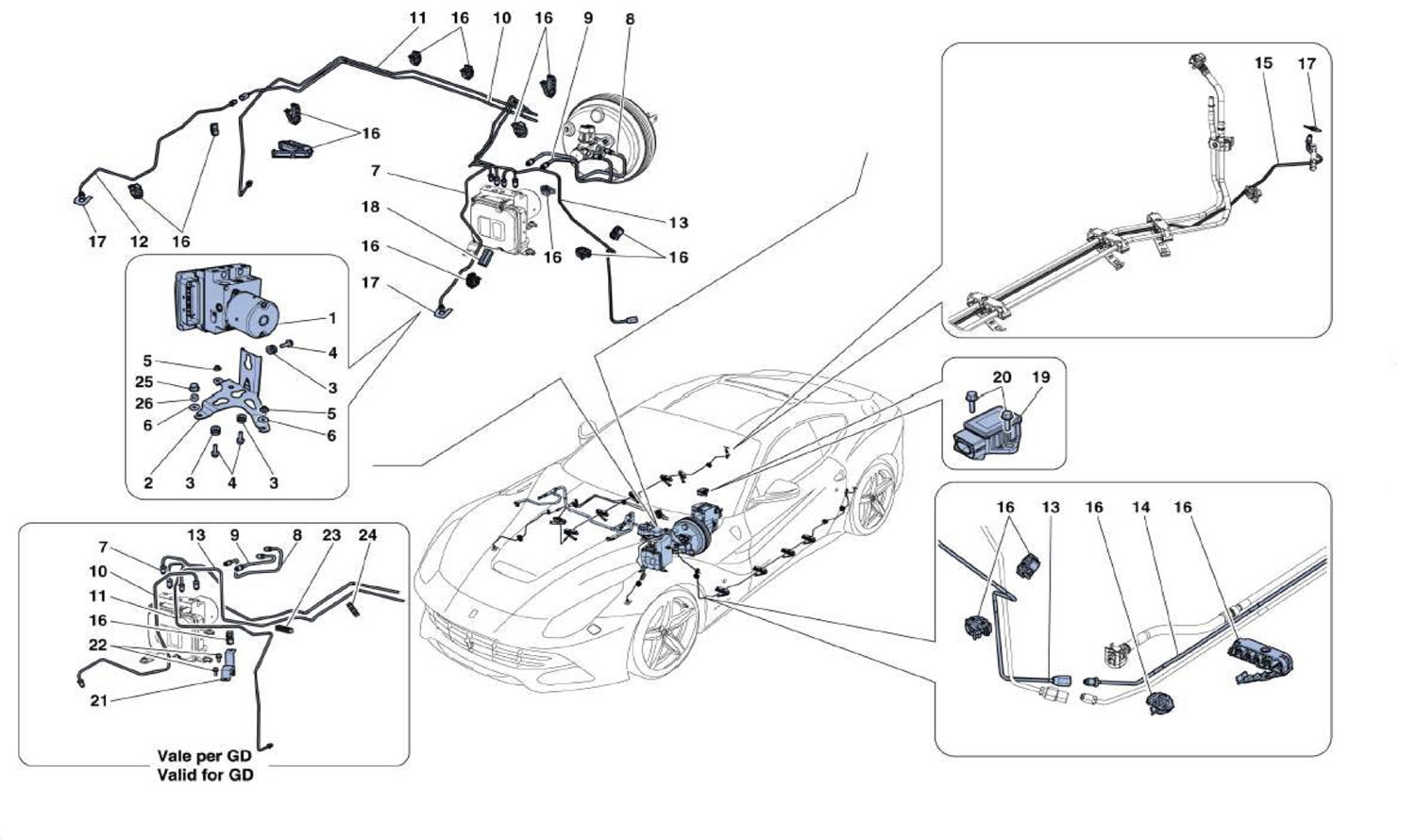

Schematic: Brake System
Loc
Part
Cond       Price
1
HYDRAULIC UNIT
289525 (1) Full qty
2
ECU MOUNTING BRACKET
266675 (1) Full qty
2
ECU MOUNTING BRACKET -Applicab…
287877 (1) Full qty
3
PLUG
232869 (3) Full qty
4
SCREW -M8 X 25-
16287224 (3) Full qty
5
NUT
14039614 (2) Full qty
6
WASHER
12647724 (2) Full qty
7
PIPE FROM UNIT TO LH FRONT WHE…
267734 (1) Full qty
7
PIPE FROM UNIT TO LH FRONT WHE…
287782 (1) Full qty
8
PIPE FROM MASTER CYLINDER TO U…
267735 (1) Full qty
8
PIPE FROM MASTER CYLINDER TO U…
287780 (1) Full qty
9
PIPE FROM MASTER CYLINDER TO U…
275077 (1) Full qty
9
PIPE FROM MASTER CYLINDER TO U…
287781 (1) Full qty
10
PIPE FROM UNIT TO RH FRONT WHE…
284625 (1) Full qty
10
PIPE FROM UNIT TO RH FRONT WHE…
287785 (1) Full qty
11
PIPE FROM UNIT TO LH REAR WHEE…
284626 (1) Full qty
11
PIPE FROM UNIT TO LH REAR WHEE…
287783 (1) Full qty
12
PIPE FROM DISCONNECTOR TO RH F…
275449 (1) Full qty
12
PIPE FROM DISCONNECTER TO RH F…
287846 (1) Full qty
13
PIPE FROM UNIT TO LH REAR WHEE…
284623 (1) Full qty
13
PIPE FROM UNIT TO LH REAR WHEE…
287784 (1) Full qty
14
PIPE FROM DISCONNECTOR TO LH R…
284624 (1) Full qty
15
PIPE FROM DISCONNECTOR TO RH R…
284627 (1) Full qty
16
CLIP -1 compartment-
234284 (2) Full qty
16
CLIP
234285 (9) Full qty
16
CLIP -3 compartments-
284622 (2) Full qty
16
CLIP
234286 (2) Full qty
16
CLIP -5 compartments-
241118 (10) Full qty
16
CLIP
249782 (2) Full qty
17
Front Brake Calipar - Clamp
116374 (4) Full qty
18
RUBBER RETAINER
262737 (1) Full qty
19
YAW SENSOR -Applicable for GD-…
317783 (1) Full qty
20
SCREW -No longer supplied- -Re…
16286124 (2) Full qty
21
BRAKE PIPE MOUNTING BRACKET -A…
296332 (1) Full qty
22
SCREW -M6 X 14-
231616 (2) Full qty
23
CLIP -Applicable for GD-
291251 (1) Full qty
24
CLIP -Applicable for GD-
291250 (1) Full qty
25
Cap nut
14054511 (1) Full qty
26
SHIM
13604015 (1) Full qty
