Rear Bumper

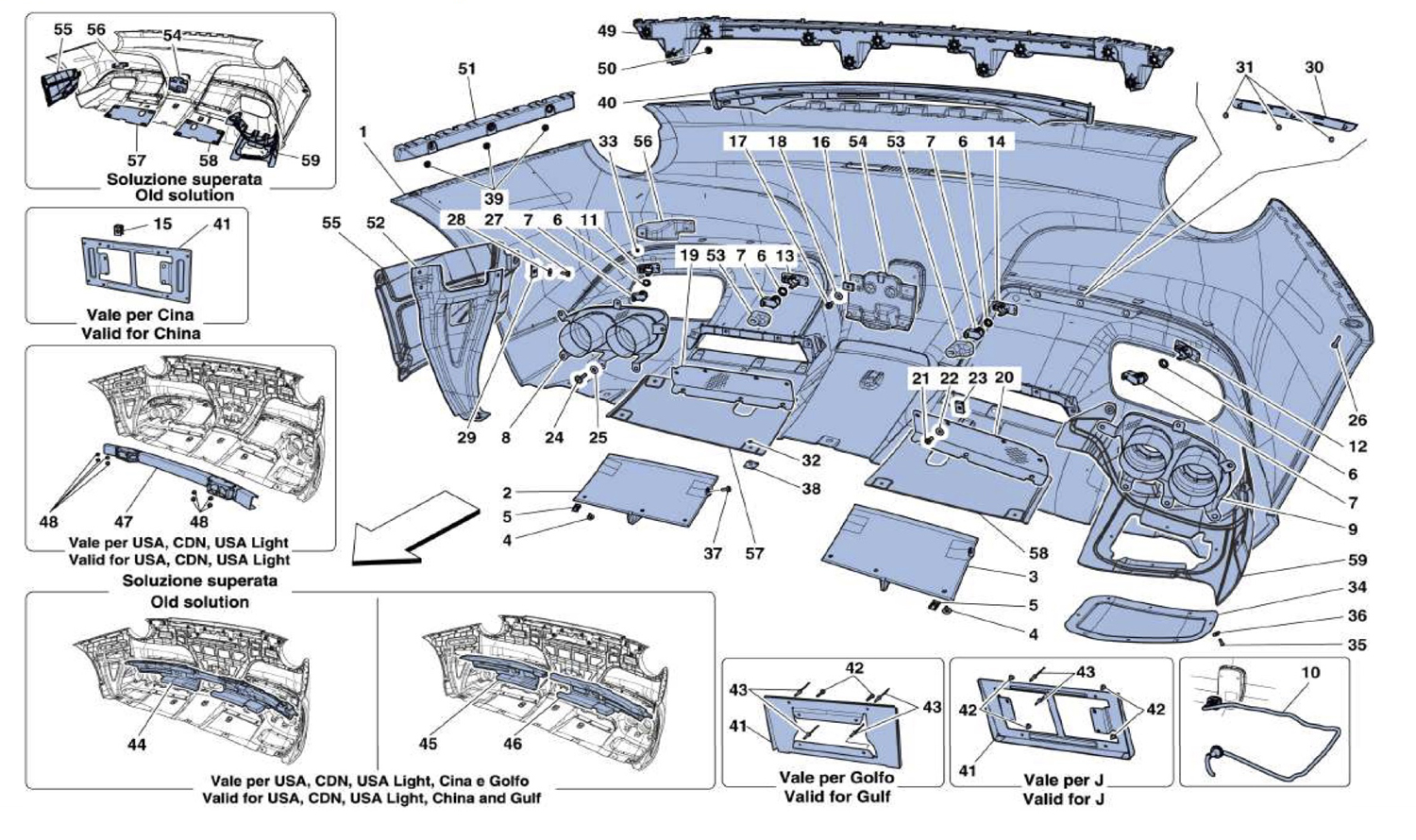

Schematic: Rear Bumper
Loc
Part
Cond       Price
1
REAR BUMPER -Not for USA
85133210 (1) Full qty
1
REAR BUMPER -Applicable for US…
85531710 (1) Full qty
2
RH WING -Carbon version-
84693700 (1) Full qty
2
New       £ 238.32
84360200 (1) Full qty
BW99416n
3
LH WING
84360300 (1) Full qty
3
LH WING -Carbon version-
84693800 (1) Full qty
4
New       £ 2.19
256490 (6) Full qty
BW99303n
5
BRACKET WITH COLLAR -Version w…
66927700 (6) Full qty
5
PLATE
84583500 (6) Full qty
6
SILICONE RING
81544800 (4) Full qty
7
PARKING SENSOR
239082 (4) Full qty
8
GRILLE WITH RH TAILPIPES -Appl…
84359400 (1) Full qty
8
GRILLE WITH RH TAILPIPES -Appl…
84359400 (1) Full qty
8
GRILLE WITH RH TAILPIPES -Appl…
85441200 (1) Full qty
9
GRILLE WITH LH TAILPIPES -Not …
84359500 (1) Full qty
9
GRILLE WITH LH TAILPIPES -Not …
84359500 (1) Full qty
9
GRILLE WITH LH TAILPIPES -Appl…
85441300 (1) Full qty
10
PARKING CAMERA
266790 (1) Full qty
11
RH EXTERNAL MOUNTING
84359100 (1) Full qty
12
LH EXTERNAL MOUNTING
84359300 (1) Full qty
13
RH INTERNAL MOUNTING
84501900 (1) Full qty
14
LH INTERNAL MOUNTING
84502100 (1) Full qty
15
CLIP
62766300 (4) Full qty
16
BRACKET WITH COLLAR -Version w…
66927700 (4) Full qty
16
PLATE
84583500 (4) Full qty
17
SCREW -M5 X 12- -Applicable up…
13274077 (4) Full qty
17
SCREW -M5 X 16- -Applicable fr…
13274217 (4) Full qty
18
WASHER
12638178 (4) Full qty
19
RH LOWER DIFFUSER GRILLE
84387800 (1) Full qty
20
LH LOWER DIFFUSER GRILLE
84387900 (1) Full qty
21
SCREW -M5 X 12- -Applicable up…
13274077 (8) Full qty
21
SCREW -M5 X 16- -Applicable fr…
13274217 (8) Full qty
22
WASHER
12638178 (8) Full qty
23
BRACKET WITH COLLAR -Version w…
66927700 (8) Full qty
23
PLATE
84583500 (8) Full qty
24
SCREW
65864100 (12) Full qty
24
SCREW
66294400 (12) Full qty
25
WASHER
81078500 (12) Full qty
26
SCREW -No longer supplied- -Re…
81290900 (2) Full qty
27
SCREW -M5 X 12- -Applicable up…
13274077 (8) Full qty
27
SCREW -M5 X 16- -Applicable fr…
13274217 (8) Full qty
28
WASHER
12638178 (8) Full qty
29
BRACKET WITH COLLAR -Version w…
66927700 (8) Full qty
29
PLATE
84583500 (8) Full qty
30
LH REFLECTOR
84806900 (1) Full qty
30
RH REFLECTOR
84806800 (1) Full qty
31
WASHER FOR PIN
84784600 (6) Full qty
32
PLATE
14227776 (8) Full qty
33
PLATE
14227776 (4) Full qty
34
LH HEAT VENT GRILLE
84434800 (1) Full qty
34
RH HEAT VENT GRILLE
84434700 (1) Full qty
35
RIVET
14641593 (16) Full qty
36
Washer
12642801 (16) Full qty
37
SCREW -M4 X 13- -Applicable up…
239925 (4) Full qty
37
SCREW -M4 X 14- -Applicable fr…
13272117 (4) Full qty
38
HEAT SHIELD MOUNT
85635800 (8) Full qty
39
NUT
13046014 (6) Full qty
40
UPPER REAR BUMPER TRIM STRIP
84905900 (1) Full qty
41
REAR LICENSE PLATE HOLDER -Not…
85158800 (1) Full qty
41
REAR LICENSE PLATE HOLDER -App…
85452200 (1) Full qty
42
SCREW -Applicable for J-
16088570 (2) Full qty
42
SCREW -Applicable for J-
16088570 (4) Full qty
43
RIVET -Applicable for USA, CDN…
14415690 (4) Full qty
43
RIVET -Not for UAE- -Applicabl…
14296196 (4) Full qty
43
RIVET -Applicable for USA, CDN…
14415690 (4) Full qty
44
REAR BUMPER IMPACT ABSORBER -R…
84648600 (1) Full qty
45
RH IMPACT ABSORBER -Applicable…
85479500 (1) Full qty
46
LH IMPACT ABSORBER -Applicable…
85479600 (1) Full qty
47
CRASH-BOX CROSS MEMBER -Applic…
84977600 (1) Full qty
48
NUT -Applicable for USA
13046214 (8) Full qty
49
CENTRE MOUNT FOR REAR BUMPER
84360600 (1) Full qty
50
NUT
13046014 (12) Full qty
51
RH LATERAL MOUNT
84360700 (1) Full qty
51
LH LATERAL MOUNT
84360800 (1) Full qty
52
RH FASTENER BRACKET FOR REAR B…
84823700 (1) Full qty
52
LH FASTENER BRACKET FOR REAR B…
84823800 (1) Full qty
53
CENTRE HEAT SHIELD -Applicable…
85309700 (2) Full qty
53
CENTRE HEAT SHIELD -Applicable…
85309700 (2) Full qty
54
REAR FOG LIGHT HEAT SHIELD -Ap…
85652600 (1) Full qty
54
REAR FOG LIGHT HEAT SHIELD -Ap…
85652600 (1) Full qty
55
RH LATERAL HEAT SHIELD -Applic…
85601000 (1) Full qty
55
RH LATERAL HEAT SHIELD -Applic…
85601000 (1) Full qty
55
LH LATERAL HEAT SHIELD -Applic…
85601100 (1) Full qty
55
LH LATERAL HEAT SHIELD -Applic…
85601100 (1) Full qty
56
OUTER RH SENSOR HEAT SHIELD -A…
85652700 (1) Full qty
56
OUTER RH SENSOR HEAT SHIELD -A…
85652700 (1) Full qty
56
OUTER LH SENSOR HEAT SHIELD -A…
85652800 (1) Full qty
56
OUTER LH SENSOR HEAT SHIELD -A…
85652800 (1) Full qty
57
RH HEAT SHIELD -Applicable fro…
85600700 (1) Full qty
57
RH HEAT SHIELD -Applicable fro…
85600700 (1) Full qty
58
LH HEAT SHIELD -Applicable fro…
85600600 (1) Full qty
58
LH HEAT SHIELD -Applicable fro…
85600600 (1) Full qty
59
LH INNER HEAT SHIELD -Applicab…
85600900 (1) Full qty
59
LH INNER HEAT SHIELD -Applicab…
85600900 (1) Full qty
59
LH INNER HEAT SHIELD -Applicab…
85600900 (1) Full qty
59
RH INNER HEAT SHIELD -Applicab…
85600800 (1) Full qty
59
RH INNER HEAT SHIELD -Applicab…
85600800 (1) Full qty
59
RH INNER HEAT SHIELD -Applicab…
85600800 (1) Full qty
