Chassis Completion

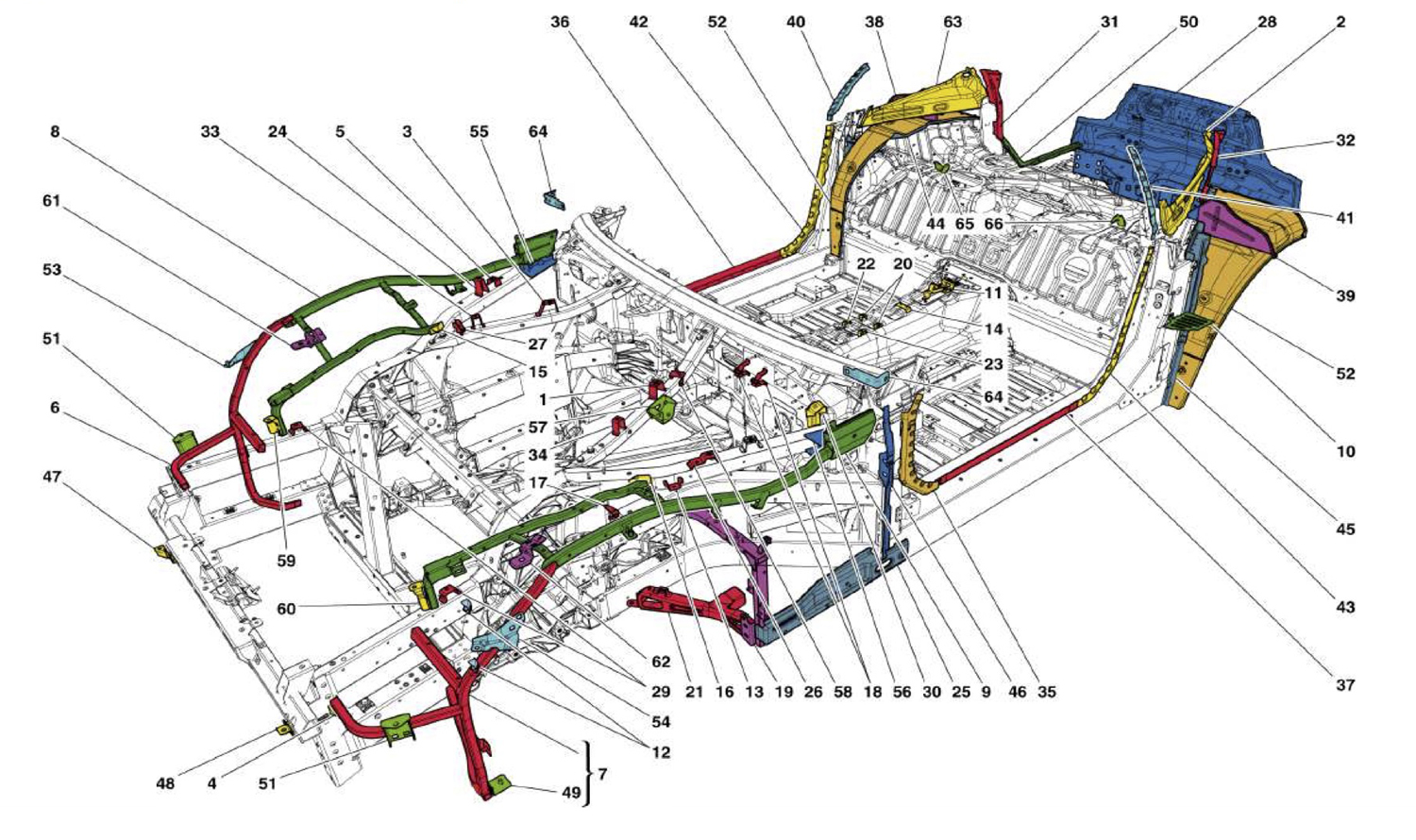

Schematic: Chassis Completion
Schematic: Chassis Completion
Loc
Part
Cond       Price
1
INTERNAL LH UNDERWINDSCREEN TR…
278365 (1) Full qty
2
LH LATERAL SUBSTRUCTURE
84643700 (1) Full qty
3
INTERNAL RH UNDERWINDSCREEN TR…
278395 (1) Full qty
4
INTERNAL FRONT CONNECTOR ELEME…
83342500 (2) Full qty
5
EXTERNAL RH UNDERWINDSCREEN TR…
278396 (1) Full qty
6
FRONT TRELLIS FOR RH HEADLIGHT…
84232600 (1) Full qty
7
FRONT TRELLIS FOR LH HEADLIGHT…
84232700 (1) Full qty
8
FRONT RH FENDER TRELLIS
84233000 (1) Full qty
9
FRONT LH FENDER TRELLIS
84233100 (1) Full qty
10
PARTITION ON WHEELHOUSE
84573000 (2) Full qty
11
REAR BRACKET FOR REAR FASTENER…
286416 (1) Full qty
12
FRONT WHEEL BAY SHIELD FASTENE…
271344 (4) Full qty
13
SECONDARY AIR SYSTEM PIPE FAST…
279847 (1) Full qty
14
FRONT BRACKET FOR FRONT FASTEN…
286417 (1) Full qty
15
MOUNTING FOR INTERNAL RH FRONT…
83557100 (1) Full qty
16
MOUNTING FOR INTERNAL LH FRONT…
83557200 (1) Full qty
17
RH REAR WHEEL BAY SHIELD FASTE…
271348 (1) Full qty
17
LH REAR WHEEL BAY SHIELD FASTE…
271346 (1) Full qty
18
FUEL PIPE FASTENER BRACKET
270773 (2) Full qty
19
RH TRELLIS PILLAR -Not for GD-…
84137000 (1) Full qty
19
RH TRELLIS PILLAR -Applicable …
85147900 (1) Full qty
19
LH TRELLIS PILLAR
83450100 (1) Full qty
19
LH TRELLIS PILLAR -Not for GD-…
85097800 (1) Full qty
19
LH TRELLIS PILLAR -Applicable …
85148200 (1) Full qty
20
REAR BRACKET FOR FRONT FASTENE…
286418 (2) Full qty
21
RH REAR TRELLIS CROSS-MEMBER -…
83783200 (1) Full qty
21
LH REAR TRELLIS CROSS-MEMBER -…
83783400 (1) Full qty
22
RH BRACKET FOR FRONT FASTENER
286420 (1) Full qty
23
LH BRACKET FOR FRONT FASTENER
286419 (1) Full qty
24
REAR FASTENER BRACKET FOR RH E…
288328 (1) Full qty
25
LOWER FASTENER BEAM FOR RH FEN…
83033900 (1) Full qty
25
LOWER FASTENER BEAM FOR LH FEN…
83034000 (1) Full qty
26
LH ENGINE COVER BRACKET
288606 (1) Full qty
27
BLOW-BY PIPE FASTENER BRACKET
270772 (1) Full qty
28
COMPL. BACK PANEL -Not for CIN…
84185600 (1) Full qty
28
COMPL. BACK PANEL -Applicable …
84977200 (1) Full qty
29
INJECTION CABLE FASTENER BRACK…
284573 (2) Full qty
30
LH WINDSCREEN WIPER FASTENER B…
84979600 (1) Full qty
30
RH WINDSCREEN WIPER FASTENER B…
84859500 (1) Full qty
31
REAR ELEMENT OF RH LATERAL SUB…
84220300 (1) Full qty
32
REAR ELEMENT OF LH LATERAL SUB…
85077600 (1) Full qty
33
FASTENER BRACKET FOR RH ENGINE…
288334 (1) Full qty
34
FASTENER BRACKET FOR LH ENGINE…
288652 (1) Full qty
35
PROFILE LINKING RH PILLAR WITH…
84280900 (1) Full qty
35
PROFILE LINKING LH PILLAR WITH…
84281000 (1) Full qty
36
LOWER RH DOOR SEAL PROFILE
83861400 (1) Full qty
37
LOWER LH DOOR SEAL PROFILE
83861500 (1) Full qty
38
RH EXTERNAL LATERAL SHIELD
84221100 (1) Full qty
39
LH EXTERNAL LATERAL SHIELD
84221200 (1) Full qty
40
UPPER RH PILLAR CONNECTOR PROF…
84221900 (1) Full qty
41
UPPER LH PILLAR CONNECTOR PROF…
84222000 (1) Full qty
42
PROFILE LINKING RH PILLAR WITH…
84221700 (1) Full qty
43
PROFILE LINKING LH PILLAR WITH…
84221800 (1) Full qty
44
RH FRONT FLANK SUBSTRUCTURE
84279800 (1) Full qty
45
LH FRONT FLANK SUBSTRUCTURE
84279900 (1) Full qty
46
RH OUTER PILLAR CONNECTOR PROF…
88504400 (1) Full qty
46
LH OUTER PILLAR CONNECTOR PROF…
88504300 (1) Full qty
47
FRONT FASTENER BRACKET FOR RH …
84948700 (1) Full qty
48
FRONT FASTENER BRACKET FOR LH …
84948800 (1) Full qty
49
LOWER MOUNTING BRACKET FOR FRO…
84952500 (2) Full qty
50
RH LOWER LATERAL PROFILE
84634800 (1) Full qty
50
LH LOWER LATERAL PROFILE
84634900 (1) Full qty
51
OUTER LATERAL FASTENER BRACKET…
84948900 (2) Full qty
52
RH REAR WHEELHOUSE
84220500 (1) Full qty
52
LH REAR WHEELHOUSE
84220600 (1) Full qty
53
FENDER MOUNTING BRACKET ON RH …
84960700 (1) Full qty
54
FENDER MOUNTING BRACKET ON LH …
84960800 (1) Full qty
55
RH LID BRACKET MOUNTING BRACKE…
84352300 (1) Full qty
56
LH LID BRACKET MOUNTING BRACKE…
84352400 (1) Full qty
57
WINDSCREEN WIPER AND BRAKE FLU…
275640 (1) Full qty
57
WINDSCREEN WIPER AND BRAKE FLU…
85538000 (1) Full qty
57
WINDSCREEN WIPER AND BRAKE FLU…
85538000 (1) Full qty
58
REAR WINDSCREEN WIPER MOUNTING…
277276 (1) Full qty
58
REAR WINDSCREEN WIPER MOUNTING…
84859600 (1) Full qty
59
INNER LATERAL FASTENER BRACKET…
84949700 (1) Full qty
60
INNER LATERAL FASTENER BRACKET…
84949800 (1) Full qty
61
UPPER FASTENER BRACKET FOR RH …
84398800 (1) Full qty
62
UPPER FASTENER BRACKET FOR LH …
84398900 (1) Full qty
63
RH LATERAL SUBSTRUCTURE
84642700 (1) Full qty
64
BRACKET
85091400 (2) Full qty
65
LH HOOK FASTENER BRACKET
287660 (1) Full qty
66
RH HOOK FASTENER BRACKET
287670 (1) Full qty
