Rear Bumper And Flat Floor Pan

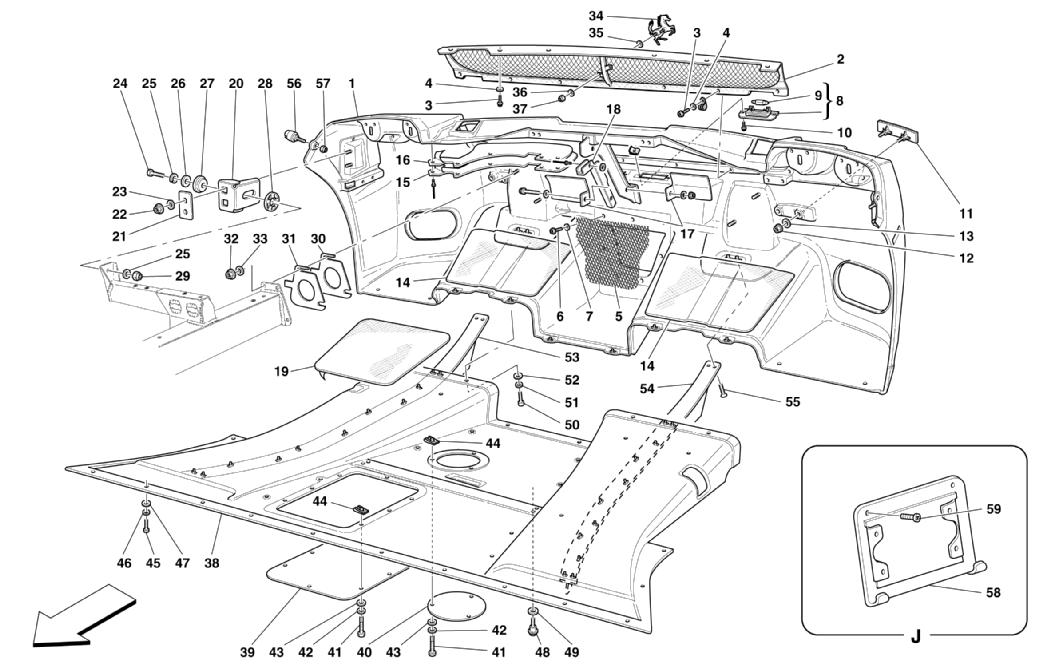

Schematic: Rear Bumper And Flat Floor Pan
Loc
Part
Cond       Price
1
COMPLETE REAR BUMPER
66530910 (1) Full qty
1
COMPLETE REAR BUMPER
66955810 (1) Full qty
1
COMPLETE REAR BUMPER
67634910 (1) Full qty
2
AIR OUTLET GRILLE
66925600 (1) Full qty
3
SCREW -M5 X 12-
65366700 (12) Full qty
3
SCREW -M5 X 16-
16285127 (1) Full qty
3
New       £ 1.34
169814 (12) Full qty
BW99327n
4
WASHER
166467 (13) Full qty
5
LOWER CENTER GRILLE
66927600 (1) Full qty
6
SCREW -M5 X 12-
65366700 (7) Full qty
7
WASHER
166467 (7) Full qty
8
New       Price on Enquiry
186180 (2) Full qty
ET02468n
8
Used       Price on Enquiry
186180 (2) Full qty
ET02468u
9
12V-5W lamp
10857790 (2) Full qty
10
SCREW
15644175 (4) Full qty
11
L.H. REFLECTOR
67362000 (1) Full qty
11
R.H. REFLECTOR
67362100 (1) Full qty
12
NUT
13046011 (4) Full qty
13
WASHER -No longer supplied-
12620374 (4) Full qty
14
INSULATION
67380200 (2) Full qty
15
BUMPER COVER
67414200 (2) Full qty
16
HEAT SHIELD
67414100 (2) Full qty
17
NUMBER PLATE LIGHTS SHIELD
67414300 (1) Full qty
18
CENTRAL SUPPORT SHIELD
67414400 (1) Full qty
19
INSULATION
67380200 (2) Full qty
20
SIDE BRACKET
62973000 (2) Full qty
21
PLATE
62126600 (2) Full qty
22
NUT
13046314 (4) Full qty
23
WASHER
12646824 (4) Full qty
24
SCREW
11307024 (2) Full qty
25
Washer
12646801 (4) Full qty
26
Washer
127497 (2) Full qty
27
EXTERNAL SMALL BLOCK
62128200 (2) Full qty
28
INTERNAL SMALL BLOCK
62128300 (2) Full qty
29
NUT
104114 (2) Full qty
30
THICKNESS
67192000 (8) Full qty
31
THICKNESS
67196900 (1) Full qty
32
NUT
13046314 (4) Full qty
33
WASHER
12646824 (4) Full qty
34
New       Price on Enquiry
60032109 (1) Full qty
ET25153n
35
Gasket
60995100 (1) Full qty
36
Washer
14496101 (1) Full qty
37
Nut
61002200 (1) Full qty
38
REAR UNDER THE BODY SHELL SHIE…
66531100 (1) Full qty
39
COVER FOR CHANGE OIL
66570300 (1) Full qty
40
COVER INSPECTION TRANSMISSION
66570200 (1) Full qty
41
SCREW
14742224 (11) Full qty
42
WASHER
12620474 (11) Full qty
43
WASHER
14498804 (11) Full qty
44
CLIP
62766300 (11) Full qty
45
SCREW
10902224 (22) Full qty
46
New       Price on Enquiry
12601174 (22) Full qty
ST00358n
47
WASHER
12638124 (22) Full qty
48
SCREW
66806900 (4) Full qty
49
New       £ 0.12
12601474 (4) Full qty
CC11464n
49
New       Price on Enquiry
12601474 (4) Full qty
CC11574n
50
SCREW
14304224 (6) Full qty
51
New       Price on Enquiry
12601174 (6) Full qty
ST00358n
52
WASHER
12638124 (6) Full qty
53
R.H. VERTICAL FIN
66569700 (1) Full qty
54
L.H. VERTICAL FIN
66569600 (1) Full qty
55
SCREW
14440724 (26) Full qty
56
PAD
67204600 (2) Full qty
57
NUT
13046124 (2) Full qty
58
REAR PLATE FRAME
67740200 (1) Full qty
59
SCREW
14072614 (4) Full qty
