Rear Frame

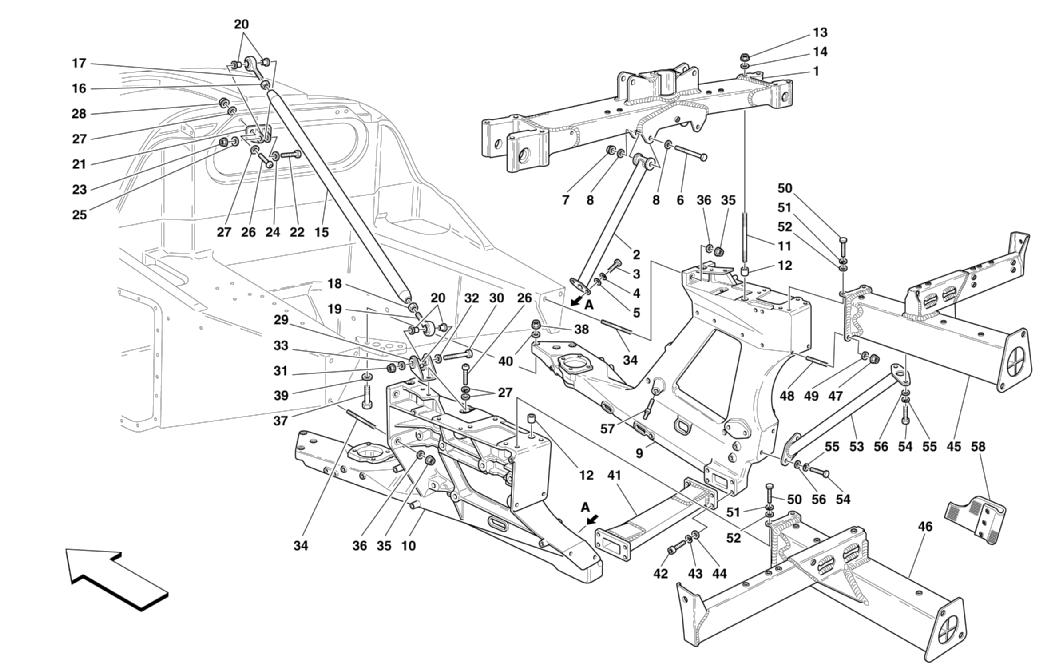

Schematic: Rear Frame
Schematic: Rear Frame
Loc
Part
Cond       Price
1
UPPER CROSS MEMBER
66761700 (1) Full qty
2
L.H. TRANSVERSE SPRAG
66846900 (1) Full qty
2
R.H. TRANSVERSE SPRAG
66846800 (1) Full qty
3
SCREW
16043424 (4) Full qty
4
WASHER
14496524 (4) Full qty
5
Wavy Lock Washer 8mm
127496 (4) Full qty
6
Exhaust Clamp Bolt 430
16044524 (2) Full qty
7
NUT
177778 (2) Full qty
8
WASHER
14496524 (4) Full qty
9
R.H. FUSION FOR SUSPENSION CON…
186312 (1) Full qty
10
L.H. FUSION FOR SUSPENSION CON…
186313 (1) Full qty
11
STUD
13547724 (8) Full qty
12
CENTERING DOWEL
160971 (2) Full qty
13
NUT
133216 (8) Full qty
14
WASHER
14496624 (8) Full qty
15
SPRAG
67370700 (2) Full qty
16
NUT
10717377 (2) Full qty
17
BALL JOINT
148768 (2) Full qty
18
L.H. THREADED NUT
67592600 (2) Full qty
19
BALL JOINT
148769 (2) Full qty
20
BUSHING
66649100 (8) Full qty
21
FORK CONNECTION SPRAG
66650600 (2) Full qty
22
SCREW
66650700 (2) Full qty
23
NUT
133216 (2) Full qty
24
WASHER
14496624 (2) Full qty
25
WASHER
12638624 (2) Full qty
26
SCREW
67254400 (8) Full qty
27
WASHER
12638578 (12) Full qty
28
NUT
177778 (4) Full qty
29
COMPLETE FORK CONNECTION SPRAG…
66647200 (2) Full qty
30
SCREW
66649300 (2) Full qty
31
NUT
133216 (2) Full qty
32
WASHER
14496624 (2) Full qty
33
WASHER
12638624 (2) Full qty
34
STUD
13546635 (6) Full qty
35
NUT
133216 (6) Full qty
36
WASHER
12638624 (6) Full qty
37
SCREW
15541124 (6) Full qty
38
NUT
191959 (6) Full qty
39
WASHER
14496724 (6) Full qty
40
WASHER
14499624 (6) Full qty
41
LOWER CROSS MEMBER
67089600 (1) Full qty
42
SCREW
14306374 (8) Full qty
43
WASHER
14499424 (8) Full qty
44
Wavy Lock Washer 8mm
127496 (8) Full qty
45
R.H. REAR FRAME
66586800 (1) Full qty
46
L.H. REAR FRAME
66586700 (1) Full qty
47
NUT
177778 (4) Full qty
48
Exhaust Stud 355
New       £ 3.25
13543324 (4) Full qty
EX10823n
49
WASHER
14496524 (4) Full qty
50
Screw 8x25
16043624 (4) Full qty
51
WASHER
14496524 (4) Full qty
52
Wavy Lock Washer 8mm
127496 (4) Full qty
53
R.H. LONGITUDINAL SPRAG
66847400 (1) Full qty
53
L.H. LONGITUDINAL SPRAG
66847500 (1) Full qty
54
SCREW
16043424 (8) Full qty
55
WASHER
14496524 (8) Full qty
56
Wavy Lock Washer 8mm
127496 (8) Full qty
57
STUD
191481 (2) Full qty
58
SHIELD
204065 (1) Full qty
