Brake System -Not For Rhd

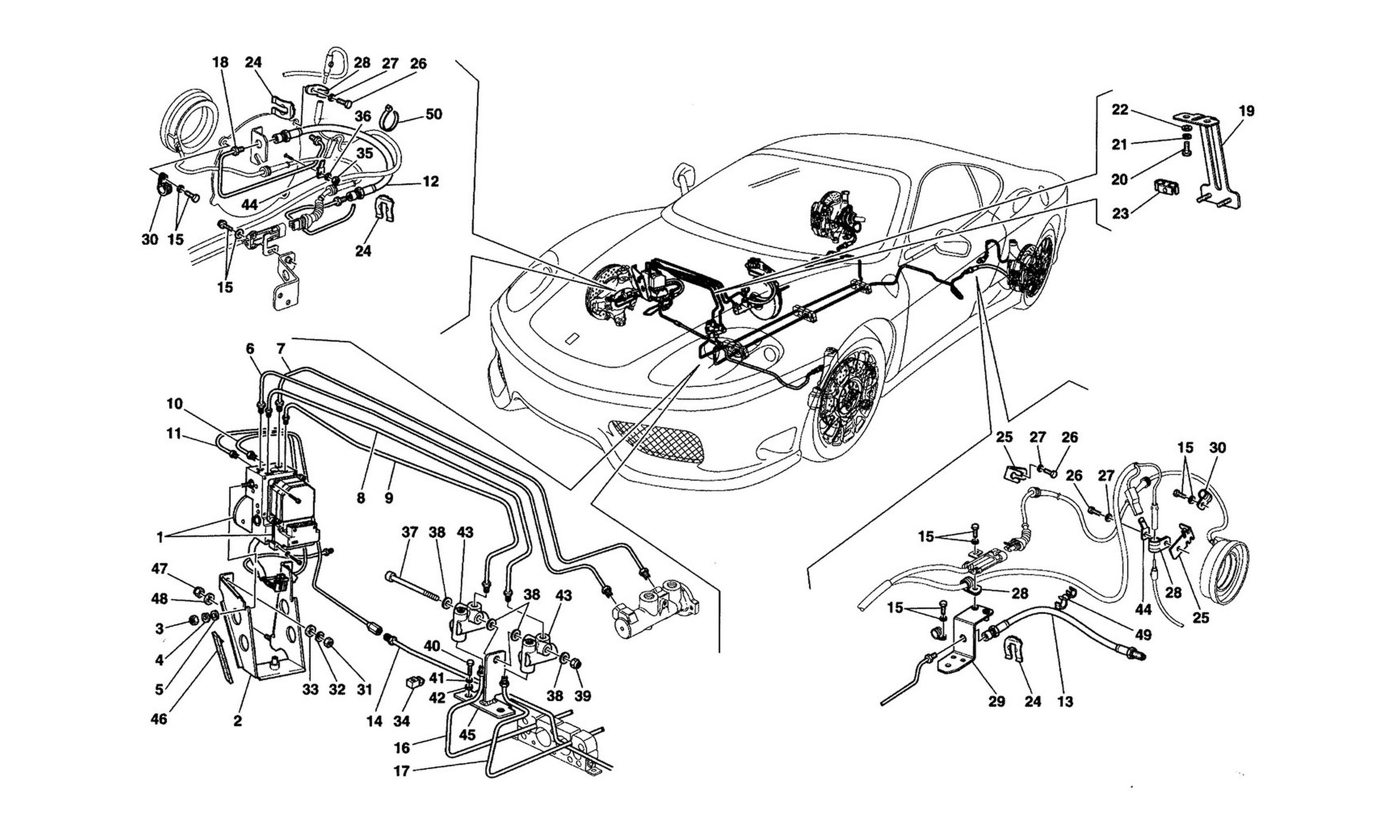

Schematic: Brake System -Not For Rhd
Schematic: Brake System -Not For Rhd
Loc
Part
Cond       Price
1
ABS/ASR HYDRAULIC CONTROL ST…
182535 (1) Full qty
2
CONTROL STATION SUPPORTING BRA…
179412 (1) Full qty
3
NUT
16100814 (2) Full qty
4
Wavy Lock Washer 8mm
127496 (2) Full qty
5
WASHER
12638524 (2) Full qty
6
BRAKE PIPE FROM FRONT PUMP TO …
198633 (1) Full qty
6
BRAKE PIPE FROM FRONT PUMP TO …
213691 (1) Full qty
7
BRAKE PIPE FROM REAR PUMP TO C…
198632 (1) Full qty
7
BRAKE PIPE FROM REAR PUMP TO C…
213690 (1) Full qty
8
PIPE FROM CONTROL STATION TO L…
196426 (1) Full qty
8
PIPE FROM CONTROL STATION TO L…
213693 (1) Full qty
9
PIPE FROM CONTROL STATION TO R…
196429 (1) Full qty
9
PIPE FROM CONTROL STATION TO R…
213692 (1) Full qty
10
PIPE FROM CONTROL STATION TO I…
213653 (1) Full qty
10
PIPE FROM CONTROL STATION TO I…
178463 (1) Full qty
11
PIPE FROM CONTROL STATION TO R…
213654 (1) Full qty
11
PIPE FROM CONTROL STATION TO R…
164308 (1) Full qty
12
Brake Hose
977802 (2) Full qty
13
Brake Hose
118100 (2) Full qty
14
INTERMEDIATE PIPE
213648 (1) Full qty
14
INTERMEDIATE PIPE
164309 (1) Full qty
15
SCREW -M6 X 16-
11625724 (14) Full qty
16
PIPE FROM BRAKING REGULATOR TO…
213697 (1) Full qty
16
PIPE FROM BRAKING REGULATOR TO…
196424 (1) Full qty
17
PIPE FROM BRAKING REGULATOR TO…
196427 (1) Full qty
17
PIPE FROM BRAKING REGULATOR TO…
213698 (1) Full qty
18
PIPE TO L.H. FRONT BRAKE
213696 (1) Full qty
18
FRONT RH. BRAKE PIPE
200324 (1) Full qty
18
PIPE TO R.H. FRONT BRAKE
213694 (1) Full qty
18
FRONT LH. BRAKE PIPE
200325 (1) Full qty
19
BRAKES PIPES FIXING BRACKET
177945 (1) Full qty
20
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
21
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
22
WASHER
14488624 (2) Full qty
23
CLIP
169476 (2) Full qty
24
Front Brake Calipar - Clamp
116374 (10) Full qty
25
MOUNTING
178938 (4) Full qty
26
SCREW -M6 X 14-
10902124 (4) Full qty
27
WASHER
14496324 (4) Full qty
28
Clamp
10441190 (4) Full qty
29
REAR MOUNTING
185283 (2) Full qty
30
Hose supporting braket
10440890 (4) Full qty
31
NUT
16100814 (2) Full qty
32
Wavy Lock Washer 8mm
127496 (2) Full qty
33
WASHER
12638524 (2) Full qty
34
CLIP
169477 (1) Full qty
35
Nut to fixing front and rear s…
15896470 (2) Full qty
36
Washer
149951 (2) Full qty
37
SCREW -M8 X 90-
14307124 (2) Full qty
38
WASHER
14496524 (4) Full qty
39
8x1.25 lock nut
New       Price on Enquiry
101139 (2) Full qty
GB10400n
40
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
41
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
42
WASHER
12643724 (2) Full qty
43
BRAKING REGULATOR
172979 (2) Full qty
44
FASTON
143405 (4) Full qty
45
BRACKET FOR BRAKING REGULATO…
198063 (1) Full qty
46
VIBRATION DAMPER
197149 (1) Full qty
47
8x1.25 lock nut
New       Price on Enquiry
101139 (1) Full qty
GB10400n
48
WASHER
12638524 (1) Full qty
49
CLIP
150738 (6) Full qty
50
RING CLAMP -Version with front…
145854 (6) Full qty
