Pedals -Not For Rhd

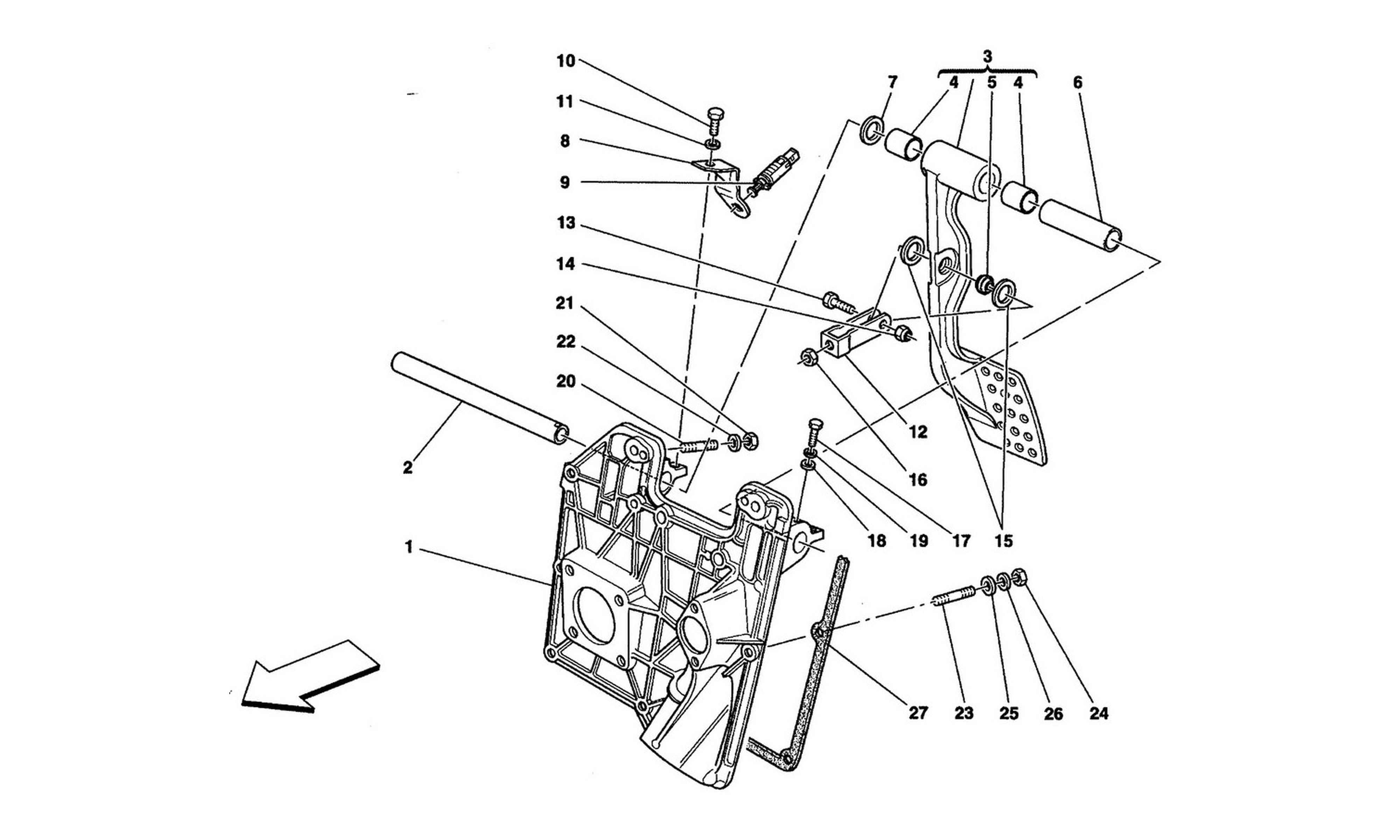

Schematic: Pedals -Not For Rhd
Loc
Part
Cond       Price
1
PEDAL BOARD MOUNTING
176464 (1) Full qty
2
PEDALS MOUNTING PIN
176466 (1) Full qty
3
COMPLETE BRAKE PEDAL
196791 (1) Full qty
4
Bush
103163 (2) Full qty
5
BALL-JOINT
176475 (1) Full qty
6
SHIM
176918 (1) Full qty
7
Shim, 1,3 mm. thick
113835 (1) Full qty
7
WASHER
178340 (1) Full qty
7
Shim, 1,4 mm. thick
113836 (1) Full qty
7
Shim, 1,2 mm. thick
113834 (1) Full qty
8
SWITCH SUPPORT
183818 (1) Full qty
9
PUSH-BUTTON SWITCH
183433 (1) Full qty
10
SCREW
16043224 (1) Full qty
11
Wavy Lock Washer 8mm
127496 (1) Full qty
12
FORK
199754 (1) Full qty
13
Screw
16043724 (1) Full qty
14
NUT
147985 (1) Full qty
15
PLASTIC WASHER
176522 (2) Full qty
16
NUT
16102314 (1) Full qty
17
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
18
Washer 1.6mm 6.4x11.95x1.6
10519424 (1) Full qty
19
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
20
STUD
13516924 (6) Full qty
21
NUT
104030 (6) Full qty
22
Do Not Use - See GE07667n
12601374 (6) Full qty
22
New       £ 0.12
12601374 (6) Full qty
CH11905n
23
STUD BOLT
13517024 (2) Full qty
24
NUT
16102377 (2) Full qty
25
Washer
13550321 (2) Full qty
26
Do Not Use - See GE07667n
12601374 (2) Full qty
26
New       £ 0.12
12601374 (2) Full qty
CH11905n
27
PEDAL BOARD MOUNTING GASKET
176524 (1) Full qty
