Antievaporation Device -Not For Usa And Cdn

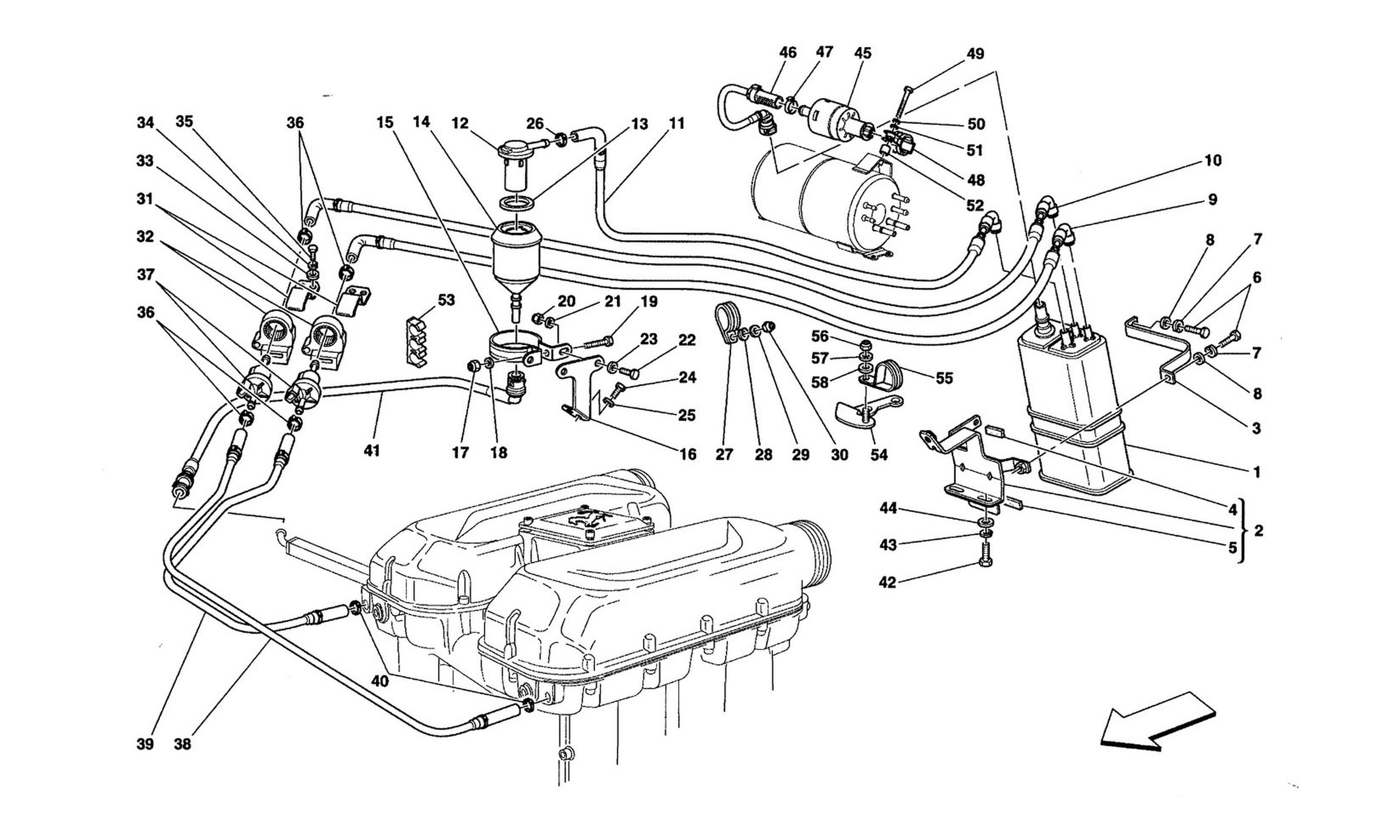

Schematic: Antievaporation Device -Not For Usa And Cdn
Schematic: Antievaporation Device -Not For Usa And Cdn
Loc
Part
Cond       Price
1
FUEL VAPOR FILTER
180132 (1) Full qty
2
DEWATERER FILTER FIXING BRAC…
178451 (1) Full qty
3
BRACKET
178456 (1) Full qty
4
RUBBER THICKNESS
178458 (1) Full qty
5
RUBBER THICKNESS
178457 (1) Full qty
6
SCREW -M6 X 14-
10902124 (2) Full qty
7
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
8
WASHER
12639724 (2) Full qty
9
PIPE FROM FILTER TO REAR VALV…
180376 (1) Full qty
10
PIPE FROM FILTER TO FRONT VAL…
180375 (1) Full qty
11
PIPE FROM FILTER TO MULTIFUN…
180374 (1) Full qty
12
MULTIFUNTIONAL VALVE
180030 (1) Full qty
13
Rollover Valve Gasket 360
New       Price on Enquiry
195049 (1) Full qty
FU15699n
14
MULTIFUNTIONAL VALVE CONTAINER…
175967 (1) Full qty
15
BRACKET WITH SHEATH
176393 (1) Full qty
16
BRACKET
176442 (1) Full qty
17
Nut
102741 (1) Full qty
18
WASHER
12639724 (1) Full qty
19
SCREW
10902834 (1) Full qty
20
NUT
10720124 (2) Full qty
21
Washer
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
21
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
22
Screw
10902024 (2) Full qty
23
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
24
SCREW
10902224 (2) Full qty
25
Washer
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
25
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
26
COLLAR -D. 15.7-
13432070 (1) Full qty
27
Clamp
10442290 (1) Full qty
28
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
29
Washer
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
29
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
30
NUT
15896214 (2) Full qty
31
BRACKET
174708 (2) Full qty
32
BUFFER FOR SUPPORT
174623 (2) Full qty
33
Washer
New       Price on Enquiry
12644424 (2) Full qty
CS12006n
33
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (2) Full qty
CS12006u
34
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
35
SCREW
10979434 (2) Full qty
36
COLLAR -D. 15.7-
13432070 (4) Full qty
37
Valve
New       Price on Enquiry
162412 (2) Full qty
FU14092n
38
PIPE TO ENGINE L.H. SIDE
180377 (1) Full qty
39
PIPE TO ENGINE R.H. SIDE
180378 (1) Full qty
40
COLLAR -D. 15.7-
13432070 (2) Full qty
41
PIPE FROM MULTIFUNTIONAL VALVE…
180373 (1) Full qty
42
SCREW
10902224 (2) Full qty
43
WASHER
12639724 (2) Full qty
44
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
45
ON-OFF VALVE
179138 (1) Full qty
46
COMPLETE TUBE
180155 (1) Full qty
47
ELASTIC COLLAR
164015 (1) Full qty
48
BRACKET WITH SHEATH
181607 (1) Full qty
49
SCREW
10903024 (1) Full qty
50
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
51
WASHER
12639724 (1) Full qty
52
SPACER
172613 (1) Full qty
53
CLIP -Not for CINA, USA, CDN, …
145543 (1) Full qty
54
BRACKET
180179 (1) Full qty
55
Strap
10441990 (1) Full qty
56
NUT
15896214 (1) Full qty
57
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
58
Washer
New       Price on Enquiry
12644424 (1) Full qty
CS12006n
58
Inlet Water Manifold 512 BBi
Used       Price on Enquiry
12644424 (1) Full qty
CS12006u
