Front Hood And Opening Device

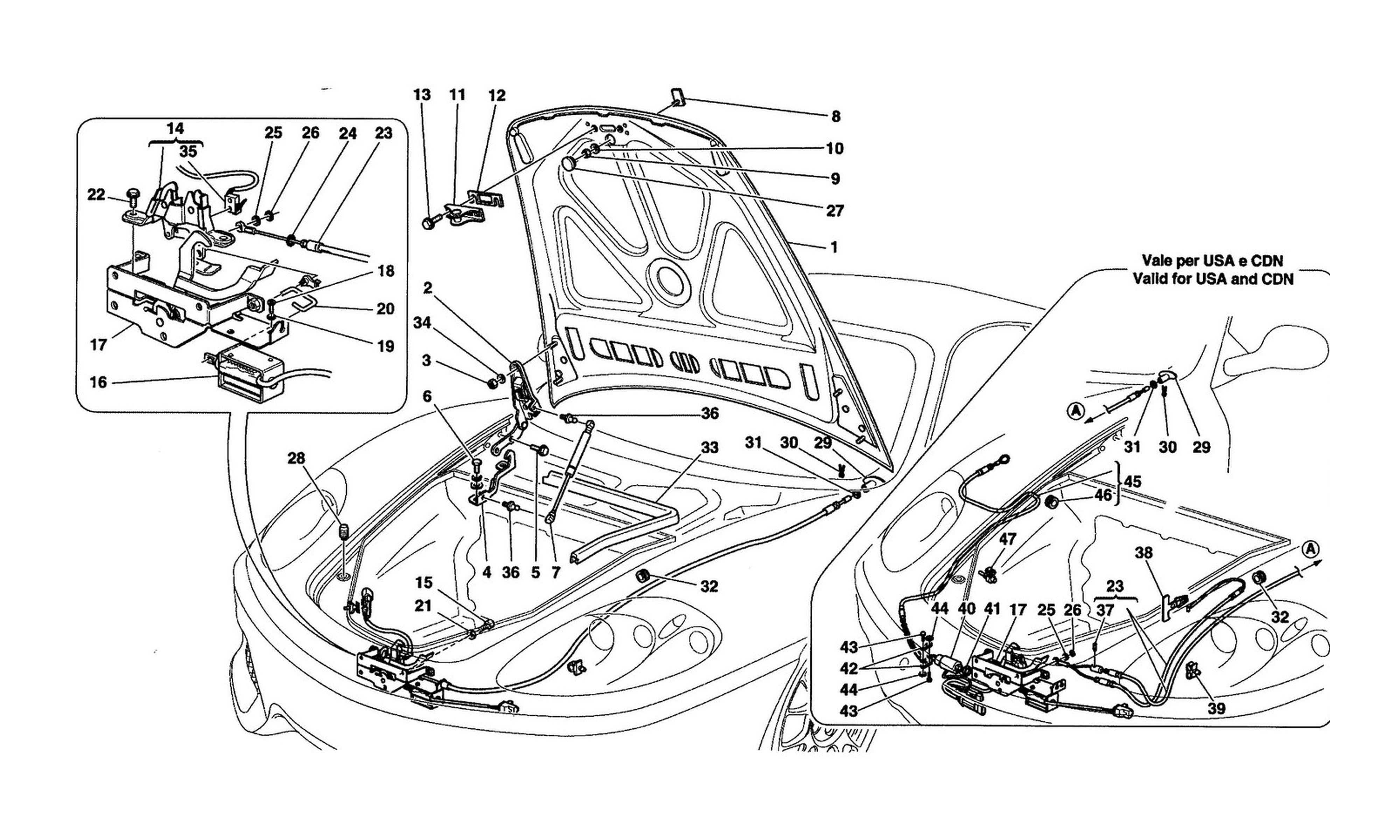

Schematic: Front Hood And Opening Device
Loc
Part
Cond       Price
1
SHEETED COMPLETE FRONT HOOD …
65313111 (1) Full qty
2
COMPLETE RH. HINGE
65712200 (1) Full qty
2
COMPLETE LH. HINGE
65712300 (1) Full qty
3
NUT
13832211 (4) Full qty
4
LH. BRACKET
65710700 (1) Full qty
4
RH. BRACKET
65710600 (1) Full qty
5
SCREW -M8 X 20-
16287124 (4) Full qty
6
SCREW -M8 X 20-
16287127 (4) Full qty
7
New       Price on Enquiry
67508100 (2) Full qty
BW99162n
8
FRONT BADGE
65394800 (1) Full qty
9
NUT
169180 (1) Full qty
10
WASHER
10519378 (1) Full qty
11
STRIKER PLATE
65770100 (1) Full qty
12
SHIM
65772100 (1) Full qty
13
SCREW
16286027 (2) Full qty
14
COMPLETE FRONT LID OPEN BUTTON…
67046200 (1) Full qty
15
SCREW
13027026 (4) Full qty
16
Actuator
65757300 (1) Full qty
17
COMPLETE BRACKET
67011600 (1) Full qty
17
COMPLETE BRACKET
67364800 (1) Full qty
18
SCREW
13271814 (2) Full qty
19
Clutch Slave Kit 13/16"
127492 (2) Full qty
20
STICK
65777800 (1) Full qty
21
WASHER
11194674 (4) Full qty
22
SCREW
16296927 (2) Full qty
23
CABLE FOR HANDLE FOR SAFETY CH…
67404100 (1) Full qty
23
FRONT LID OPEN CABLE
65801300 (1) Full qty
24
Snap ring
11087676 (1) Full qty
25
Washer
14496101 (1) Full qty
26
Seeger
11087476 (1) Full qty
27
CAP
14506787 (1) Full qty
28
VIBRATION DAMPER
65546600 (2) Full qty
29
Handle for emergency cable
60710900 (1) Full qty
30
Spring for handle
60711000 (1) Full qty
31
SNAP RING
11087674 (1) Full qty
32
CABLE GROMMET
10396180 (2) Full qty
33
LUGGAGE COMPARTMENT GASKET
65850000 (1) Full qty
34
Washer
12646724 (4) Full qty
35
MICROSWITCH
67493300 (1) Full qty
36
PIN
65939900 (4) Full qty
37
Dowel
60276805 (1) Full qty
38
CHILDREN SAFETY HANDLE
67053000 (1) Full qty
39
CLIP
62854300 (1) Full qty
40
Actuator
67365100 (1) Full qty
41
Ring nut
60538800 (1) Full qty
42
BRAKE HANGER
67558300 (2) Full qty
43
PIN
67555700 (2) Full qty
44
Seeger
11087476 (2) Full qty
45
EMERGENCY CABLE
67405000 (1) Full qty
46
CABLE GROMMET
10396180 (1) Full qty
47
CLIP
65897700 (1) Full qty
