Evaporative Emissions Control System

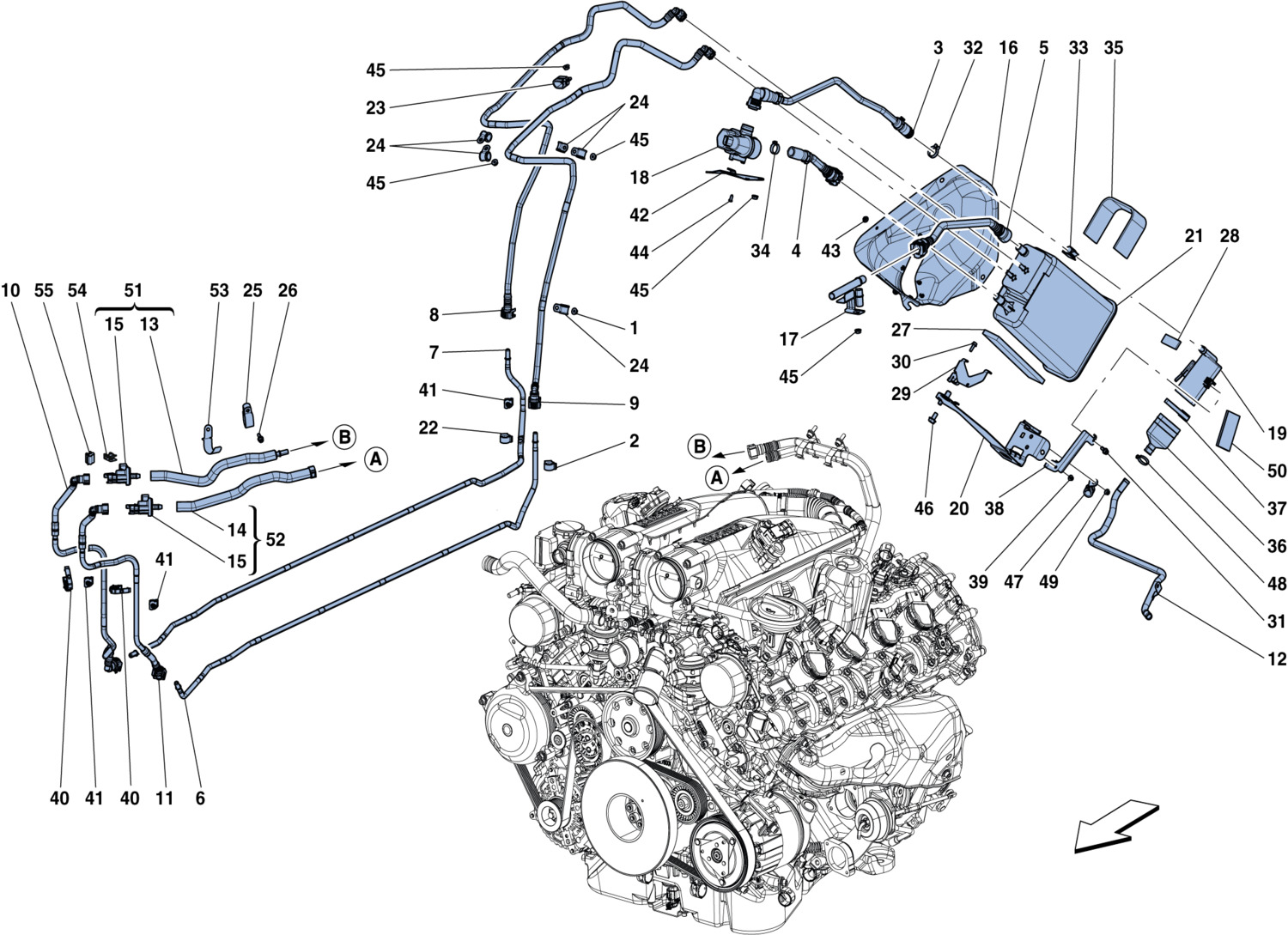

Schematic: Evaporative Emissions Control System
Loc
Part
Cond       Price
1
NUT
14040514 (1) Full qty
2
CLIP
198264 (1) Full qty
2
CLIP -Q.ty 2 for RH pipe and q…
303365 (1) Full qty
3
PIPE FROM OBD PUMP TO FILTER
253148 (1) Full qty
4
PIPE FROM CANISTER TO OBD PUMP…
248970 (1) Full qty
5
VAPOUR SEPARATOR PIPE
294106 (1) Full qty
6
RH PIPE FROM UNDERBODY CANISTE…
301615 (1) Full qty
7
LH PIPE FROM UNDERBODY CANISTE…
301614 (1) Full qty
8
LH PIPE FROM WHEELHOUSE CANIST…
301612 (1) Full qty
9
RH PIPE FROM WHEELHOUSE CANIST…
301613 (1) Full qty
10
LH EVAPORATIVE EMISSIONS CONTR…
310542 (1) Full qty
10
LH EVAPORATIVE EMISSIONS CONTR…
310542 (1) Full qty
11
RH EVAPORATIVE EMISSIONS CONTR…
310543 (1) Full qty
11
RH EVAPORATIVE EMISSIONS CONTR…
310543 (1) Full qty
12
OBD AIR FILTER INLET PIPE -App…
338631 (1) Full qty
12
OBD AIR FILTER INLET PIPE -App…
338631 (1) Full qty
13
COMPL. LH FLUSH VALVE JUNCTION…
304460 (1) Full qty
14
COMPL. RH FLUSH VALVE JUNCTION…
304461 (1) Full qty
15
FLUSH VALVE -Order complete re…
301065 (2) Full qty
16
COMPL. CARBON CANISTER GUARD -…
89311300 (1) Full qty
16
COMPL. CARBON CANISTER GUARD -…
89311300 (1) Full qty
17
DISAREATOR
253583 (1) Full qty
18
DIAGNOSTIC PUMP
251288 (1) Full qty
19
Filter
183221 (1) Full qty
20
COMPL. CANISTER BRACKET -Appli…
340107 (1) Full qty
20
COMPL. CANISTER BRACKET -Appli…
340107 (1) Full qty
21
FUEL VAPOUR FILTER -Applicable…
310413 (1) Full qty
21
FUEL VAPOUR FILTER -Applicable…
310413 (1) Full qty
21
New       Price on Enquiry
219311 (1) Full qty
FU14102n
22
CLIP
235682 (1) Full qty
23
BRACKET WITH SHEATH
253512 (1) Full qty
24
Hose fastening bracket
10441490 (5) Full qty
25
EVAP. EMISSIONS CONTROL SYST. …
312149 (1) Full qty
26
SCREW -M6 X 40-
231623 (1) Full qty
27
UPPER RUBBER SPACER
225354 (1) Full qty
28
RUBBER SHIM
217156 (1) Full qty
29
BRACKET
242634 (1) Full qty
30
SCREW -M5 X 16-
16285127 (1) Full qty
31
SCREW
15958701 (1) Full qty
32
COLLAR
13432670 (1) Full qty
33
CLIP
192314 (1) Full qty
34
COLLAR
13432870 (1) Full qty
35
PLUG
250209 (1) Full qty
36
AIR FILTER HEADPHONE
339890 (1) Full qty
36
AIR FILTER HEADPHONE
339890 (1) Full qty
37
Clamp
10301890 (1) Full qty
38
BRACKET
253157 (1) Full qty
39
NUT
14058319 (1) Full qty
40
CLIP
308272 (2) Full qty
41
CLIP
262559 (3) Full qty
42
DIAGNOSTIC PUMP BRACKET
241750 (1) Full qty
43
NUT
13046014 (4) Full qty
43
NUT
13046014 (3) Full qty
44
SCREW
15958701 (3) Full qty
45
NUT
14040614 (8) Full qty
46
SCREW -M8 X 16-
16287024 (2) Full qty
47
FILTER GAITER MOUNTING BRACKET…
339151 (1) Full qty
47
FILTER GAITER MOUNTING BRACKET…
339151 (1) Full qty
48
CLIP
13430770 (1) Full qty
49
NUT
14040514 (1) Full qty
50
PLUG
255515 (1) Full qty
51
COMPL. LH FLUSH VALVE JUNCTION…
304460 (1) Full qty
52
COMPL. RH FLUSH VALVE JUNCTION…
304461 (1) Full qty
53
NEOPRENE MOUNT RETAINER -Appli…
314390 (1) Full qty
54
CLIP -Applicable from Ass. No.…
86705100 (2) Full qty
55
CLIP
254427 (2) Full qty
