Ac System - Water And Freon

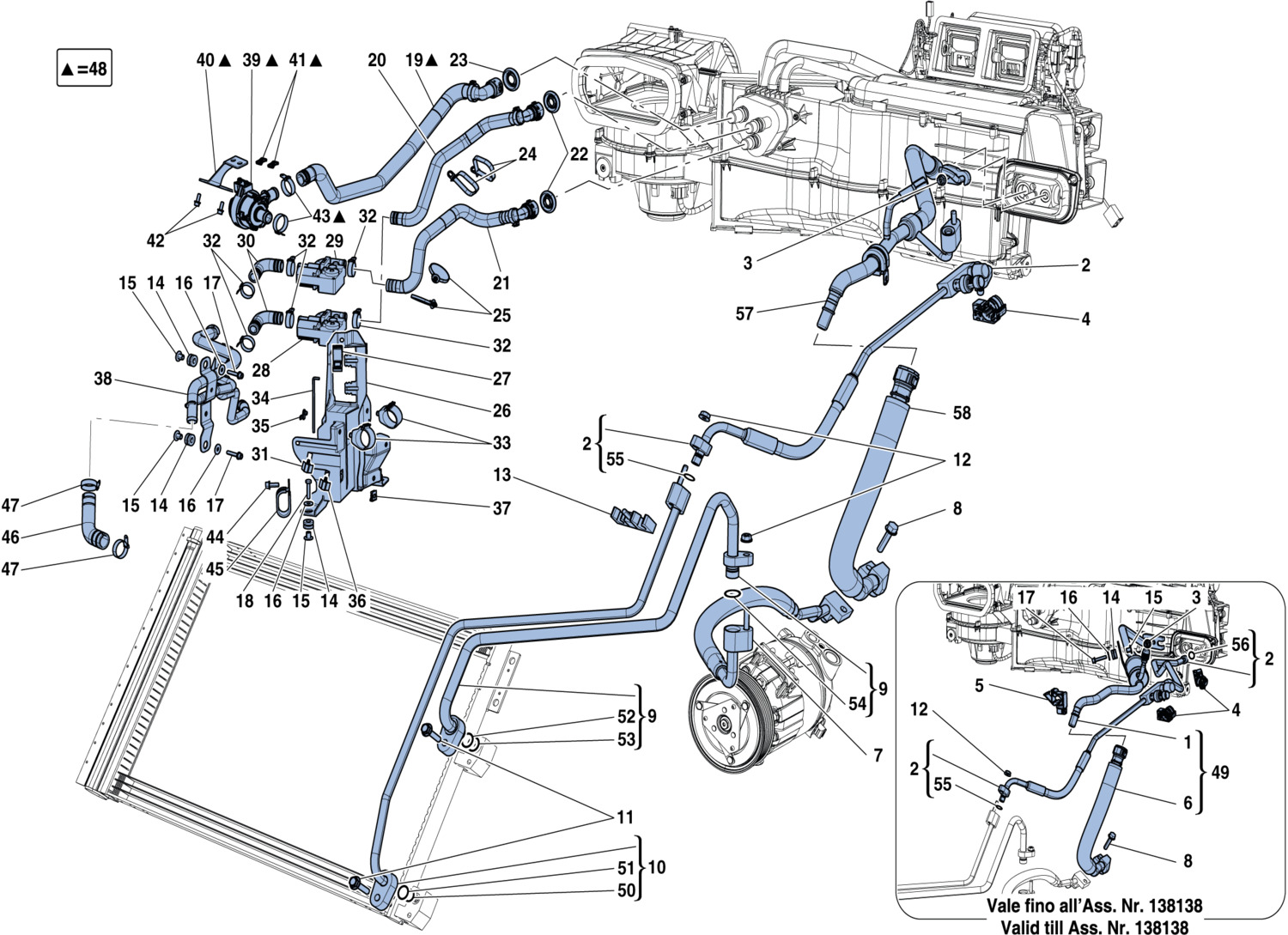

Schematic: Ac System - Water And Freon
Schematic: Ac System - Water And Freon
Loc
Part
Cond       Price
1
PIPE FROM HVAC TO COMPRESSOR -…
309864 (1) Full qty
1
PIPE FROM HVAC TO COMPRESSOR -…
309864 (1) Full qty
2
PIPE FROM CONDENSER DISCONNECT…
309865 (1) Full qty
2
PIPE FROM CONDENSER DISCONNECT…
309865 (1) Full qty
2
PIPE FROM CONDENSER DISCONNECT…
326560 (1) Full qty
3
NUT
14040711 (1) Full qty
4
CLIP
298580 (2) Full qty
4
CLIP
298580 (1) Full qty
5
CLIP -Applicable up to Ass. No…
81649300 (1) Full qty
6
FLEXIBLE HOSE FROM EXPANSION V…
299050 (1) Full qty
7
PIPE FROM COMPRESSOR TO DISCON…
299051 (1) Full qty
7
PIPE FROM COMPRESSOR TO DISCON…
326562 (1) Full qty
8
SCREW
13839624 (1) Full qty
9
PIPE FROM COMPRESSOR DISCONNEC…
299052 (1) Full qty
10
PIPE FROM CONDENSER TO DISCONN…
299053 (1) Full qty
11
SCREW
13837017 (2) Full qty
12
NUT
14040614 (1) Full qty
13
CLIP
294693 (1) Full qty
14
Cable Grommet
New       Price on Enquiry
103549 (7) Full qty
AC00210n
15
Spacer
New       Price on Enquiry
149707 (7) Full qty
CS11902n
16
WASHER
12643724 (7) Full qty
17
SCREW -M6 X 30-
231621 (4) Full qty
18
SCREW
10902824 (3) Full qty
18
SCREW -M6 X 30-
231621 (3) Full qty
19
PIPE FROM PUMP TO AC UNIT
303329 (1) Full qty
20
PIPE TO RH TGK VALVE
303649 (1) Full qty
21
PIPE TO LH TGK VALVE
297927 (1) Full qty
22
GASKET
81895900 (2) Full qty
23
GASKET
81970900 (1) Full qty
24
RING CLAMP -Applicable from As…
262271 (2) Full qty
25
CLIP
217854 (2) Full qty
26
TGK VALVE MOUNTING BRACKET -Ap…
308714 (1) Full qty
26
TGK VALVE MOUNTING BRACKET -Ap…
308714 (1) Full qty
27
CLIP
257273 (1) Full qty
28
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
29
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
30
TGK VALVE OUTLET UNION
292306 (2) Full qty
31
CLIP
252473 (1) Full qty
32
COLLAR CLAMP -Applicable after…
262109 (6) Full qty
33
CLIP
225821 (2) Full qty
34
TGK VALVE FASTENER ROD
67933600 (1) Full qty
35
TIE-ROD RETAINER CLIP
64215300 (1) Full qty
36
CLIP
253769 (1) Full qty
37
CLIP
80874400 (1) Full qty
38
ENGINE COMPARTMENT WATER RETUR…
302790 (1) Full qty
39
IDLE WATER RECIRCULATION PUMP
291349 (1) Full qty
40
RECIRCULATION PUMP MOUNTING BR…
303331 (1) Full qty
41
CLIP
291645 (2) Full qty
42
Screw 6x16 ( For Tensioner Mount) F12
New       £ 0.76
248334 (2) Full qty
TC00257n
43
SCREW COLLAR
262111 (2) Full qty
44
SCREW -M6 X 18-
231617 (1) Full qty
45
BRACKET WITH SHEATH -Applicabl…
257980 (1) Full qty
46
RADIATOR SIDE COOLING SYSTEM F…
302486 (1) Full qty
47
SCREW COLLAR
262111 (2) Full qty
48
COMPL. RECIRCULATION PUMP -Aft…
303568 (1) Full qty
49
PIPE FROM HVAC TO COMPRESSOR -…
318123 (1) Full qty
50
GASKET
14450483 (1) Full qty
51
GASKET
10318884 (1) Full qty
52
GASKET
10319184 (1) Full qty
53
GASKET
14450683 (1) Full qty
54
GASKET
11084284 (1) Full qty
55
GASKET
11084083 (1) Full qty
56
GASKET
82068300 (1) Full qty
57
IHX GAS PIPE -Applicable from …
326569 (1) Full qty
58
FLEXIBLE HOSE FROM EXPANSION V…
326561 (1) Full qty
