Brake System

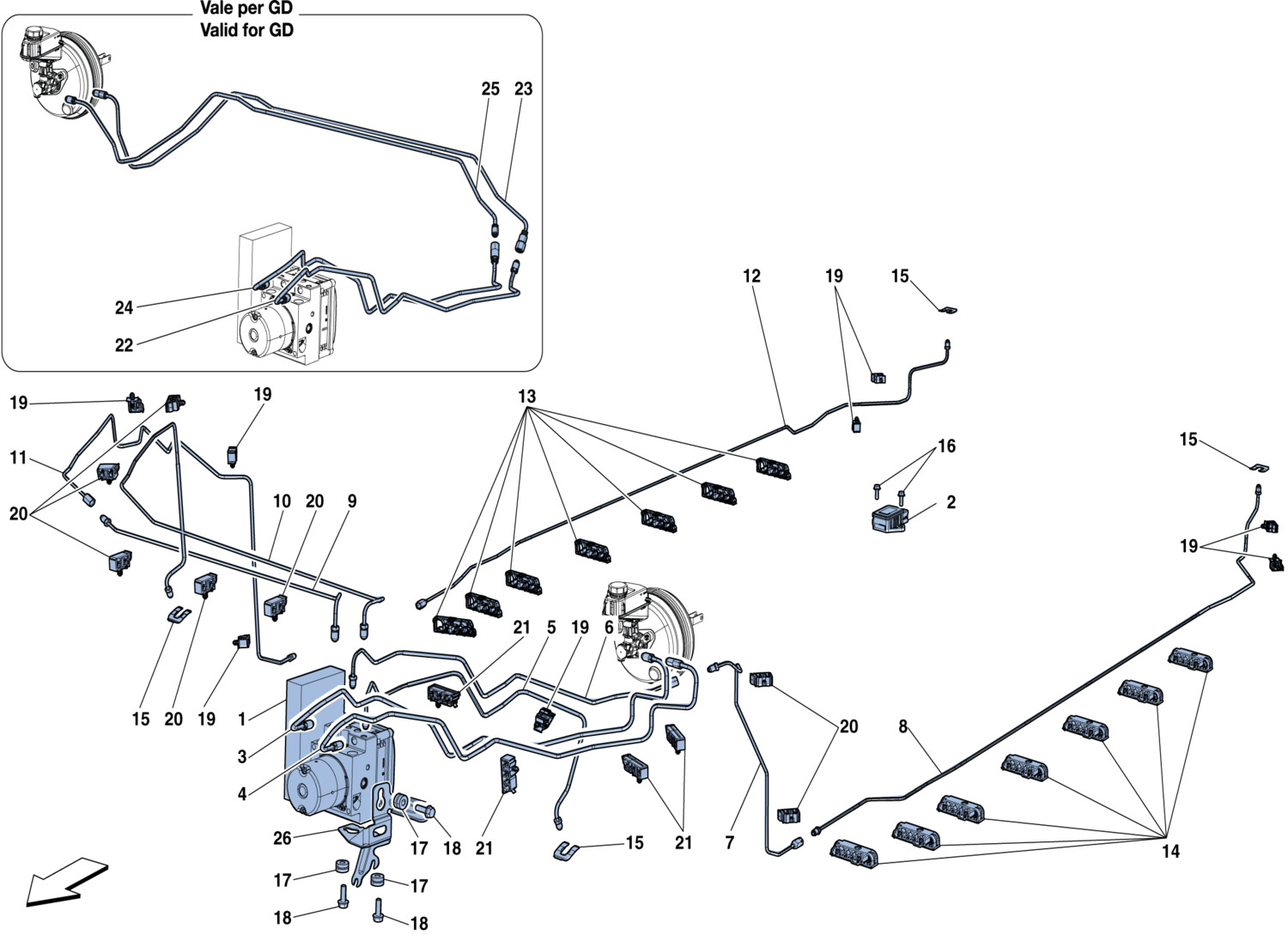

Schematic: Brake System
Loc
Part
Cond       Price
1
HYDRAULIC UNIT
293819 (1) Full qty
1
HYDRAULIC UNIT -Special Handli…
299665 (1) Full qty
2
YAW SENSOR -Applicable for GD-…
317783 (1) Full qty
2
YAW SENSOR -Applicable for GD-…
317783 (1) Full qty
3
BRAKE PIPE FROM "R" TO MC2 -Re…
293743 (1) Full qty
4
BRAKE PIPE FROM "F" TO MC1 -No…
293744 (1) Full qty
5
PIPE FROM UNIT TO LH FRONT WHE…
316362 (1) Full qty
5
PIPE FROM UNIT TO LH FRONT WHE…
316362 (1) Full qty
6
BRAKE PIPE FROM UNIT TO LH REA…
316363 (1) Full qty
6
BRAKE PIPE FROM UNIT TO LH REA…
316363 (1) Full qty
6
BRAKE PIPE FROM UNIT TO LH REA…
316363 (1) Full qty
7
LH REAR WHEEL JUNCTION PIPE -A…
315716 (1) Full qty
7
LH REAR WHEEL JUNCTION PIPE -A…
315716 (1) Full qty
7
LH REAR WHEEL JUNCTION PIPE -A…
315716 (1) Full qty
8
LH UNDERBODY BRAKE PIPE -Appli…
280614 (1) Full qty
8
LH UNDERBODY BRAKE PIPE -Appli…
316365 (1) Full qty
9
BRAKE PIPE FROM UNIT TO RH REA…
305354 (1) Full qty
10
PIPE FROM UNIT TO RH FRONT WHE…
305353 (1) Full qty
11
RH REAR WHEEL JUNCTION PIPE -A…
316364 (1) Full qty
11
RH REAR WHEEL JUNCTION PIPE -A…
316364 (1) Full qty
12
RH UNDERBODY BRAKE PIPE -Appli…
316366 (1) Full qty
12
RH UNDERBODY BRAKE PIPE -Appli…
316366 (1) Full qty
13
CLIP
299493 (7) Full qty
14
CLIP -5 compartments-
241118 (7) Full qty
15
Front Brake Calipar - Clamp
116374 (4) Full qty
16
SCREW -No longer supplied- -Re…
16286124 (2) Full qty
17
PLUG
232869 (3) Full qty
18
SCREW -M8 X 25-
16287224 (3) Full qty
19
CLIP -1 compartment-
301063 (8) Full qty
20
CLIP -No longer supplied- -Rep…
301062 (7) Full qty
20
CLIP -2 compartments-
312163 (7) Full qty
21
CLIP -4 compartments-
301061 (4) Full qty
22
BRAKE PIPE FROM "F" TO JUNCTIO…
309453 (1) Full qty
23
BRAKE PIPE FROM JUNCTION TO MC…
309454 (1) Full qty
24
BRAKE PIPE FROM "R" TO JUNCTIO…
309455 (1) Full qty
25
BRAKE PIPE FROM JUNCTION TO MC…
309456 (1) Full qty
26
ESP ECU MOUNT
301000 (1) Full qty
