Lubrication: Circuit And Pickup

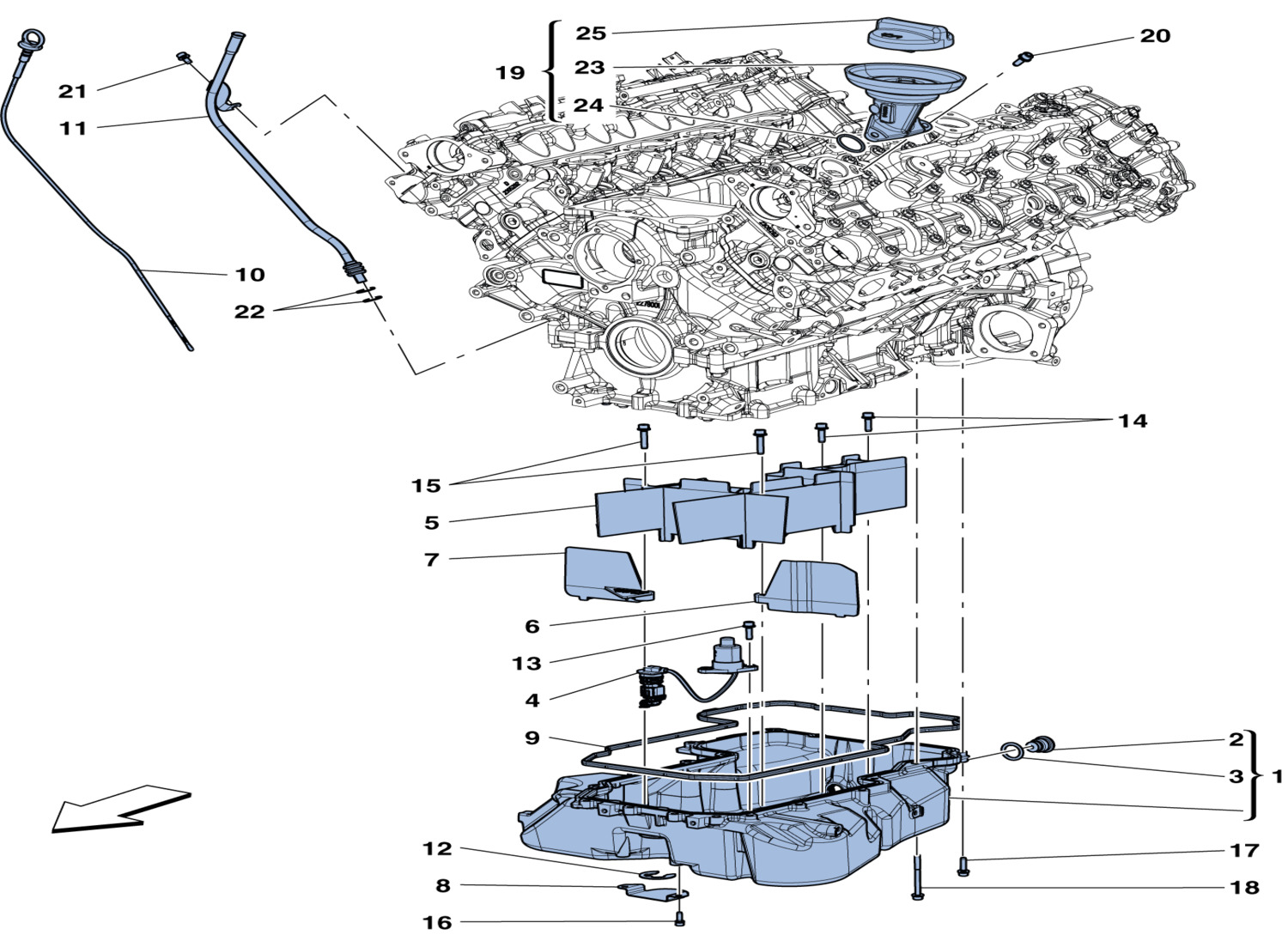

Schematic: Lubrication: Circuit And Pickup
Loc
Part
Cond       Price
1
OIL SUMP
306807 (1) Full qty
2
New       Price on Enquiry
104280 (1) Full qty
GB10488n
3
New       Price on Enquiry
10261860 (1) Full qty
CC11528n
4
OIL LEVEL DETECTOR
230171 (1) Full qty
5
OIL SUMP BAFFLE
311171 (1) Full qty
6
LH OIL SUMP BAFFLE FIN
303456 (1) Full qty
7
RH OIL SUMP BAFFLE FIN
303457 (1) Full qty
8
SENSOR PROTECTIVE SHIELD
304668 (1) Full qty
9
OIL SUMP GASKET
301591 (1) Full qty
10
DIPSTICK
301461 (1) Full qty
11
DIPSTICK TUBE EXTENSION
297463 (1) Full qty
12
FLEXIBLE RING
16165276 (1) Full qty
13
SCREW
282396 (2) Full qty
14
SCREW
282396 (2) Full qty
15
SCREW
282398 (2) Full qty
16
SCREW
299916 (2) Full qty
17
SCREW -M6 X 25-
231620 (8) Full qty
18
SCREW -M6 X 70-
231626 (9) Full qty
19
COMPL. OIL CAP -No longer supp…
307670 (1) Full qty
20
New       £ 0.76
248334 (2) Full qty
TC00257n
21
SCREW -M6 X 12-
233600 (1) Full qty
22
O-RING
282370 (2) Full qty
23
OIL CAP EXTENSION
307943 (1) Full qty
24
GASKET
14457881 (1) Full qty
25
ENGINE OIL FILLER CAP
293205 (1) Full qty
