Rear Bumper

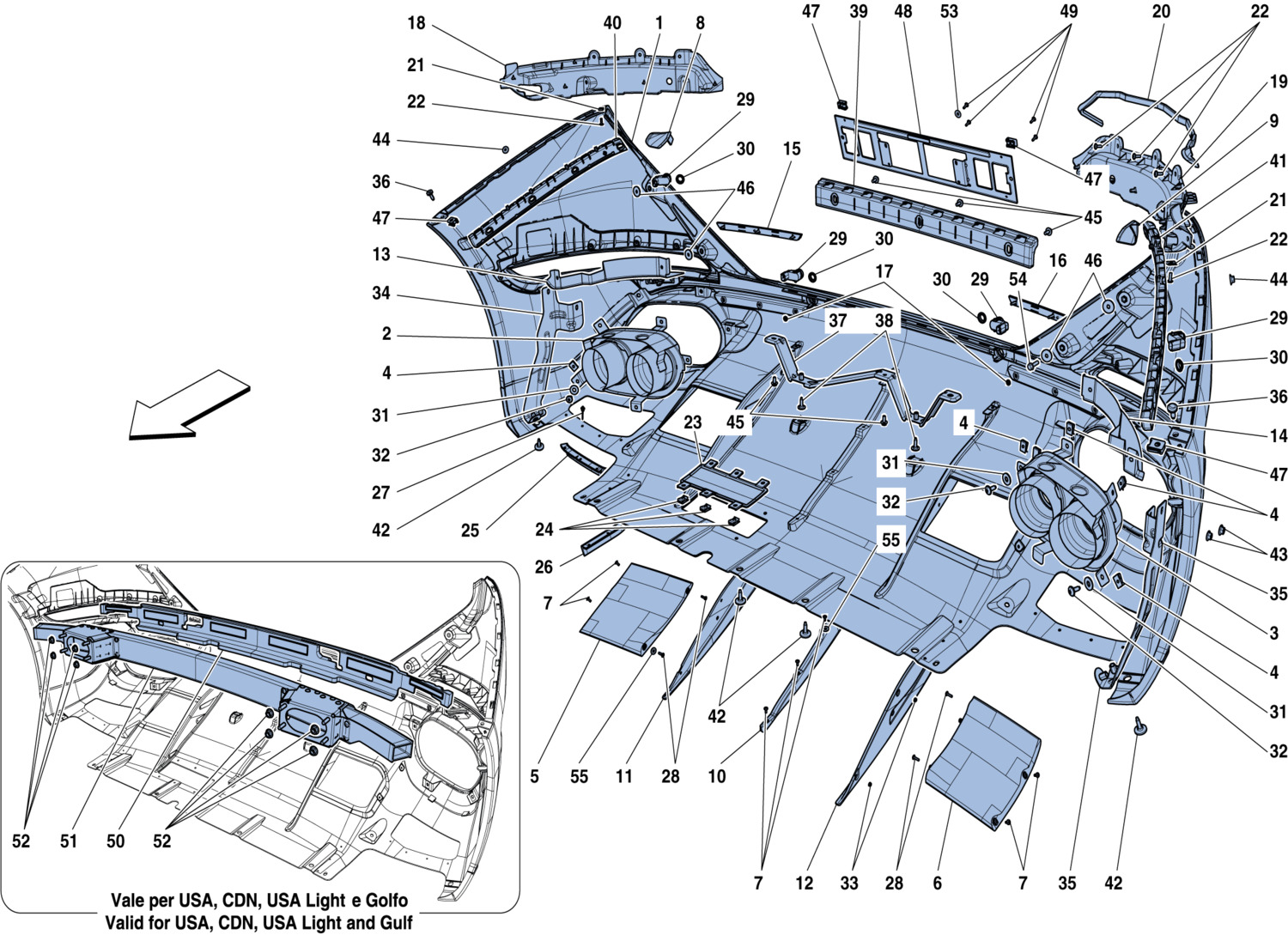

Schematic: Rear Bumper
Loc
Part
Cond       Price
1
COMPL. REAR BUMPER
86667810 (1) Full qty
2
RH TAILPIPE GRILLE
86090600 (1) Full qty
2
RH TAILPIPE GRILLE -Special Ha…
88240000 (1) Full qty
2
RH TAILPIPE GRILLE -Version wi…
86090400 (1) Full qty
3
LH TAILPIPE GRILLE
86090500 (1) Full qty
3
LH TAILPIPE GRILLE -Special Ha…
88239900 (1) Full qty
3
LH TAILPIPE GRILLE -Version wi…
86090300 (1) Full qty
4
CLIP
80874300 (10) Full qty
5
RH LATERAL REAR SPOILER
85829900 (1) Full qty
6
LH LATERAL REAR SPOILER
85829600 (1) Full qty
7
SCREW -M4 X 10-
86876300 (10) Full qty
7
SCREW -M4 X 10-
86876300 (10) Full qty
8
COSMETIC SEAL ON RH REAR BUMPE…
85830400 (1) Full qty
9
COSMETIC SEAL ON LH REAR BUMPE…
85830300 (1) Full qty
10
CENTRAL FIN
85830500 (1) Full qty
11
RH FIN
85830700 (1) Full qty
12
LH FIN
85830600 (1) Full qty
13
RH FIXED TAILLIGHT HEAT SHIELD…
85468100 (1) Full qty
14
LH FIXED TAILLIGHT HEAT SHIELD…
85468000 (1) Full qty
15
RH REFLECTOR
84806800 (1) Full qty
16
LH REFLECTOR
84806900 (1) Full qty
17
WASHER FOR PIN
84784600 (6) Full qty
18
RH FIXED TAILLIGHT BASE
85937500 (1) Full qty
19
LH FIXED TAILLIGHT BASE
85937400 (1) Full qty
20
FIXED TAILLIGHT SEAL -Applicab…
86021300 (2) Full qty
21
BRACKET
14370171 (6) Full qty
22
SCREW
86876500 (6) Full qty
22
SCREW
86876500 (6) Full qty
23
GEARBOX OIL INSPECTION CAP
86245400 (1) Full qty
24
CLIP
80874300 (6) Full qty
25
LATERAL DAM
86574300 (2) Full qty
26
CENTRAL DAM
86574500 (2) Full qty
27
RIVET
14295696 (14) Full qty
28
SCREW
63343400 (10) Full qty
28
SCREW -M4 X 14-
86876400 (10) Full qty
29
PARKING SENSOR
295361 (4) Full qty
30
SILICONE RING
81544800 (4) Full qty
31
WASHER
81078500 (10) Full qty
31
WASHER
87547900 (10) Full qty
32
SCREW
82113500 (10) Full qty
33
NUT
14039414 (6) Full qty
34
RH LATERAL BRACKET
85467800 (1) Full qty
35
LH LATERAL BRACKET
85467600 (1) Full qty
36
SCREW
80874100 (2) Full qty
37
LOWER BRACKET
86224400 (1) Full qty
38
SCREW -M6 X 22-
80874900 (2) Full qty
39
CENTRE MOUNTING BRACKET
85922700 (1) Full qty
40
RH LATERAL MOUNTING BRACKET
85922900 (1) Full qty
41
LH LATERAL MOUNTING BRACKET
85922800 (1) Full qty
42
SCREW -M6 X 22-
83442900 (7) Full qty
43
NUT
13046112 (4) Full qty
44
NUT
14039511 (8) Full qty
45
SCREW
11625621 (6) Full qty
46
WASHER
65841100 (4) Full qty
46
WASHER
12640624 (4) Full qty
47
CLIP
62766300 (4) Full qty
48
REAR LICENSE PLATE MOUNTING -A…
82283100 (1) Full qty
48
REAR LICENSE PLATE MOUNTING -A…
85980600 (1) Full qty
48
REAR LICENSE PLATE MOUNTING -N…
86292200 (1) Full qty
48
REAR LICENSE PLATE MOUNTING -A…
86291500 (1) Full qty
48
REAR LICENSE PLATE MOUNTING -A…
86293400 (1) Full qty
48
REAR LICENSE PLATE MOUNTING -A…
86786300 (1) Full qty
49
SCREW
63343400 (4) Full qty
50
REAR BUMPER IMPACT ABSORBER -A…
85999100 (1) Full qty
51
REAR CROSS-MEMBER -Applicable …
85185000 (1) Full qty
52
NUT -Applicable for USA
13046214 (8) Full qty
53
WASHER
12604274 (2) Full qty
54
SCREW -M6 X 18-
11625824 (4) Full qty
55
Washer
12642878 (24) Full qty
