Doors - Substructure And Trim

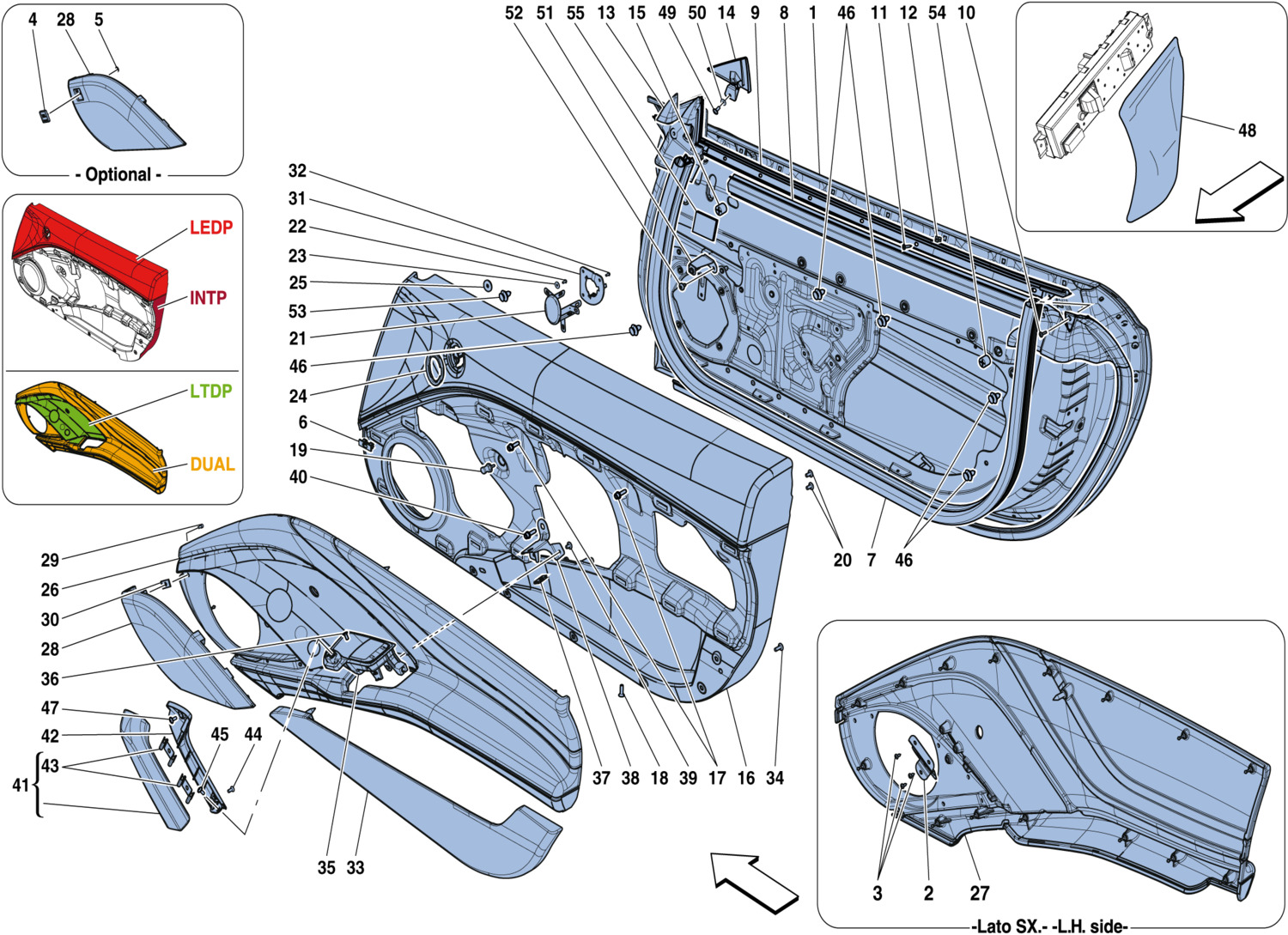

Schematic: Doors - Substructure And Trim
Schematic: Doors - Substructure And Trim
Loc
Part
Cond       Price
1
RH DOOR -Not for GD-
85037911 (1) Full qty
1
RH DOOR -Applicable for GD-
85680611 (1) Full qty
1
LH DOOR -Not for GD-
85037111 (1) Full qty
1
LH DOOR -Applicable for GD-
85679211 (1) Full qty
2
MIRROR CONTROLS BRACKET -Not f…
85338200 (1) Full qty
3
SCREW
16082801 (3) Full qty
4
JBL LOGO -Premium Hi-Fi versio…
83198200 (2) Full qty
5
MARK FIXING PLATE
14227474 (2) Full qty
6
Fixing Clip
68700200 (30) Full qty
7
R.H. GASKET FOR DOOR OPENING
84036700 (2) Full qty
8
RH INNER BELT-LINE SEAL
85219400 (1) Full qty
8
LH INNER BELT-LINE SEAL
85219300 (1) Full qty
9
RH OUTER BELT-LINE SEAL
85219600 (1) Full qty
9
LH OUTER BELT-LINE SEAL
85219500 (1) Full qty
10
SCREW
63343400 (2) Full qty
11
SCREW
15689801 (14) Full qty
11
SCREW
15689809 (14) Full qty
12
BLOCK
14115885 (14) Full qty
13
RH DOOR INNER CORNER TRIANGLE …
85672500 (1) Full qty
13
LH DOOR INNER CORNER TRIANGLE …
85672400 (1) Full qty
14
R.H. DOOR MOULDING
80341800 (1) Full qty
14
L.H. DOOR MOULDING
80341700 (1) Full qty
15
DOOR ALIGNMENT FOAM PAD
83888400 (2) Full qty
16
RH DOOR PANEL -Leather- -Not f…
864547 (1) Full qty
16
RH DOOR PANEL -Leather- -High …
864550 (1) Full qty
16
LH DOOR PANEL -Leather- -Not f…
864532 (1) Full qty
16
LH DOOR PANEL -Leather- -High …
864535 (1) Full qty
17
SCREW -M6 X 22-
231619 (4) Full qty
18
SCREW -M6 X 20-
14441434 (8) Full qty
19
DOOR PULL HANDLE SHIM
86605900 (2) Full qty
19
DOOR PULL HANDLE SHIM
86605900 (2) Full qty
20
SCREW
64460500 (8) Full qty
21
RH DOOR TWEETER GRILLE -Leathe…
853480 (1) Full qty
21
LH DOOR TWEETER GRILLE -Leathe…
853479 (1) Full qty
22
SCREW
83996600 (6) Full qty
23
Washer
14498501 (6) Full qty
24
CHROME BEZEL FOR RH DOOR TWEET…
83986300 (1) Full qty
24
CHROME BEZEL FOR LH DOOR TWEET…
83990400 (1) Full qty
25
WASHER
65841100 (2) Full qty
26
RH DOOR CARD -Leather- -STC1- …
864552 (1) Full qty
26
RH DOOR CARD -Leather- -STC1- …
864624 (1) Full qty
26
RH DOOR CARD -Diamond style pa…
864561 (1) Full qty
26
RH DOOR CARD -Diamond style pa…
864630 (1) Full qty
26
RH DOOR CARD -Alcantara- -STC1…
864558 (1) Full qty
26
RH DOOR CARD -Alcantara- -STC1…
864628 (1) Full qty
26
RH DOOR CARD -Carbon- -Not for…
86452800 (1) Full qty
26
RH DOOR CARD -Carbon- -Applica…
86102900 (1) Full qty
27
LH DOOR CARD -Leather- -STC1- …
864537 (1) Full qty
27
LH DOOR CARD -Leather- -STC1- …
864563 (1) Full qty
27
LH DOOR CARD -Diamond style pa…
864545 (1) Full qty
27
LH DOOR CARD -Diamond style pa…
864569 (1) Full qty
27
LH DOOR CARD -Alcantara- -STC1…
864543 (1) Full qty
27
LH DOOR CARD -Alcantara- -STC1…
864567 (1) Full qty
27
LH DOOR CARD -Carbon- -Not for…
86452600 (1) Full qty
27
LH DOOR CARD -Carbon- -Applica…
86102200 (1) Full qty
28
RH WOOFER GRILLE -Leather- -No…
864556 (1) Full qty
28
RH WOOFER GRILLE -Leather- -Hi…
864938 (1) Full qty
28
LH WOOFER GRILLE -Leather- -No…
864541 (1) Full qty
28
LH WOOFER GRILLE -Leather- -Hi…
864931 (1) Full qty
29
SCREW
15688875 (14) Full qty
30
BRACKET FOR SCREW
14189576 (14) Full qty
31
ADAPTOR FOR TWEETER
82539400 (2) Full qty
31
ADAPTOR FOR TWEETER
82539000 (2) Full qty
32
SCREW
83996600 (6) Full qty
33
RH DOOR PANEL POCKET -Leather-…
853361 (1) Full qty
33
RH DOOR PANEL POCKET -Leather-…
868604 (1) Full qty
33
RH DOOR PANEL POCKET. -INTP- -…
87671712 (1) Full qty
33
RH DOOR PANEL POCKET -Alcantar…
861013 (1) Full qty
33
RH DOOR PANEL POCKET -Alcantar…
868605 (1) Full qty
33
RH DOOR PANEL POCKET. -INTA- -…
87671300 (1) Full qty
33
LH DOOR PANEL POCKET -Leather-…
853360 (1) Full qty
33
LH DOOR PANEL POCKET -Leather-…
868602 (1) Full qty
33
LH DOOR PANEL POCKET -INTP- -L…
87672112 (1) Full qty
33
LH DOOR PANEL POCKET -Alcantar…
859731 (1) Full qty
33
LH DOOR PANEL POCKET -Alcantar…
868603 (1) Full qty
33
LH DOOR PANEL POCKET -INTA- -A…
87672000 (1) Full qty
34
Screw
New       £ 1.34
169814 (12) Full qty
BW99327n
35
RH DOOR RELEASE LEVER RECESS
86461300 (1) Full qty
35
LH DOOR RELEASE LEVER RECESS
86461500 (1) Full qty
36
SCREW
14440634 (2) Full qty
36
SCREW
14440724 (2) Full qty
37
BRACKET WITH COLLAR -Version w…
66927700 (2) Full qty
38
DOOR POCKET BRACKET
85336600 (2) Full qty
39
SCREW
65212000 (4) Full qty
40
Screw 6x16 ( For Tensioner Mount) F12
New       £ 0.76
248334 (2) Full qty
TC00257n
41
RH FRONT DOOR PULL -Leather- -…
864321 (1) Full qty
41
RH FRONT DOOR PULL -Leather- -…
866109 (1) Full qty
41
LH FRONT DOOR PULL -Leather- -…
864320 (1) Full qty
41
LH FRONT DOOR PULL -Leather- -…
866106 (1) Full qty
42
RH REAR DOOR PULL -Applicable …
86611200 (1) Full qty
42
RH REAR DOOR PULL -Applicable …
86611200 (1) Full qty
42
LH REAR DOOR PULL -Applicable …
86611300 (1) Full qty
42
LH REAR DOOR PULL -Applicable …
86611300 (1) Full qty
43
BRACKET
85579000 (2) Full qty
44
SCREW
14440634 (2) Full qty
45
SCREW -M5 X 12-
65366700 (4) Full qty
46
CLIP
82672700 (14) Full qty
47
SCREW -M6 X 18-
11625824 (2) Full qty
47
SCREW -Applicable for GD-
10902434 (2) Full qty
48
WATERPROOF MEMBRANE
83595900 (2) Full qty
49
SCREW
82113500 (4) Full qty
50
WASHER
12638524 (4) Full qty
51
LH DOOR PANEL FASTENER BRACKET…
86625800 (1) Full qty
51
RH DOOR PANEL FASTENER BRACKET…
86625900 (1) Full qty
52
SCREW -M6 X 12-
85478900 (2) Full qty
52
SCREW
62940900 (2) Full qty
53
CLIP
86004700 (2) Full qty
54
DOOR ALIGNMENT FOAM PAD
83888400 (2) Full qty
55
PLUG
255515 (2) Full qty
