Luggage Compartment Mats

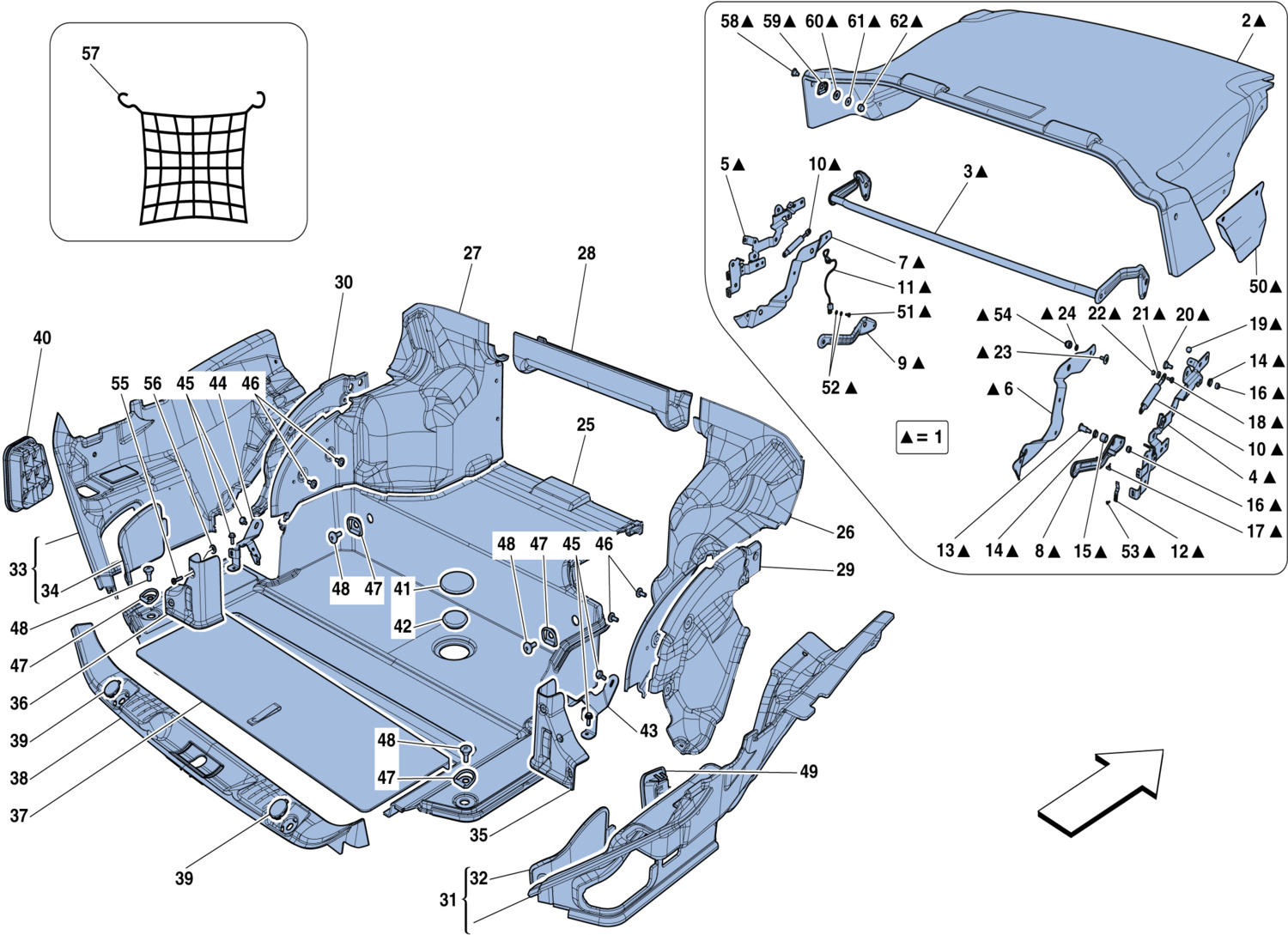

Schematic: Luggage Compartment Mats
Schematic: Luggage Compartment Mats
Loc
Part
Cond       Price
1
COMPL. SEPARATOR PANEL -Applic…
88515800 (1) Full qty
1
COMPL. SEPARATOR PANEL -Applic…
88515800 (1) Full qty
2
SEPARATOR PANEL -Applicable up…
86064500 (1) Full qty
2
SEPARATOR PANEL -Applicable fr…
88515700 (1) Full qty
3
REINFORCEMENT TUBE
82885900 (1) Full qty
4
LOWER RH BRACKET
82884700 (1) Full qty
5
LOWER LH BRACKET
82885100 (1) Full qty
6
UPPER RH BRACKET
82885300 (1) Full qty
7
UPPER LH BRACKET
82885400 (1) Full qty
8
RH REAR ARM
82884300 (1) Full qty
9
LH REAR ARM
82884400 (1) Full qty
10
STABILUS
82884500 (2) Full qty
11
PROXIMITY SENSOR
80847800 (1) Full qty
12
CLIP
81501900 (1) Full qty
13
PIN
82883500 (2) Full qty
14
BUSHING
82882500 (8) Full qty
15
SPACER
82882800 (2) Full qty
16
NUT
82883400 (16) Full qty
17
METAL BUTTON
82898300 (1) Full qty
18
PIN
82883300 (4) Full qty
19
UPPER RETAINER
81977900 (4) Full qty
20
PIN
82883600 (6) Full qty
21
SPACER
82882900 (4) Full qty
22
SELF FASTENING STUD
82885700 (4) Full qty
23
SCREW
82889500 (8) Full qty
24
WASHER -Applicable from Ass. N…
12637878 (8) Full qty
25
TANK TRIM PANEL -Applicable af…
87510800 (1) Full qty
25
TANK TRIM PANEL -Applicable af…
87510800 (1) Full qty
25
TANK TRIM PANEL -Version with …
87484400 (1) Full qty
25
TANK TRIM PANEL -Version with …
87484400 (1) Full qty
25
TANK TRIM PANEL -Version with …
87484500 (1) Full qty
25
TANK TRIM PANEL -Version with …
87484500 (1) Full qty
25
TANK TRIM PANEL -High power Hi…
87484700 (1) Full qty
25
TANK TRIM PANEL -High power Hi…
87484700 (1) Full qty
26
RH LATERAL LUGGAGE COMPARTMENT…
86062300 (1) Full qty
27
LH LATERAL LUGGAGE COMPARTMENT…
86062200 (1) Full qty
28
FRONT TRIM PANEL
86060400 (1) Full qty
29
RH GUIDE TRIM
86062500 (1) Full qty
30
LH GUIDE TRIM
86062400 (1) Full qty
31
RH LATERAL LUGGAGE COMPARTMENT…
86061600 (1) Full qty
31
RH LATERAL LUGGAGE COMPARTMENT…
86083800 (1) Full qty
32
RH COVER
86061800 (1) Full qty
32
RH COVER -High power Hi-Fi ver…
86084000 (1) Full qty
33
LH LATERAL LUGGAGE COMPARTMENT…
86061300 (1) Full qty
34
LH DOOR
86061500 (1) Full qty
35
RH SEPARATOR HOOK COVER -Not f…
85825300 (1) Full qty
35
RH SEPARATOR HOOK COVER -Versi…
86342300 (1) Full qty
36
LH SEPARATOR HOOK COVER -Not f…
85825200 (1) Full qty
36
LH SEPARATOR HOOK COVER -Versi…
86342400 (1) Full qty
37
LUGGAGE COMPARTMENT FLOOR TRIM…
86611700 (1) Full qty
38
LUGGAGE COMPARTMENT INNER SILL…
85379100 (1) Full qty
39
SURROUND
85895100 (2) Full qty
40
AIR VENT GRILLE
69763100 (1) Full qty
41
CAP
86062100 (1) Full qty
42
PLUG
14507287 (1) Full qty
43
R.H. OUTER BRACKET
81789400 (1) Full qty
44
L.H. OUTER BRACKET
81789300 (1) Full qty
45
SCREW -M6 X 18-
11625824 (2) Full qty
46
Panel Screw
New       Price on Enquiry
65933500 (4) Full qty
ET25061n
47
PLATE
81916700 (5) Full qty
48
SCREW
81916800 (5) Full qty
49
LUGGAGE COMPARTMENT COURTESY L…
239455 (1) Full qty
50
RH LATERAL SURROUND
86269600 (1) Full qty
50
LH LATERAL SURROUND
86269700 (1) Full qty
51
Screw
15687270 (1) Full qty
52
WASHER
14497704 (2) Full qty
53
RIVET
14641297 (2) Full qty
54
NUT -Applicable from Ass. No. …
14054077 (8) Full qty
55
SCREW -M5 X 20-
85692300 (4) Full qty
56
WASHER
62769800 (4) Full qty
57
LUGGAGE RETAINER NET -Luggage …
87236000 (1) Full qty
58
SCREW -Applicable from Ass. No…
88513600 (2) Full qty
59
PLATE
81916700 (2) Full qty
60
ANTI-ABRASION WASHER
81916900 (2) Full qty
61
WASHER
61148700 (2) Full qty
62
NUT -Applicable from Ass. No. …
14054077 (2) Full qty
