Chassis Completion

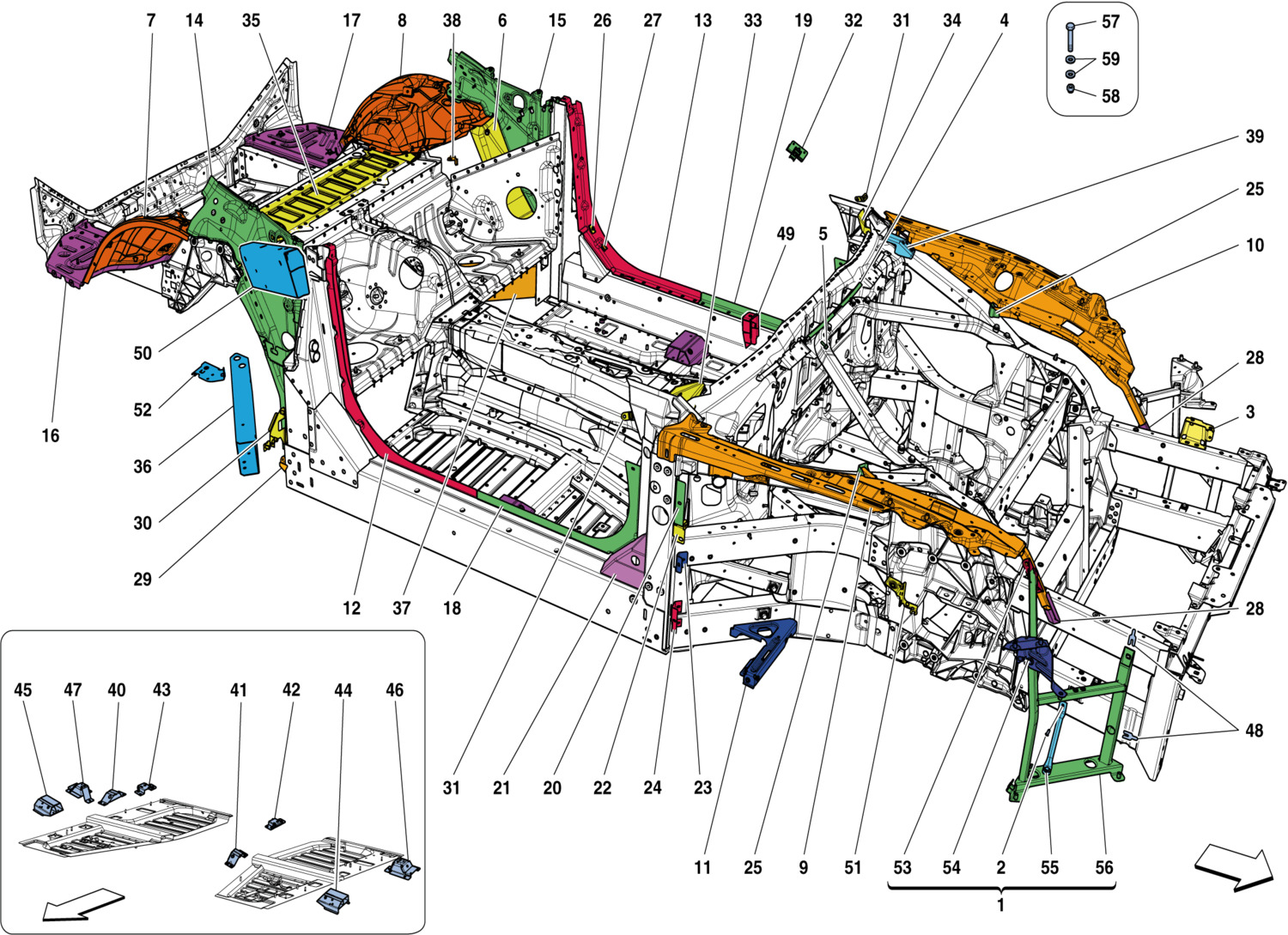

Schematic: Chassis Completion
Loc
Part
Cond       Price
1
COMPL. RH HEADLIGHT TUB -After…
85523900 (1) Full qty
1
COMPL. LH HEADLIGHT TUB -After…
85523800 (1) Full qty
2
SCREW -No longer supplied- -Re…
81591700 (6) Full qty
3
INNER LATERAL FASTENER BRACKET…
85270800 (1) Full qty
3
INNER LATERAL FASTENER BRACKET…
85270900 (1) Full qty
4
WINDSCREEN SEAL MOUNT
81929800 (1) Full qty
5
SCREW -M6 X 18-
231617 (2) Full qty
6
LH FRONT PART OF INNER REAR WH…
84368700 (1) Full qty
6
RH FRONT PART OF INNER REAR WH…
84368800 (1) Full qty
7
COMPL. RH REAR INNER WHEELHOUS…
84055000 (1) Full qty
8
COMPL. LH REAR INNER WHEELHOUS…
84055100 (1) Full qty
9
COMPL. RH FRONT FENDER MOUNT -…
85088600 (1) Full qty
10
COMPL. LH FRONT FENDER MOUNT -…
85088800 (1) Full qty
11
COMPL. LOWER MOUNT FOR RH FRON…
85270700 (1) Full qty
11
COMPL. LOWER MOUNT FOR LH FRON…
85270400 (1) Full qty
12
RH PILLAR SEAL MOUNT
83961800 (1) Full qty
13
LH PILLAR SEAL MOUNT
83961700 (1) Full qty
14
RH REAR WINDOW LIFTER MOUNT -R…
84055300 (1) Full qty
15
LH REAR WINDOW LIFTER MOUNT -R…
84055500 (1) Full qty
16
RH LATERAL CLOSURE PANEL
85400500 (1) Full qty
17
LH LATERAL CLOSURE PANEL
85400400 (1) Full qty
18
REAR FLANGE, RH A-PILLAR
83961400 (1) Full qty
19
REAR FLANGE, RH A-PILLAR
83961300 (1) Full qty
20
PILLAR FRONT FLANGE
69980300 (2) Full qty
21
RH FRONT TRUSS
289024 (1) Full qty
21
LH FRONT TRUSS
289023 (1) Full qty
22
RH BRACKET
83962800 (1) Full qty
22
LH BRACKET
83962700 (1) Full qty
23
CENTRE BRACKET
84933000 (2) Full qty
24
LOWER RH BRACKET
83963100 (1) Full qty
24
LOWER LH BRACKET
83963000 (1) Full qty
25
UPPER FRONT CONNECTOR ELEMENT …
84556700 (2) Full qty
26
LOWER OUTER LATERAL FASTENER B…
83293300 (2) Full qty
27
REAR MAT MOUNTING BRACKET
83293400 (2) Full qty
28
INTERNAL FRONT CONNECTOR ELEME…
85090700 (2) Full qty
29
LOWER CLOSURE BRACKET FOR RH F…
84762900 (1) Full qty
29
LOWER CLOSURE BRACKET FOR LH F…
84762800 (1) Full qty
30
COMPLETE R.H. REAR FIXING BRAC…
80873700 (1) Full qty
30
COMPLETE L.H. REAR FIXING BRAC…
80365000 (1) Full qty
31
BRACKET
82130200 (2) Full qty
32
LOWER BRACKET FOR LH A-PILLAR …
81316000 (1) Full qty
32
LOWER BRACKET FOR RH A-PILLAR …
81315900 (1) Full qty
33
RH WINDSCREEN VALENCE PANEL BR…
256278 (1) Full qty
34
LH WINDSCREEN VALENCE PANEL BR…
256277 (1) Full qty
35
COMPL. TANK COVER PANEL
279404 (1) Full qty
36
LOWER RH REAR DIAGONAL BRACE -…
296843 (1) Full qty
36
LOWER RH REAR DIAGONAL BRACE -…
270366 (1) Full qty
37
LOWER LH REAR DIAGONAL BRACE
302637 (1) Full qty
38
LH OUTER TRIM BRACKET
246704 (1) Full qty
38
RH OUTER TRIM BRACKET
246794 (1) Full qty
39
COMPL. WIPER SYSTEM BRACKET -N…
294904 (1) Full qty
39
COMPL. WIPER SYSTEM BRACKET -A…
295804 (1) Full qty
40
INNER RH FRONT SEAT BRACKET
257928 (1) Full qty
41
INNER LH FRONT SEAT BRACKET
257930 (1) Full qty
42
INNER LH REAR SEAT BRACKET
259980 (1) Full qty
43
INNER RH REAR SEAT BRACKET
259981 (1) Full qty
44
OUTER LH FRONT SEAT BRACKET
273739 (1) Full qty
45
OUTER RH FRONT SEAT BRACKET
273757 (1) Full qty
46
OUTER LH REAR SEAT BRACKET
273740 (1) Full qty
47
OUTER RH REAR SEAT BRACKET
273759 (1) Full qty
48
METAL PLATE
86225600 (2) Full qty
49
LOWER DASHBOARD CROSS MEMBER B…
237005 (1) Full qty
49
LOWER DASHBOARD CROSS MEMBER B…
244766 (1) Full qty
50
RH REAR FLANK UPPER BEAM
279413 (1) Full qty
50
LH REAR FLANK UPPER BEAM
279414 (1) Full qty
51
RH FRONT BRAKE BRACKET
271437 (1) Full qty
51
LH FRONT BRAKE BRACKET
271436 (1) Full qty
52
COMPL. RH REAR JOINT BRACKET
273804 (1) Full qty
52
COMPL. LH REAR JOINT BRACKET
273803 (1) Full qty
53
INNER RH FENDER BRACKET
85524400 (1) Full qty
53
INNER LH FENDER BRACKET
85524100 (1) Full qty
54
OUTER RH FENDER BRACKET
85525900 (1) Full qty
54
OUTER LH FENDER BRACKET
85525600 (1) Full qty
55
RH INTERCOOLER CROSS PIECE TIE…
85299600 (1) Full qty
55
LH INTERCOOLER CROSS PIECE TIE…
85297700 (1) Full qty
56
COMPL. RH INTERCOOLER TRELLIS
86901900 (1) Full qty
56
COMPL. LH INTERCOOLER TRELLIS
86901800 (1) Full qty
57
SCREW -M20 X 1.5 X 90-
15988921 (2) Full qty
58
NUT
12164311 (2) Full qty
59
WASHER
14497101 (4) Full qty
