Structures And Elements, Front Of Vehicle

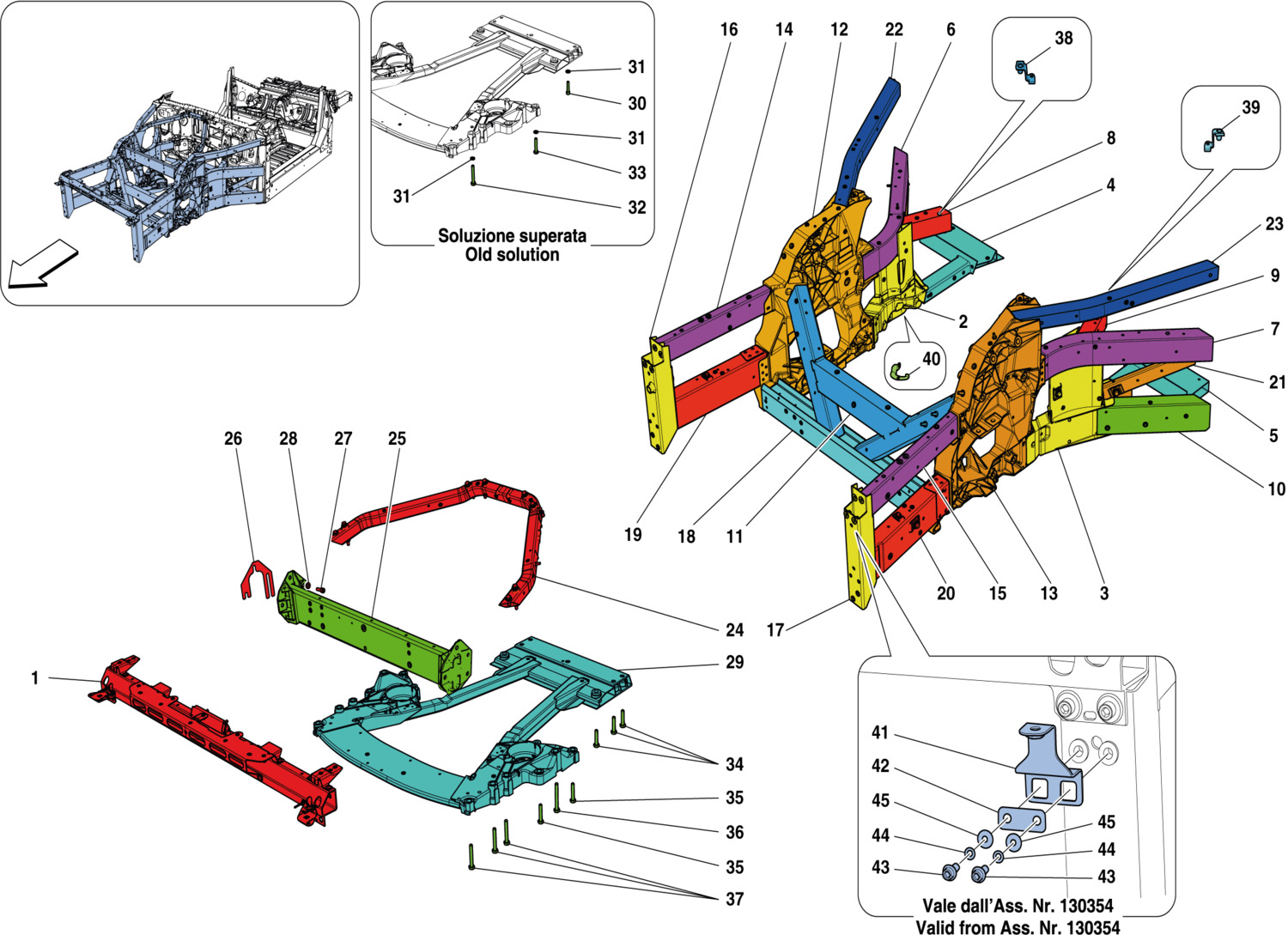

Schematic: Structures And Elements, Front Of Vehicle
Schematic: Structures And Elements, Front Of Vehicle
Loc
Part
Cond       Price
1
COMPL. FRONT BUMPER CROSS MEMB…
85100700 (1) Full qty
1
COMPL. FRONT BUMPER CROSS MEMB…
87431500 (1) Full qty
2
RH FRONT LOWER -Request ASM au…
294381 (1) Full qty
3
LH FRONT LOWER -Request ASM au…
294380 (1) Full qty
4
LOWER RH EXTRUSION -Request AS…
292043 (1) Full qty
4
LOWER RH EXTRUSION -Request AS…
295736 (1) Full qty
5
LOWER LH EXTRUSION -Request AS…
292042 (1) Full qty
5
LOWER LH EXTRUSION -Request AS…
295816 (1) Full qty
6
RH CENTRAL EXTERNAL DIAGONAL F…
296705 (1) Full qty
7
LH CENTRAL EXTERNAL DIAGONAL F…
296713 (1) Full qty
8
RH CENTRAL INTERNAL DIAGONAL F…
294351 (1) Full qty
9
LH CENTRAL INTERNAL DIAGONAL F…
294397 (1) Full qty
10
LOWER LH EXTERNAL DIAGONAL FIR…
294393 (1) Full qty
10
LOWER RH EXTERNAL DIAGONAL FIR…
294396 (1) Full qty
11
COMPL. FRONT TRELLIS -Request …
296702 (1) Full qty
12
RH FRONT SUSPENSION MOUNT CAST…
288863 (1) Full qty
12
RH FRONT SUSPENSION MOUNT CAST…
301077 (1) Full qty
13
LH FRONT SUSPENSION MOUNT CAST…
288853 (1) Full qty
14
RH UPPER FRONT STRUT -Request …
296681 (1) Full qty
15
LH UPPER FRONT STRUT -Request …
296685 (1) Full qty
16
RH FRONT CRASH BOX CROSS MEMBE…
298513 (1) Full qty
17
LH FRONT CRASH BOX CROSS MEMBE…
298391 (1) Full qty
18
COMPL. FRONT CROSS MEMBER OF F…
296695 (1) Full qty
19
RH LOWER FRONT STRUT -Request …
296721 (1) Full qty
20
LH LOWER FRONT STRUT -Request …
296722 (1) Full qty
21
CONNECTION BETWEEN PILLAR AND …
294401 (1) Full qty
21
CONNECTION BETWEEN PILLAR AND …
294403 (1) Full qty
22
RH UPPER EXTERNAL DIAGONAL FIR…
296704 (1) Full qty
23
LH UPPER EXTERNAL DIAGONAL FIR…
295439 (1) Full qty
24
INTERNAL ENGINE COMPARTMENT DI…
288871 (1) Full qty
24
INTERNAL ENGINE COMPARTMENT DI…
295767 (1) Full qty
25
COMPL. STRUT TOWER CONNECTOR C…
322028 (1) Full qty
25
COMPL. STRUT TOWER CONNECTOR C…
322028 (1) Full qty
26
STRUT TOWER CONNECTOR CROSS ME…
279441 (1) Full qty
26
STRUT TOWER CONNECTOR CROSS ME…
279441 (2) Full qty
27
SCREW
14814434 (8) Full qty
28
Washer
10519624 (8) Full qty
29
COMPL. ENGINE SUBFRAME -Reques…
294410 (1) Full qty
29
COMPL. ENGINE SUBFRAME -Reques…
985294410 (1) Full qty
30
SCREW -No longer supplied-
14307821 (2) Full qty
31
WASHER
12641024 (6) Full qty
32
SCREW
16237374 (2) Full qty
33
SCREW -No longer supplied-
15888724 (2) Full qty
34
SCREW -M10 X 1.25 X 40-
299582 (6) Full qty
35
SCREW -M10 X 1.25 X 55-
299580 (4) Full qty
36
SCREW -M10 X 1.25 X 90-
299579 (2) Full qty
37
SCREW -M10 X 1.25 X 70-
299578 (6) Full qty
38
RH FRONT SENSOR CABLE MOUNTING…
300536 (1) Full qty
39
LH FRONT SENSOR CABLE MOUNTING…
300537 (1) Full qty
40
BRACKET
305547 (1) Full qty
41
HEADLIGHT FASTENER BRACKET -Ap…
87912600 (2) Full qty
42
PLATE -Applicable from Ass. No…
87286200 (2) Full qty
43
SCREW
14433126 (4) Full qty
44
WASHER
11197777 (4) Full qty
45
WASHER
12643778 (4) Full qty
