A.C Unit : Dashboard Devices

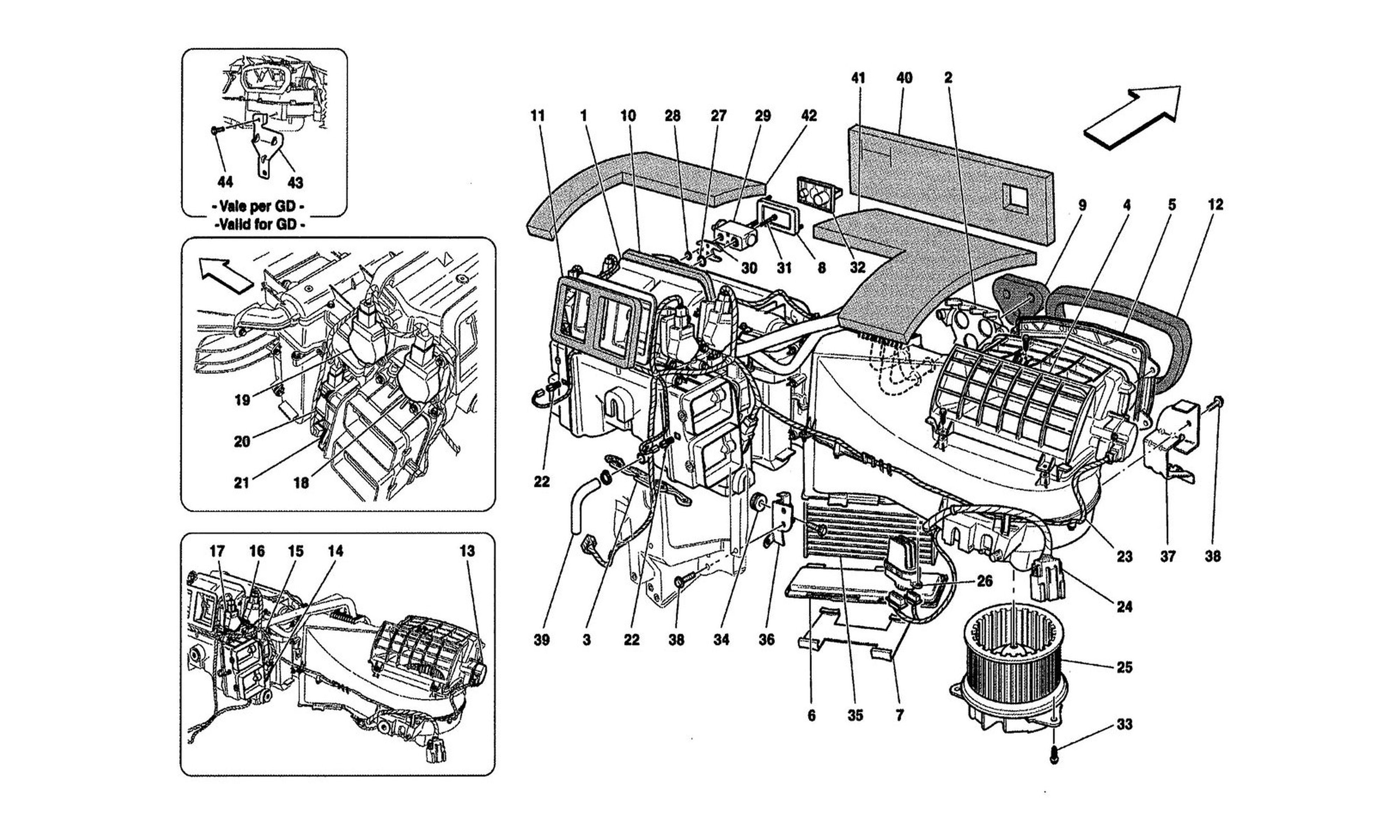

Schematic: A.C Unit : Dashboard Devices
Loc
Part
Cond       Price
1
COMPLETE AIR CONDITION SET -No…
83357700 (1) Full qty
1
COMPLETE AIR CONDITION SET -Ap…
83357800 (1) Full qty
2
PIPE RETAINER
82045500 (1) Full qty
3
CAP
82045600 (1) Full qty
4
GRILLE
82045700 (1) Full qty
5
FLANGE
82045800 (1) Full qty
6
FILTER COVER
68390600 (1) Full qty
7
COVER FASTENER
68390700 (1) Full qty
8
GASKET
82046200 (1) Full qty
9
WATER PIPE FILLER FOAM
82046400 (1) Full qty
10
DEFROSTER DUCT FILLER FOAM
82046600 (1) Full qty
11
FRONT FILLER FOAM
82046800 (1) Full qty
12
INTAKE FILLER FOAM
82046900 (1) Full qty
13
ACTUATOR
82047200 (1) Full qty
13
ACTUATOR -Applicable for GD-
82048300 (1) Full qty
14
ACTUATOR
82047300 (1) Full qty
15
ACTUATOR
82047400 (1) Full qty
16
ACTUATOR
82047500 (1) Full qty
17
ACTUATOR
82047600 (1) Full qty
18
ACTUATOR
82047700 (1) Full qty
19
ACTUATOR
82047900 (1) Full qty
20
ACTUATOR
82048100 (1) Full qty
21
ACTUATOR
82048200 (1) Full qty
22
AIR SENSOR
68390100 (2) Full qty
23
CABLE
84240800 (1) Full qty
24
MAIN WIRING HARNESS -Not for G…
82048600 (1) Full qty
25
FAN
82048800 (1) Full qty
25
FAN
82048900 (1) Full qty
26
LPM2
82049000 (1) Full qty
27
TXV SERVICE KIT
82073600 (1) Full qty
28
TXV SERVICE KIT
82073600 (1) Full qty
29
TXV SERVICE KIT
82073600 (1) Full qty
30
TXV SERVICE KIT
82073600 (1) Full qty
31
TXV SERVICE KIT
82073600 (2) Full qty
32
CAP
82049600 (1) Full qty
33
SCREW
62771900 (0) Full qty
34
RUBBER PAD
68389800 (0) Full qty
35
New       £ 64.86
82035700 (1) Full qty
AC00190n
36
RH BRACKET
80637300 (1) Full qty
36
LH BRACKET
80518900 (1) Full qty
37
SHIELD BRACKET
80519000 (1) Full qty
38
SCREW
16286024 (0) Full qty
39
PIPE FOR WATER OUTLET
81022500 (1) Full qty
40
CENTRAL INSULATION -Not for GD…
81341200 (1) Full qty
40
CENTRE INSULATION
82332100 (1) Full qty
41
R.H. INSULATION -Not for GD-
81341400 (1) Full qty
41
RH INSULATION
82332300 (1) Full qty
42
LH DASHBOARD INSULATION -Not f…
81341300 (1) Full qty
42
LH DASHBOARD INSULATION -Appli…
82332200 (1) Full qty
43
AC UNIT BRACKET ON FIREWALL -A…
80904800 (1) Full qty
44
SCREW
16286024 (1) Full qty
