A.C Unit : Engine Compartment Devices

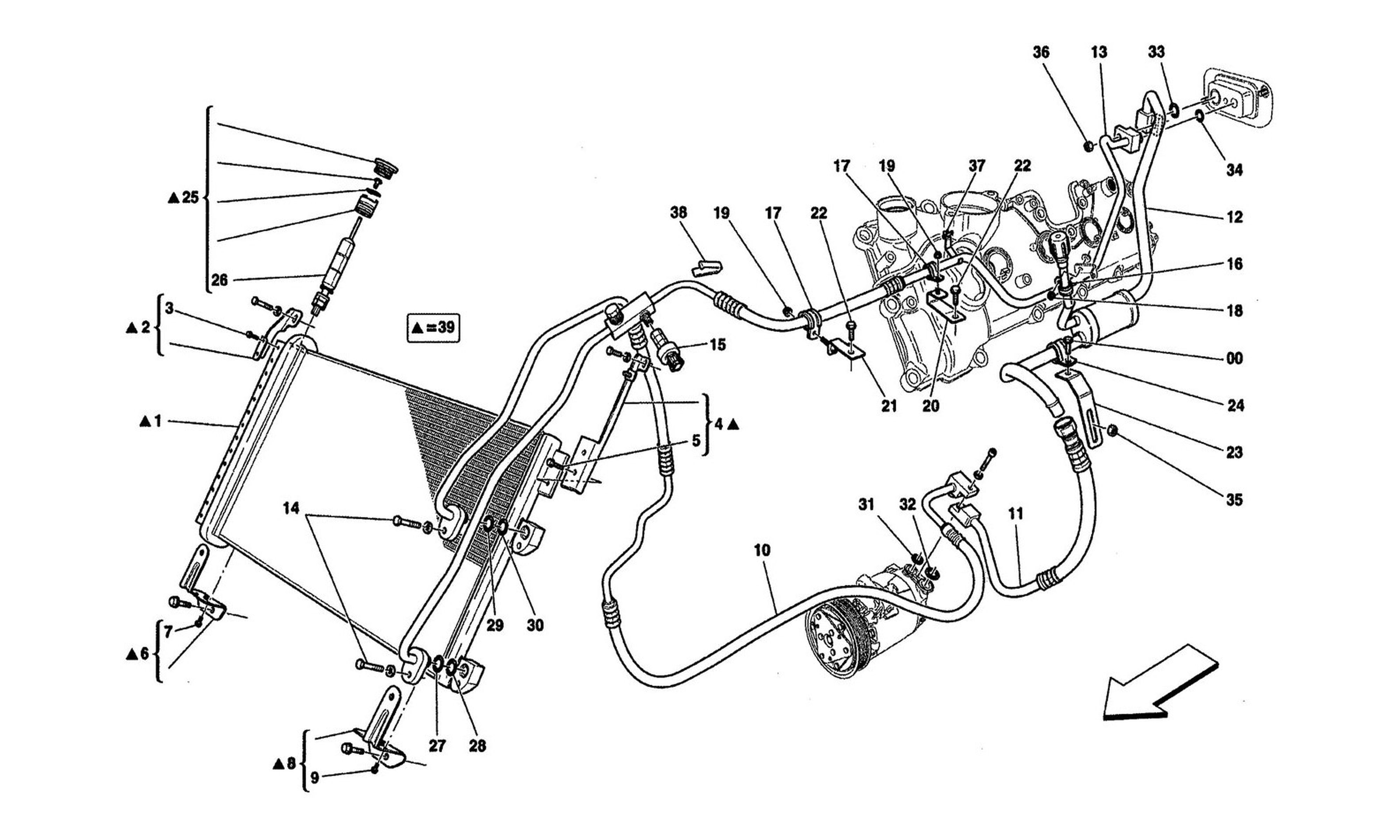

Schematic: A.C Unit : Engine Compartment Devices
Loc
Part
Cond       Price
1
AC CONDENSER COMPLETE WITH FIL…
240589 (1) Full qty
2
COMPLETE R.H. UPPER BRACKET
254352 (1) Full qty
3
SCREW
242618 (2) Full qty
4
COMPLETE L.H. UPPER BRACKET
254353 (1) Full qty
5
SCREW
242618 (2) Full qty
6
COMPLETE R.H. LOWER BRACKET
254354 (1) Full qty
7
SCREW
242618 (2) Full qty
8
COMPLETE L.H. LOWER BRACKET
254355 (1) Full qty
9
SCREW
242618 (2) Full qty
10
PIPE FROM COMPRESSOR TO CONDEN…
238503 (1) Full qty
11
PIPE A.C.-COMPRESSOR
241438 (1) Full qty
12
PIPE HVAC-COMPRESSOR
238501 (1) Full qty
13
HVAC-CONDENSER PIPE -Applicabl…
258885 (1) Full qty
13
HVAC-CONDENSER PIPE -Applicabl…
258885 (1) Full qty
14
SCREW
13832411 (2) Full qty
15
PRESSOSTAT
65628200 (1) Full qty
15
HIGH PRESSURE TRANSDUCER
80552400 (1) Full qty
16
Clamp
10441290 (1) Full qty
17
Hose fastening bracket
10441490 (2) Full qty
18
NUT
14065921 (1) Full qty
19
Nut
14059111 (2) Full qty
20
REAR HIGH PRESSURE PIPE BRACKE…
244753 (1) Full qty
21
FRONT HIGH PRESSURE PIPE BRACK…
244759 (1) Full qty
22
SCREW -M5 X 16-
16285127 (2) Full qty
23
LOW PRESSURE PIPE BRACKET
255846 (1) Full qty
23
LOW PRESSURE PIPE BRACKET
255846 (1) Full qty
24
Small bracket with sheathing
10441590 (1) Full qty
25
DEHYDRATING FILTER KIT
254356 (1) Full qty
26
DEHYDRATING FILTER
254649 (1) Full qty
27
O-RING
68392000 (1) Full qty
28
O-RING
68392100 (1) Full qty
28
O-RING
68392100 (1) Full qty
29
O-RING
66309700 (1) Full qty
30
O-RING
68392700 (1) Full qty
31
O.R. GASKET
67085400 (1) Full qty
32
GASKET
67085300 (1) Full qty
33
GASKET
67085300 (1) Full qty
34
GASKET
82068300 (1) Full qty
35
NUT
14059114 (1) Full qty
36
NUT
14040714 (1) Full qty
37
PIPE BRACKET -Applicable up to…
82040100 (1) Full qty
38
CLIP
234286 (2) Full qty
38
CLIP -Applicable from Ass. No.…
258886 (2) Full qty
39
AC CONDENSER COMPLETE WITH FIL…
240589 (1) Full qty
