Brake Servo System

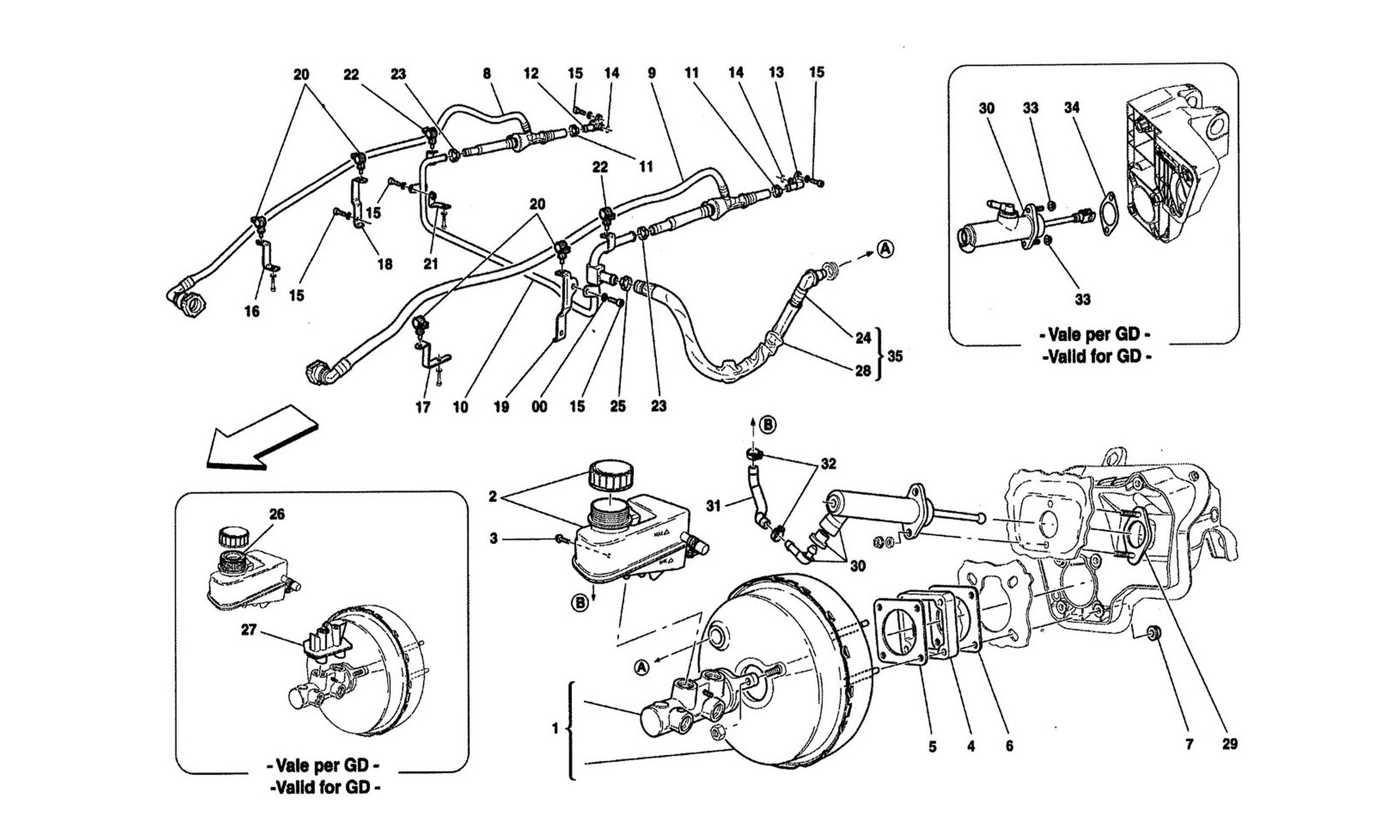

Schematic: Brake Servo System
Schematic: Brake Servo System
Loc
Part
Cond       Price
1
COMPLETE BRAKE BOOSTER
238982 (1) Full qty
2
OIL TRAY
242849 (1) Full qty
3
SCREW
241537 (1) Full qty
4
SHIM
196080 (1) Full qty
4
SHIM -Applicable for GD-
258152 (1) Full qty
5
GASKET
190378 (1) Full qty
6
GASKET
220309 (1) Full qty
7
NUT
12578211 (4) Full qty
8
R.H. DEPRESSION PIPE
293081 (1) Full qty
9
L.H. DEPRESSION PIPE
250245 (1) Full qty
10
RIGID PIPE -Not for GD-
255860 (1) Full qty
10
RIGID PIPE -Not for GD-
255860 (1) Full qty
10
RIGID PIPE -Applicable for GD-…
255872 (1) Full qty
11
COLLAR -D. 15.7-
13432070 (2) Full qty
12
RH UNION
243207 (1) Full qty
13
LH UNION
243208 (1) Full qty
14
O Ring
New       Price on Enquiry
123475 (2) Full qty
CC11704n
15
SCREW -M6 X 14-
231616 (8) Full qty
16
RH BRACKET -Applicable up to A…
247122 (1) Full qty
17
LH BRACKET -Applicable up to A…
247133 (1) Full qty
18
R.H. CENTRAL BRACKET
249651 (1) Full qty
19
L.H. CENTRAL BRACKET
249653 (1) Full qty
20
CLIP
67885100 (4) Full qty
21
CENTRAL BRACKET
249654 (1) Full qty
22
CLIP
247440 (2) Full qty
23
COLLAR -D. 15.7-
13432070 (2) Full qty
24
PIPE FROM RIGID PIPE TO BRAKE …
250207 (1) Full qty
24
PIPE FROM RIGID PIPE TO BRAKE …
252454 (1) Full qty
24
PIPE FROM RIGID PIPE TO COMPLE…
257723 (1) Full qty
25
RING CLAMP
178052 (1) Full qty
26
GASKET
241550 (2) Full qty
27
ADAPTER UNION
241549 (1) Full qty
28
HEAT SHIELD -Not for GD-
252245 (1) Full qty
28
HEAT SHIELD -Applicable for GD…
252584 (1) Full qty
29
SMALL PLATE FIXING PUMP -Not f…
216078 (1) Full qty
30
CLUTCH CONTROL PUMP -Not for G…
205301 (1) Full qty
30
CLUTCH CONTROL PUMP -Applicabl…
249923 (1) Full qty
31
PIPE FROM TANK TO PUMP -Not fo…
243705 (1) Full qty
31
PIPE FROM TANK TO PUMP -Applic…
243722 (1) Full qty
32
COLLAR FOR SLEEVE -Not for DCT…
13432370 (2) Full qty
33
NUT
12578111 (2) Full qty
34
GASKET -Applicable for GD- -No…
194025 (1) Full qty
35
PIPE FROM RIGID PIPE TO COMPLE…
279708 (1) Full qty
35
PIPE FROM RIGID PIPE TO COMPLE…
256020 (1) Full qty
35
PIPE FROM RIGID PIPE TO COMPLE…
257723 (2) Full qty
