Crankcase

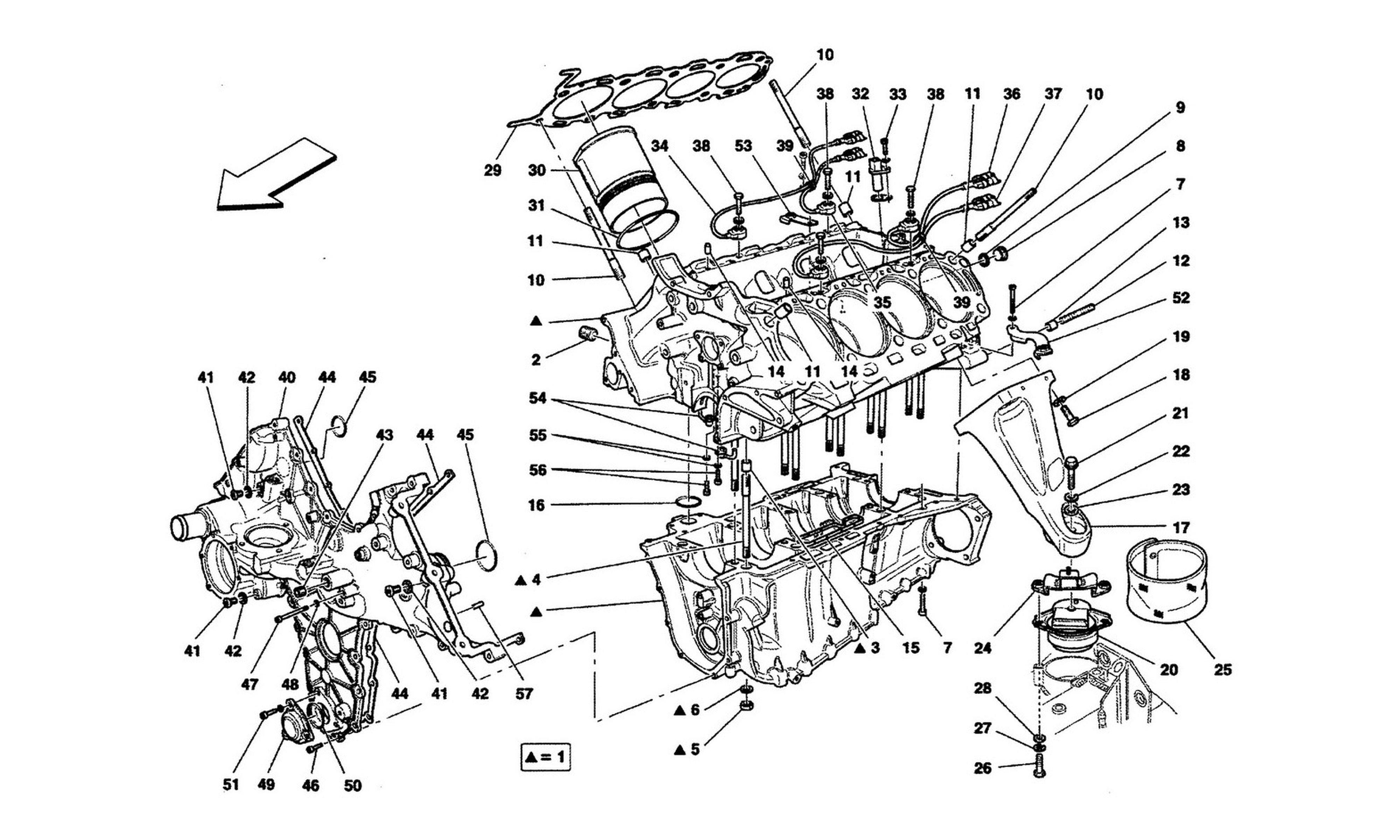

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
COMPLETE CRANKCASE -Applicable…
243454 (1) Full qty
2
CAP
14325340 (2) Full qty
3
ALIGNMENT DOWEL
176421 (2) Full qty
4
STUD BOLT -Total length 154 mm…
217794 (8) Full qty
4
STUD BOLT -Total length 184 mm…
219800 (2) Full qty
4
STUD BOLT
217796 (8) Full qty
4
STUD BOLT -Total length 169 mm…
219801 (2) Full qty
5
Nut
133988 (20) Full qty
6
WASHER
178348 (20) Full qty
7
SCREW -M6 X 25-
231620 (13) Full qty
7
SCREW -M6 X 40-
231623 (2) Full qty
8
THREADED PLUG
10304511 (1) Full qty
9
Copper Washer 22x27mm
New       £ 0.30
10263460 (1) Full qty
CC11530n
10
STUD BOLT
217968 (20) Full qty
11
ALIGNMENT DOWEL
185360 (4) Full qty
12
STUD BOLT
13546734 (4) Full qty
12
STUD BOLT
13546834 (2) Full qty
12
STUD BOLT -M10 X 1.25 X 20- -S…
13547034 (1) Full qty
12
STUD BOLT -Shaft length 55 mm-…
254979 (1) Full qty
12
STUD BOLT -Shaft length 60 mm-…
13547134 (1) Full qty
12
STUD BOLT -Shaft length 60 mm-…
254982 (1) Full qty
13
Dowel
100052 (2) Full qty
14
CENTERING DOWEL
177727 (2) Full qty
15
GASKET
236143 (2) Full qty
16
GASKET
140071 (1) Full qty
17
L.H. BRACKET FORMOTOR FIXING
244634 (1) Full qty
17
R.H. BRACKET FORMOTOR FIXING
244633 (1) Full qty
18
SCREW
11306934 (8) Full qty
19
WASHER
11190574 (8) Full qty
20
ENGINE SUPPORT FLEXIBLE PAD
269817 (2) Full qty
21
SCREW
11112834 (2) Full qty
22
Washer
127498 (2) Full qty
23
Washer
13550521 (2) Full qty
24
BRACKET FOR FULL BUMP POSITION…
278261 (2) Full qty
25
HEAT SHIELD
247858 (2) Full qty
26
SCREW
15972224 (4) Full qty
27
Washer
127497 (4) Full qty
28
WASHER
14496624 (4) Full qty
29
R.H. HEAD GASKET
212219 (1) Full qty
29
Head Gasket LH
212220 (1) Full qty
30
CYLINDER LINER
243339 (8) Full qty
31
O-RING
186251 (24) Full qty
32
ANGULAR SPEED SENSOR -Not for …
236527 (1) Full qty
33
SCREW -M6 X 20-
231618 (1) Full qty
34
COMPLETE SENSOR FOR FIRING -RH…
246802 (1) Full qty
35
COMPLETE SENSOR FOR FIRING -RH…
246803 (1) Full qty
36
COMPLETE SENSOR FOR FIRING -LH…
246804 (1) Full qty
37
COMPLETE SENSOR FOR FIRING -LH…
246805 (1) Full qty
38
SCREW -M8 X 30-
231629 (4) Full qty
39
Clamp
10441190 (3) Full qty
40
COMPLETE FRONT COVER
254154 (1) Full qty
41
CAP
235748 (3) Full qty
42
Gasket
10296160 (3) Full qty
43
THREADED PLUG
235754 (1) Full qty
44
FRONT COVER GASKET
243459 (1) Full qty
45
Front Cover O Ring
New       Price on Enquiry
183010 (2) Full qty
TC14204n
46
SCREW -M6 X 18-
231617 (18) Full qty
46
SCREW -M6 X 35-
231622 (10) Full qty
47
SCREW
10589624 (1) Full qty
48
Conic Washer 6.4x12x1.2
New       Price on Enquiry
11197774 (1) Full qty
GE35524n
49
COVER
247185 (1) Full qty
50
GASKET
246325 (1) Full qty
51
SCREW -M6 X 20-
231618 (3) Full qty
52
BRACKET
243232 (1) Full qty
53
BRACKET
257212 (2) Full qty
54
PISTONS COOLING NOZZLE
175657 (8) Full qty
55
WASHER
11181474 (8) Full qty
56
SCREW
14302921 (8) Full qty
57
ALIGNMENT DOWEL
175611 (2) Full qty
