Cooling System Radiator And Header Tank

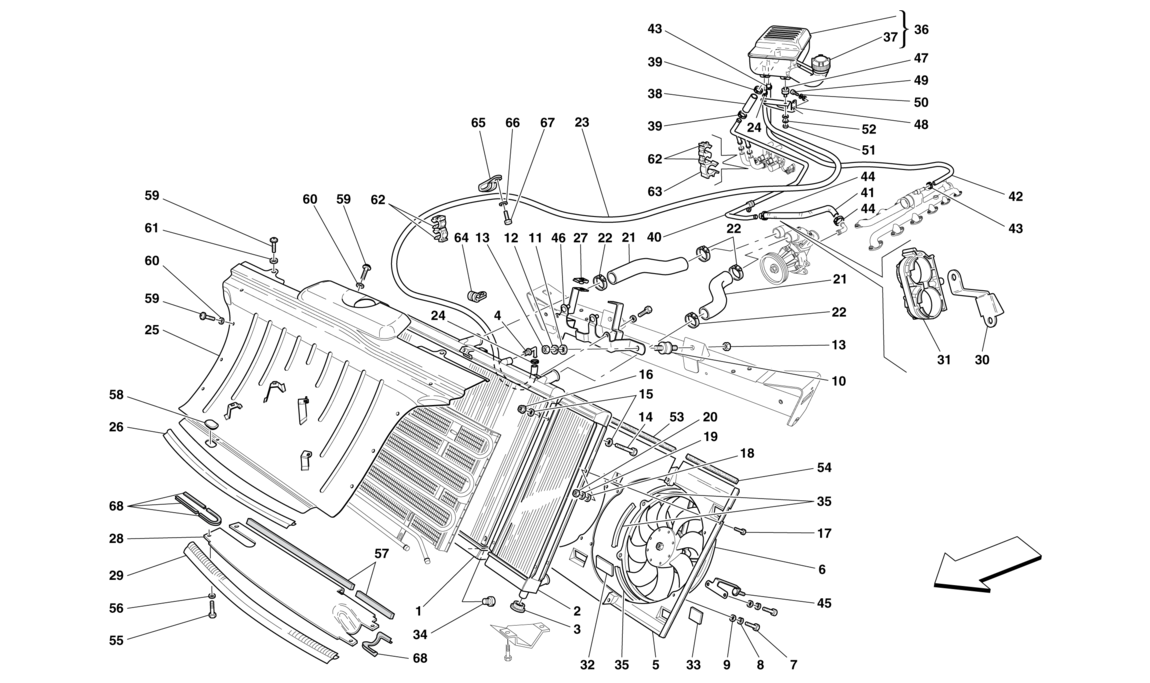

Schematic: Cooling System Radiator And Header Tank
Schematic: Cooling System Radiator And Header Tank
Loc
Part
Cond       Price
1
WATER RADIATOR
194142 (1) Full qty
2
OIL RADIATOR
194144 (1) Full qty
3
RUBBER PAD FOR PIN
138926 (2) Full qty
4
THREADED CONNECTOR
201040 (1) Full qty
5
COWL FOR ELECTRIC FANS
181601 (1) Full qty
6
COMPLETE ELECTRIC FAN
186917 (2) Full qty
6
COMPLETE ELECTRIC FAN
208819 (2) Full qty
7
SCREW
14304324 (8) Full qty
8
WASHER
12637824 (8) Full qty
9
Washer
127493 (8) Full qty
10
FASTENER BUSHING
157650 (2) Full qty
11
Washer
12646724 (2) Full qty
12
Wavy Lock Washer 8mm
127496 (2) Full qty
13
Nut
133989 (4) Full qty
14
SCREW
15201024 (1) Full qty
15
WASHER
12637824 (2) Full qty
16
NUT
14058311 (1) Full qty
17
Screw
14305224 (4) Full qty
18
WASHER
12648224 (4) Full qty
19
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
20
NUT
15896214 (4) Full qty
21
SLEEVE
190637 (2) Full qty
22
SCREW COLLAR
13000690 (4) Full qty
23
PIPE FROM RADIATOR TO HEADER T…
157746 (1) Full qty
23
PIPE FROM RADIATOR TO HEADER T…
213721 (1) Full qty
24
RING CLAMP
177995 (2) Full qty
25
uPPER AIR DUCT
67781800 (1) Full qty
25
uPPER AIR DUCT
80285200 (1) Full qty
26
AIR DUCT SEAL
68114900 (1) Full qty
27
BRACKET WITH COLLAR -Version w…
66927700 (2) Full qty
28
LOWER AIR DUCT
66951500 (1) Full qty
29
AIR DUCT SEAL
68114800 (1) Full qty
30
TUBES MOUNTING BRACKET
199474 (1) Full qty
31
CLIP
198101 (1) Full qty
32
STRIP
155441 (1) Full qty
33
STRIP
183649 (5) Full qty
34
Radiator Drain Plug 550/575/612
New       £ 12.11
174538 (1) Full qty
CS12063n
35
GASKET
195910 (12) Full qty
36
HEADER TANK
204043 (1) Full qty
36
HEADER TANK
235336 (1) Full qty
37
HEADER TANK CAP
195999 (1) Full qty
38
RUBBER PIPE
124028 (1) Full qty
38
RUBBER PIPE
214257 (1) Full qty
38
RUBBER PIPE
68124600 (1) Full qty
38
RUBBER PIPE
245090 (1) Full qty
39
COLLAR FOR HOSE UNION
186680 (2) Full qty
39
COLLAR FOR HOSE UNION
13432908 (2) Full qty
39
Clamp
13000490 (2) Full qty
40
RIGID PIPE
204029 (1) Full qty
40
RIGID PIPE
207017 (1) Full qty
41
RUBBER PIPE
199270 (1) Full qty
42
RUBBER PIPE
155618 (1) Full qty
42
RUBBER PIPE
207763 (1) Full qty
43
RING CLAMP
177995 (2) Full qty
43
CLAMP
257361 (2) Full qty
44
COLLAR FOR HOSE UNION
186680 (2) Full qty
44
COLLAR FOR HOSE UNION
13432908 (2) Full qty
45
TUBES MOUNTING BRACKET
200783 (1) Full qty
46
RADIATOR MOUNTING BRACKET
199599 (1) Full qty
47
Fuel Pump Mounting
102947 (3) Full qty
47
Mount
New       Price on Enquiry
102947 (3) Full qty
GE00644n
48
HEADER TANK MOUNTING BRACKET
202910 (1) Full qty
49
Screw
10902024 (2) Full qty
50
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
51
NUT
15896214 (3) Full qty
52
Clutch Bolt Wavy Washer 550/57…
127494 (3) Full qty
53
GASKET
181602 (2) Full qty
54
GASKET
181603 (2) Full qty
55
SCREW -M5 X 16-
16285127 (4) Full qty
56
Washer
12638177 (4) Full qty
56
WASHER
12638178 (4) Full qty
57
VIBRATION DAMPER
81190800 (1) Full qty
58
CAP
62797700 (1) Full qty
59
Screw 5 x 20
New       £ 2.15
169815 (12) Full qty
BW00059n
60
Washer
12638177 (10) Full qty
60
WASHER
12638178 (10) Full qty
61
WASHER
12647777 (2) Full qty
62
CLIP -Not for CINA, USA, CDN, …
145543 (10) Full qty
63
FIXING CLIP
140730 (2) Full qty
64
Small bracket with sheathing
10441590 (1) Full qty
65
Strap
10441990 (1) Full qty
66
WASHER
12637824 (1) Full qty
67
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
68
GASKET
66761200 (4) Full qty
