Electric Front Seat Seat Belts And Devices

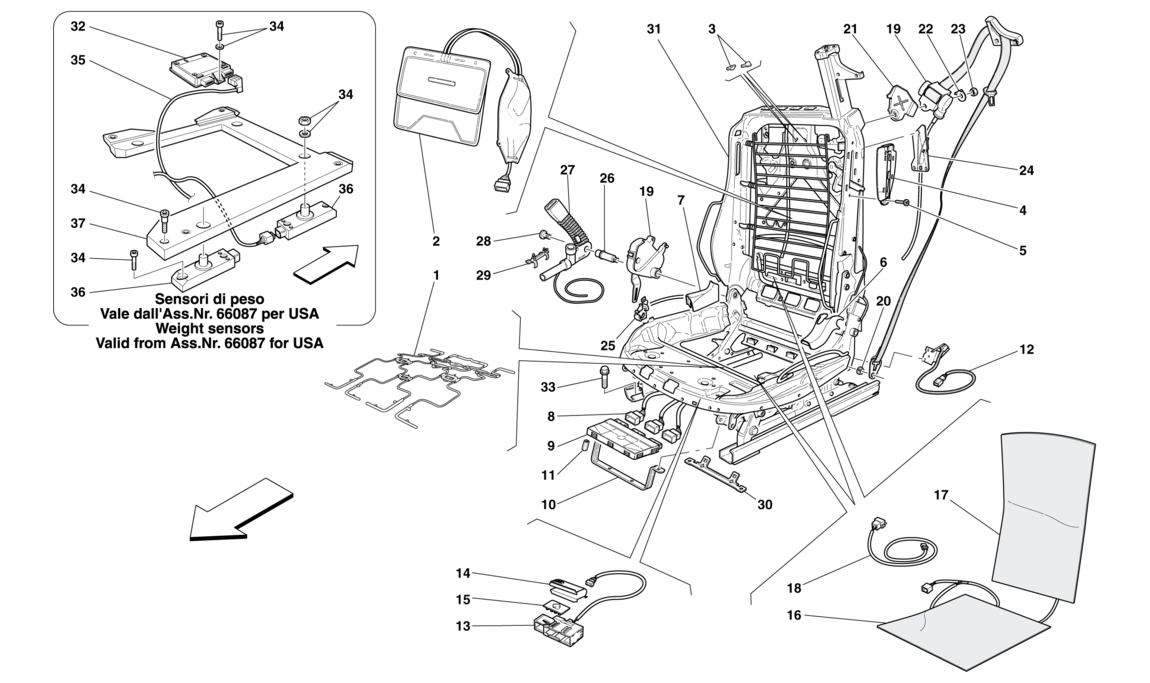

Schematic: Electric Front Seat Seat Belts And Devices
Schematic: Electric Front Seat Seat Belts And Devices
Loc
Part
Cond       Price
1
CUSHION MEMBRANE
68450900 (2) Full qty
2
LUMBAR SUPPORT ADJUSTMENT
68448600 (2) Full qty
3
BELT RETRACTOR FASTENER PIN CO…
68451000 (4) Full qty
4
RH RELEASE LEVER SURROUND MOUN…
68451100 (1) Full qty
4
LH RELEASE LEVER SURROUND MOUN…
68451200 (1) Full qty
5
SCREW
68451300 (4) Full qty
6
RH OUTER REAR PROTECTION
68451400 (1) Full qty
6
LH OUTER REAR PROTECTION
68451500 (1) Full qty
7
RH INNER REAR PROTECTION
68451600 (1) Full qty
7
LH INNER REAR PROTECTION
68451700 (1) Full qty
8
WASHER
198087 (1) Full qty
8
WASHER
198087 (1) Full qty
8
RH SEAT WIRING HARNESS
221510 (1) Full qty
8
RH SEAT WIRING HARNESS
213163 (1) Full qty
8
LH SEAT WIRING HARNESS
198088 (1) Full qty
8
LH SEAT WIRING HARNESS
213164 (1) Full qty
9
ECU
197590 (2) Full qty
9
ECU
221681 (2) Full qty
9
ECU
221681 (2) Full qty
9
ECU
221681 (2) Full qty
9
ECU
230748 (1) Full qty
10
ECU MOUNTING BRACKET
68451800 (2) Full qty
11
SHIM
68451900 (4) Full qty
12
RH EASY ENTRY SYSTEM
67585800 (1) Full qty
12
LH EASY ENTRY SYSTEM
67585900 (1) Full qty
13
PRE-TENSIONED CABLE
68452000 (2) Full qty
14
CONNECTOR COVER
68452100 (2) Full qty
15
CONNECTOR FASTENER CLIP
68452200 (2) Full qty
16
CUSHION HEATING PAD
191544 (2) Full qty
17
BACKREST HEATING PAD
191545 (2) Full qty
18
HEATING PAD WIRING HARNESS
68455600 (2) Full qty
19
RH SEAT BELT
67736200 (1) Full qty
19
RH SEAT BELT
68071500 (1) Full qty
19
LH SEAT BELT
67736400 (1) Full qty
19
LH SEAT BELT
805926.. (1) Full qty
19
RH SEAT BELT
805924.. (1) Full qty
19
RH SEAT BELT
805923.. (1) Full qty
20
BUSHING
68452300 (2) Full qty
21
RH BELT RETRACTOR MOUNTING BRA…
68075500 (1) Full qty
21
LH BELT RETRACTOR MOUNTING BRA…
68075600 (1) Full qty
22
RH COMPENSATOR SHIM
68075700 (1) Full qty
22
LH COMPENSATOR SHIM
68075800 (1) Full qty
23
NUT
68452400 (2) Full qty
24
CABLE RETAINER FOR RH BELT RET…
68452500 (1) Full qty
24
CABLE RETAINER FOR LH BELT RET…
68452600 (1) Full qty
25
WHITE CLIP, TUNNEL SIDE
68452700 (2) Full qty
26
ADJUSTER FASTENER PIN
68452800 (2) Full qty
27
RH BUCKLE STALK
68152600 (1) Full qty
27
LH BUCKLE STALK
68152500 (1) Full qty
28
SCREW
68452900 (2) Full qty
29
MOUNT FOR PRE-TENSIONED CABLES…
68453000 (2) Full qty
30
CONNECTOR FASTENER BRACKET
68159200 (2) Full qty
31
COMPLETE RH SEAT STRUCTURE
69186000 (1) Full qty
31
COMPLETE LH SEAT STRUCTURE
69186100 (1) Full qty
32
ECU
203086 (1) Full qty
33
SCREW
68984500 (4) Full qty
33
SCREW
68984400 (4) Full qty
33
SCREW
68984300 (2) Full qty
34
KIT OF FASTENERS FOR WEIGHT SE…
70001261 (1) Full qty
35
SENSOR WIRING HARNESS
205286 (1) Full qty
36
SENSOR
205285 (4) Full qty
37
SENSOR MOUNTING FRAME
67808100 (1) Full qty
