Fuel System

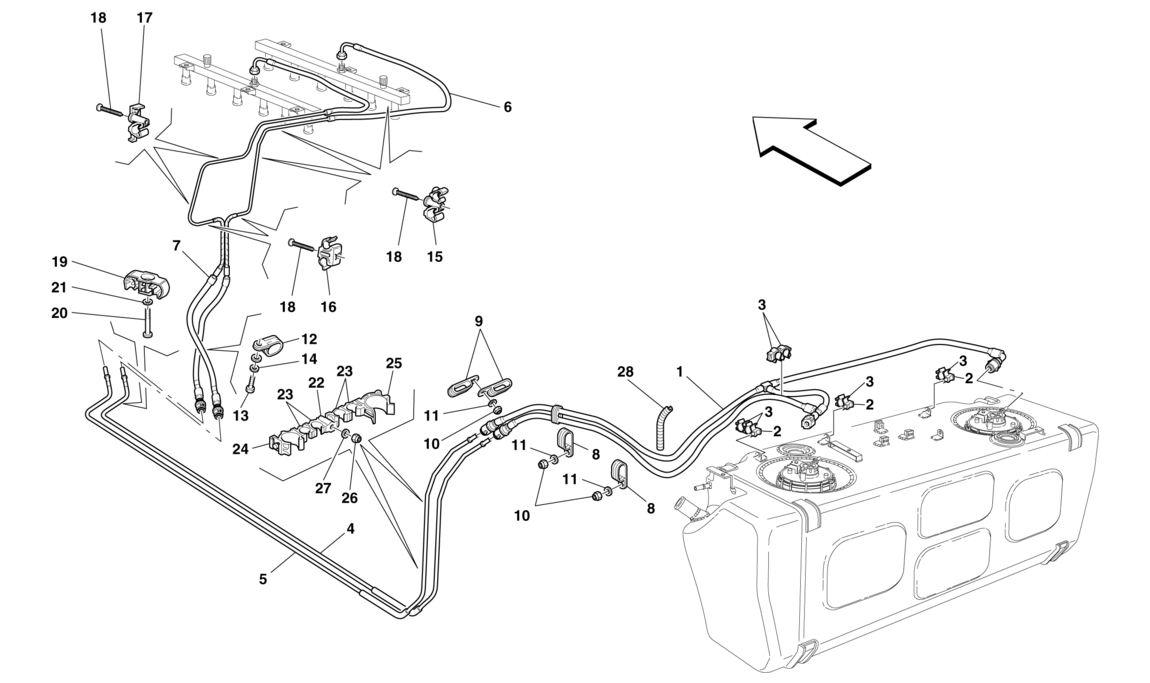

Schematic: Fuel System
Loc
Part
Cond       Price
1
PUMP CONNECTOR PIPE
194817 (1) Full qty
1
PUMP CONNECTOR PIPE
255608 (1) Full qty
2
ANCHORAGE FOR CLIP
140162 (3) Full qty
3
CLIP
140727 (6) Full qty
4
RH RIGID UNDERBODY PIPE
203518 (1) Full qty
4
RH RIGID UNDERBODY PIPE
210090 (1) Full qty
5
LH RIGID UNDERBODY PIPE
203517 (1) Full qty
5
LH RIGID UNDERBODY PIPE
210089 (1) Full qty
6
RH FUEL DELIVERY PIPE
205808 (1) Full qty
6
RH FUEL DELIVERY PIPE
255614 (1) Full qty
6
RH FUEL DELIVERY PIPE
207019 (1) Full qty
6
RH FUEL DELIVERY PIPE
213547 (1) Full qty
6
RH FUEL DELIVERY PIPE
255617 (1) Full qty
7
LH FUEL DELIVERY PIPE
205807 (1) Full qty
7
LH FUEL DELIVERY PIPE
255612 (1) Full qty
7
LH FUEL DELIVERY PIPE
207020 (1) Full qty
7
LH FUEL DELIVERY PIPE
213548 (1) Full qty
7
LH FUEL DELIVERY PIPE
255616 (1) Full qty
8
BRACKET WITH SHEATH -D. 12-
10441390 (2) Full qty
9
Hose fastening bracket
61712500 (2) Full qty
10
Nyloc Nut 6 x 1 x 7.6mm
102948 (4) Full qty
11
WASHER
14499324 (4) Full qty
12
Clamp
10441190 (1) Full qty
13
Screw
10902024 (1) Full qty
14
WASHER
12604274 (1) Full qty
15
CLIP
186950 (3) Full qty
16
CLIP
141699 (2) Full qty
17
CLIP
187840 (2) Full qty
18
SCREW -M5 X 30-
14441024 (7) Full qty
19
CLIP
205822 (1) Full qty
20
SCREW
15210824 (1) Full qty
21
WASHER
12544079 (1) Full qty
22
ANCHORAGE FOR CLIP
140162 (2) Full qty
23
CLIP -Applicable for GD- -Appl…
141546 (8) Full qty
24
CLIP
140727 (1) Full qty
25
FIXING CLIP
140730 (1) Full qty
26
NUT
169180 (2) Full qty
27
WASHER
12637824 (2) Full qty
28
ZAGATO SEAL
65758400 (1) Full qty
