Air Conditioning System - Water Pipes

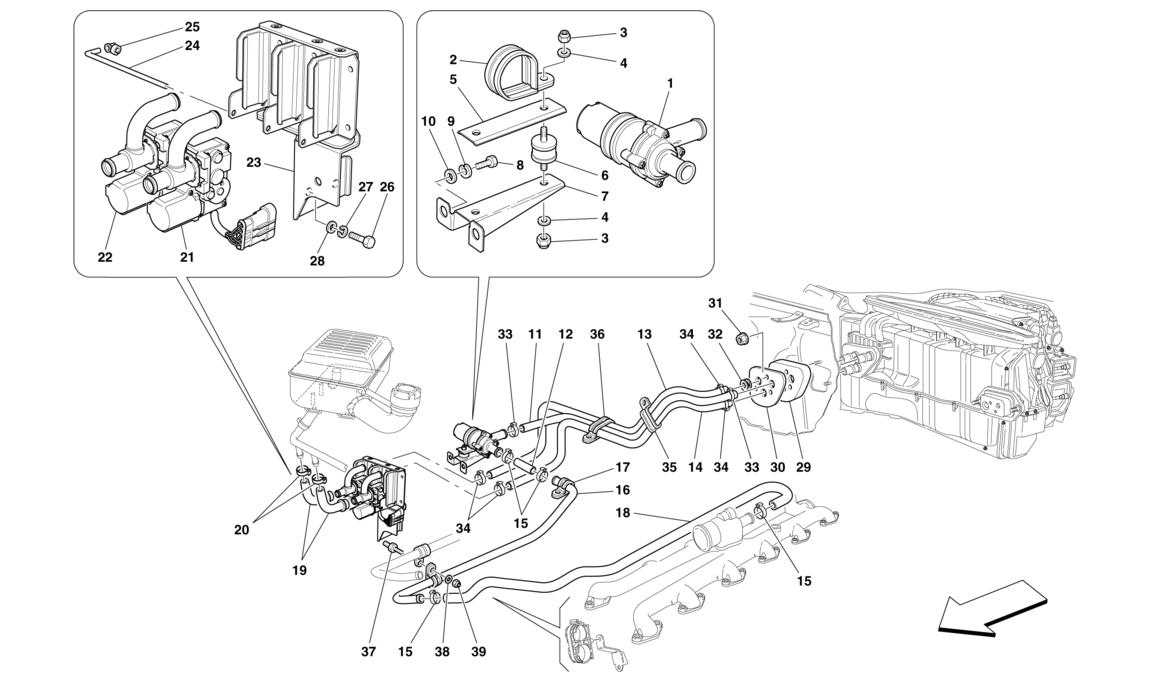

Schematic: Air Conditioning System - Water Pipes
Loc
Part
Cond       Price
1
WATER RECIRCULATION PUMP
65460300 (1) Full qty
2
Bracket
107002 (1) Full qty
3
NUT
15896214 (4) Full qty
4
Spring washer
10571570 (4) Full qty
5
PUMP FASTENER BRACKET
64246500 (1) Full qty
6
New       £ 18.63
142202 (2) Full qty
FU15682n
7
PUMP MOUNTING BRACKET
67925600 (1) Full qty
8
SCREW
10902224 (2) Full qty
9
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
10
WASHER
12643724 (2) Full qty
11
DELIVERY PIPE FROM PUMP TO HEA…
66983700 (1) Full qty
11
DELIVERY PIPE FROM PUMP TO HEA…
68124700 (1) Full qty
12
RUBBER PIPE
214257 (1) Full qty
12
RUBBER PIPE
124028 (1) Full qty
12
RUBBER PIPE
245090 (1) Full qty
13
PIPE FROM HEATER TO RH TGK
67444600 (1) Full qty
13
PIPE FROM HEATER TO RH TGK
68124800 (1) Full qty
14
PIPE FROM HEATER TO LH TGK
67444700 (1) Full qty
14
PIPE FROM HEATER TO LH TGK
68124900 (1) Full qty
15
COLLAR FOR HOSE UNION
186680 (4) Full qty
16
RIGID WATER PIPE
199506 (1) Full qty
16
RIGID WATER PIPE
68124500 (1) Full qty
17
Bracket
10418901 (1) Full qty
18
MOULDED PIPE
199505 (1) Full qty
19
RUBBER PIPE
185579 (2) Full qty
20
CLAMP
183126 (2) Full qty
21
LH CYLINDER BANK TGK VALVE
67444900 (1) Full qty
22
RH CYLINDER BANK TGK VALVE
67635900 (1) Full qty
23
TGK VALVE MOUNTING BRACKET
67332000 (1) Full qty
23
TGK VALVE MOUNTING BRACKET
68961400 (1) Full qty
23
TGK VALVE MOUNTING BRACKET
68122300 (1) Full qty
23
TGK VALVE MOUNTING BRACKET
68961500 (1) Full qty
24
TGK VALVE FASTENER ROD
67933600 (1) Full qty
25
CLIP
175871 (2) Full qty
25
FASTENER CLIP
204781 (2) Full qty
26
SCREW
10902224 (2) Full qty
27
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
28
WASHER
12643724 (2) Full qty
29
PIPE SEAL
67628400 (1) Full qty
30
PLATE
67628500 (1) Full qty
31
NUT
14039614 (3) Full qty
32
SHIM
67628300 (3) Full qty
33
RING CLAMP
13433370 (2) Full qty
34
RING CLAMP
178052 (4) Full qty
35
Bracket
138478 (1) Full qty
36
BRACKET WITH SHEATH
183642 (1) Full qty
37
STUD BOLT
199695 (1) Full qty
38
WASHER
12604474 (1) Full qty
39
Nut
133989 (1) Full qty
