Air Conditioning System - Freon Pipes

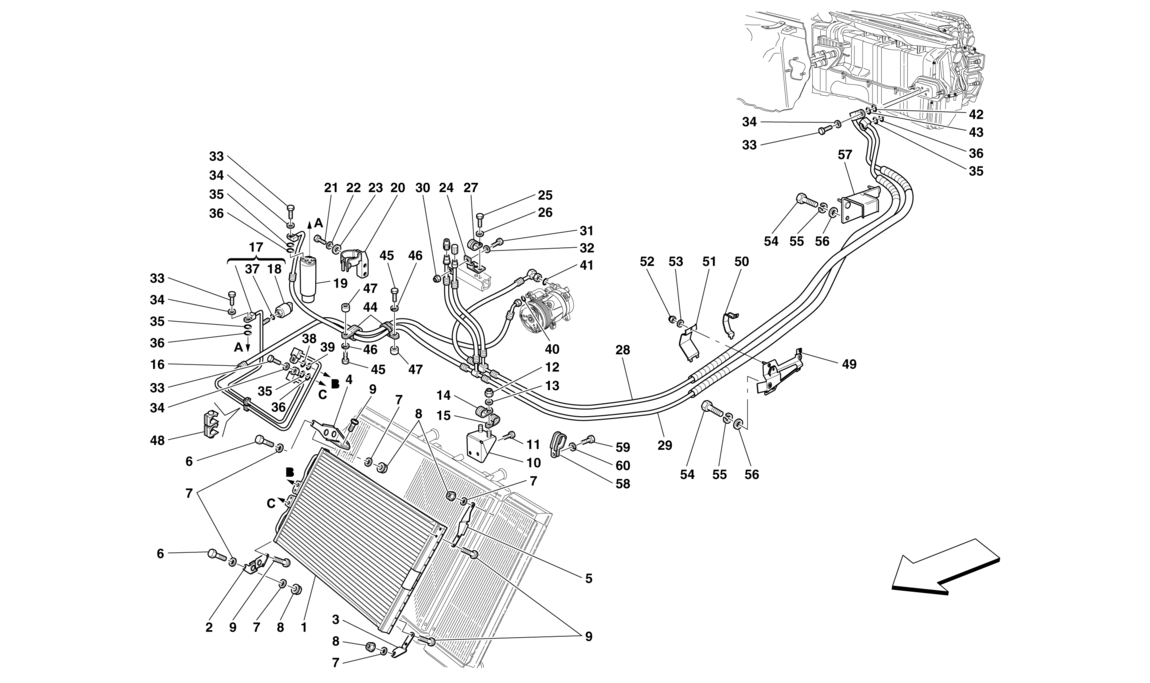

Schematic: Air Conditioning System - Freon Pipes
Schematic: Air Conditioning System - Freon Pipes
Loc
Part
Cond       Price
1
AC CONDENSER
199479 (1) Full qty
2
RH LOWER BRACKET
199486 (1) Full qty
3
LH LOWER BRACKET
199488 (1) Full qty
4
RH UPPER BRACKET
199485 (1) Full qty
5
LH UPPER BRACKET
199487 (1) Full qty
6
SCREW
10977824 (2) Full qty
7
WASHER
12637824 (6) Full qty
8
NUT
14058311 (4) Full qty
9
SCREW
165136 (8) Full qty
10
TUBE FASTENING BRACKET
67851700 (1) Full qty
11
Screw
10902324 (2) Full qty
12
NUT
169180 (2) Full qty
13
WASHER
12637824 (2) Full qty
14
Clamp
10441290 (2) Full qty
15
Small bracket with sheathing
10441590 (2) Full qty
16
GAS PIPE FROM COMPRESSOR TO CO…
66983000 (1) Full qty
16
GAS PIPE FROM COMPRESSOR TO CO…
81607400 (1) Full qty
17
GAS PIPE FROM CONDENSER TO FIL…
66982800 (1) Full qty
18
PRESSURE SWITCH
66374400 (1) Full qty
19
A/C Receiver Drier
New       Price on Enquiry
67085100 (1) Full qty
AC00188n
20
DEHYDRATOR FILTER MOUNTING BRA…
67001100 (1) Full qty
21
SCREW -M6 X 20- -Fastening bra…
10902424 (3) Full qty
22
Clutch Bolt Wavy Washer 550/57…
127494 (3) Full qty
23
WASHER
12643724 (3) Full qty
24
TUBE FASTENING BRACKET
67444300 (1) Full qty
25
SCREW
10977824 (2) Full qty
26
WASHER
13506704 (2) Full qty
27
Small bracket with sheathing
10441590 (1) Full qty
28
COMPRESSOR INLET PIPE
66983100 (1) Full qty
28
COMPRESSOR INLET PIPE
81607300 (1) Full qty
28
COMPRESSOR INLET PIPE
68124400 (1) Full qty
28
COMPRESSOR INLET PIPE
81607600 (1) Full qty
29
GAS PIPE FROM FILTER TO EVAPOR…
66982900 (1) Full qty
29
GAS PIPE FROM FILTER TO EVAPOR…
81607500 (1) Full qty
30
NUT
169180 (1) Full qty
31
SCREW
10977824 (1) Full qty
32
Washer
127493 (1) Full qty
33
SCREW
10902624 (4) Full qty
34
WASHER
11193274 (4) Full qty
35
O-RING
68392000 (4) Full qty
36
O-RING
68392100 (4) Full qty
36
O-RING
68392100 (4) Full qty
37
O-RING
66309600 (1) Full qty
38
O-RING
68392700 (1) Full qty
39
O-RING
66309700 (1) Full qty
40
O.R. GASKET
66309400 (1) Full qty
41
O.R. GASKET
66309500 (1) Full qty
42
O-RING
66309800 (1) Full qty
43
O-RING
68392800 (1) Full qty
44
Pipes fastening bracket
139512 (2) Full qty
45
SCREW -M6 X 20- -Fastening bra…
10902424 (2) Full qty
46
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
47
SHIM
13604115 (2) Full qty
48
CLIP -Not for CINA, USA, CDN, …
145543 (2) Full qty
49
BRACKET FASTENER PLATE
67851300 (1) Full qty
50
REAR PIPE RETAINER BRACKET
67851200 (1) Full qty
51
FRONT PIPE RETAINER BRACKET
67851100 (1) Full qty
52
Nut
New       Price on Enquiry
15896211 (1) Full qty
CH11996n
53
WASHER
13550201 (1) Full qty
54
Screw
10902324 (5) Full qty
55
Clutch Bolt Wavy Washer 550/57…
127494 (5) Full qty
56
WASHER
12643724 (5) Full qty
57
TUBE FASTENING BRACKET
67851600 (1) Full qty
58
Hose fastening bracket
61712500 (2) Full qty
58
Bracket
138478 (1) Full qty
58
BRACKET WITH SHEATH
183642 (1) Full qty
59
Screw
10902324 (2) Full qty
60
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
