F1 Clutch Hydraulic Control -Valid For F1-

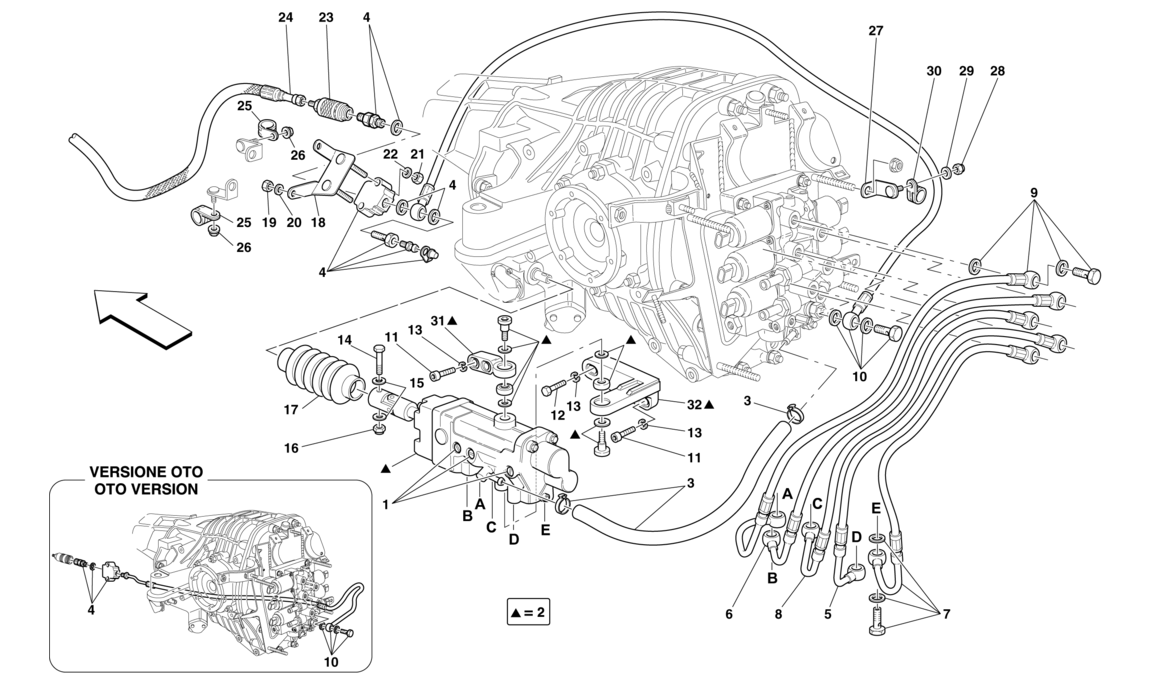

Schematic: F1 Clutch Hydraulic Control -Valid For F1-
Loc
Part
Cond       Price
1
BLEED SCREW
247996 (3) Full qty
2
HYDRAULIC ACTUATOR KIT
247224 (1) Full qty
3
RECIRCULATION PIPE KIT
247228 (1) Full qty
4
QUICK DISCONNECT KIT
247237 (1) Full qty
4
QUICK DISCONNECT KIT
248333 (1) Full qty
5
EV1 PIPE KIT
247239 (1) Full qty
6
EV2 PIPE KIT
247240 (1) Full qty
7
EV3 PIPE KIT
247241 (1) Full qty
7
EV3 PIPE KIT
248354 (1) Full qty
8
EV4 PIPE KIT
247242 (1) Full qty
8
EV4 PIPE KIT
248355 (1) Full qty
9
EV5 PIPE KIT
247243 (1) Full qty
9
EV5 PIPE KIT
248356 (1) Full qty
10
EVF PIPE KIT
247244 (1) Full qty
10
EVF PIPE KIT
248330 (1) Full qty
11
New       Price on Enquiry
14306524 (3) Full qty
SU11732n
12
New       £ 0.32
16043834 (1) Full qty
BS00099n
13
WASHER
10569374 (4) Full qty
14
SCREW
170767 (1) Full qty
15
WASHER
12638524 (2) Full qty
16
New       Price on Enquiry
101139 (1) Full qty
GB10400n
17
BELLOW
184119 (1) Full qty
18
BRACKET
198900 (1) Full qty
19
Nut
16100811 (2) Full qty
20
Do Not Use - See GE07667n
12601374 (2) Full qty
20
New       £ 0.12
12601374 (2) Full qty
CH11905n
21
Nut
102741 (2) Full qty
22
WASHER
14496424 (2) Full qty
23
FEMALE QUICK COUPLING
225148 (1) Full qty
24
CLUTCH PIPE
195131 (1) Full qty
24
CLUTCH PIPE
243430 (1) Full qty
25
Clamp
10441190 (2) Full qty
26
Nut
14058411 (2) Full qty
27
PIPE MOUNTING BRACKET -Applica…
149694 (1) Full qty
28
Nut
102741 (1) Full qty
29
WASHER
12639724 (1) Full qty
30
Pipe supporting backet
10440990 (2) Full qty
31
uPPER BRACKET
184109 (1) Full qty
32
INFERIOR BRACKET
184110 (1) Full qty
