Crankshaft - Connecting Rods And Pistons

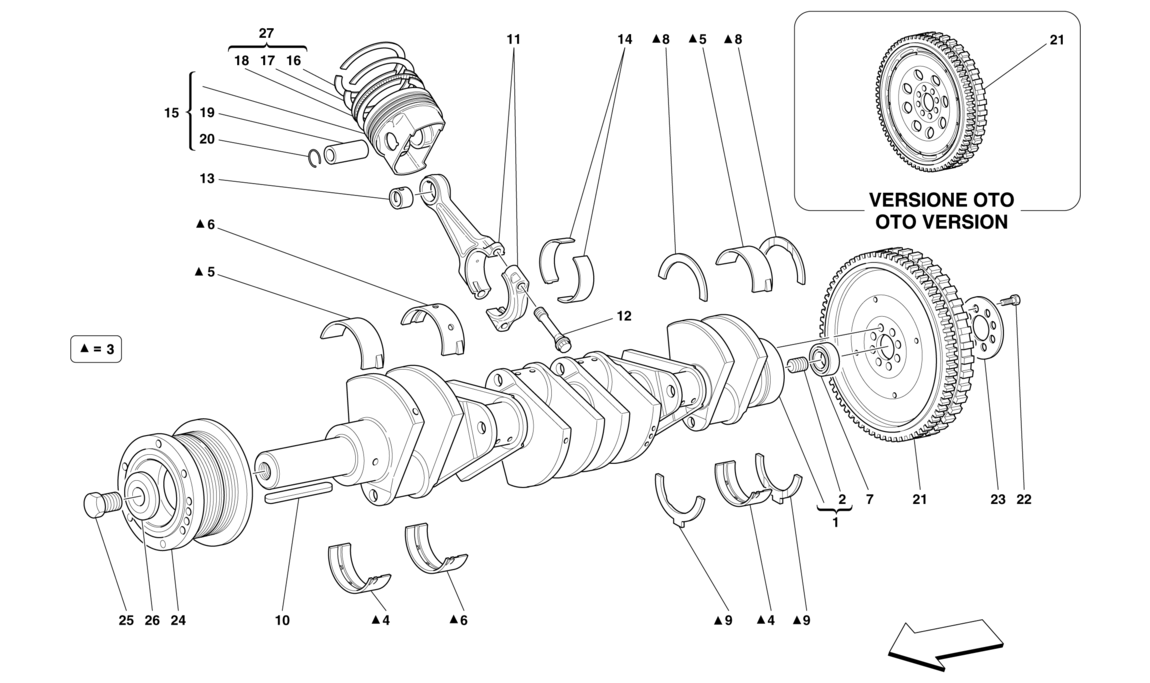

Schematic: Crankshaft - Connecting Rods And Pistons
Schematic: Crankshaft - Connecting Rods And Pistons
Loc
Part
Cond       Price
1
CRANKSHAFT
182735 (1) Full qty
2
THREADED PLUG
176396 (1) Full qty
3
COMPLETE HALF-BEARING SET
194251 (1) Full qty
3
COMPLETE HALF-BEARING SET
173485 (1) Full qty
3
COMPLETE HALF-BEARING SET
173486 (1) Full qty
4
LOWER HALF-BEARING
190505 (2) Full qty
4
LOWER HALF-BEARING
173488 (2) Full qty
4
LOWER HALF-BEARING
173491 (2) Full qty
5
uPPER HALF-BEARING
190504 (2) Full qty
5
uPPER HALF-BEARING
173487 (2) Full qty
5
uPPER HALF-BEARING
173490 (2) Full qty
6
INTERMEDIATE HALF-BEARING
190503 (10) Full qty
6
INTERMEDIATE HALF-BEARING
173489 (10) Full qty
6
INTERMEDIATE HALF-BEARING
173492 (10) Full qty
7
Crankshaft Rear Spigot Bearing 246 Dino
New       £ 20.15
103877 (1) Full qty
CL11532n
8
uPPER SHIM RING
164112 (2) Full qty
8
uPPER SHIM RING
164113 (2) Full qty
8
Thrust Washer 355 STD
New       Price on Enquiry
164111 (2) Full qty
CC11768n
9
LOWER SHIM RING
164109 (2) Full qty
9
LOWER SHIM RING
164110 (2) Full qty
9
Thrust Washer 355 STD
New       Price on Enquiry
164108 (2) Full qty
CC11770n
10
TAB
144876 (1) Full qty
11
COMPL. CONNECTING ROD AND CAP
184426 (12) Full qty
11
Nut
- (12) Full qty
12
Con Rod Bolt
New       £ 33.09
177159 (24) Full qty
RP11541n
13
BUSHING
184909 (12) Full qty
14
CONNECTING ROD HALF-BEARING
173550 (24) Full qty
15
PISTON COMPLETE WITH PISTON RI…
189515 (12) Full qty
15
PISTON COMPLETE WITH PISTON RI…
223174 (12) Full qty
16
SEAL RING
180445 (12) Full qty
17
SEAL RING
180446 (12) Full qty
18
OIL SCRAPER RING
180447 (12) Full qty
18
OIL SCRAPER RING
217576 (12) Full qty
19
PIN
154717 (12) Full qty
20
STOP RING
189521 (24) Full qty
20
STOP RING
178890 (24) Full qty
21
ENGINE FLYWHEEL
193051 (1) Full qty
21
ENGINE FLYWHEEL
246647 (1) Full qty
22
Flywheel Bolt
103875 (8) Full qty
23
Flywheel Washer
103876 (1) Full qty
24
Front Torsion Damper Pulley
168565 (1) Full qty
25
SCREW
140925 (1) Full qty
26
WASHER
140922 (1) Full qty
27
COMPLETE PISTON RING SET
194252 (12) Full qty
27
COMPLETE PISTON RING SET
229101 (12) Full qty
