Audio System - Enhanced Version

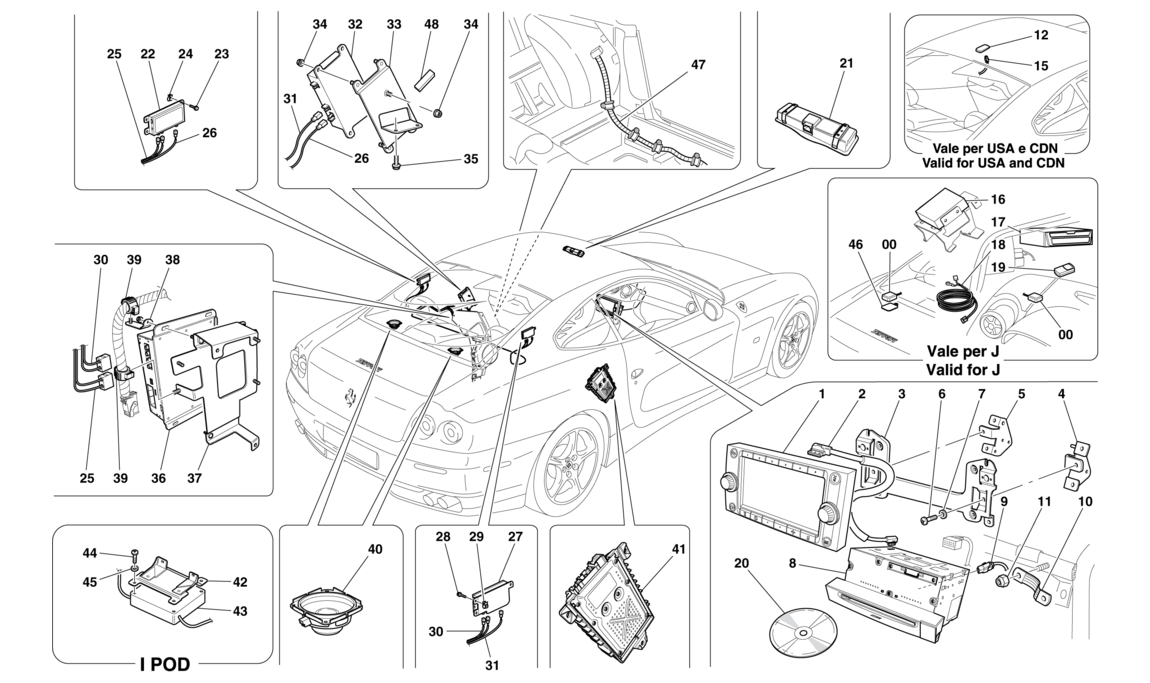

Schematic: Audio System - Enhanced Version
Loc
Part
Cond       Price
1
BOSE NIT FACE PLATE WITH DISPL…
218293 (1) Full qty
1
BOSE NIT FACE PLATE WITH DISPL…
246687 (1) Full qty
2
NIT-DISPLAY CONNECTOR LVDS CAB…
228168 (1) Full qty
3
DISPLAY FACE PLATE FASTENER BR…
80271200 (1) Full qty
4
RH 2 DIN SILVER BOX BRACKET
80270700 (1) Full qty
5
LH 2 DIN SILVER BOX BRACKET
80270900 (1) Full qty
6
SCREW
13271617 (6) Full qty
7
Washer
14497701 (6) Full qty
8
2 DIN SILVER BOX BOSE NIT
218292 (1) Full qty
8
2 DIN SILVER BOX BOSE NIT LH R…
237110 (1) Full qty
8
2 DIN SILVER BOX BOSE NIT
228159 (1) Full qty
8
2 DIN SILVER BOX BOSE NIT
228160 (1) Full qty
9
GPS ANTENNA EXTENSION
232297 (1) Full qty
10
GROUND BRAID
233247 (1) Full qty
11
NUT
12578211 (2) Full qty
12
XM ANTENNA
238629 (1) Full qty
13
XM ANTENNA COVER
238624 (1) Full qty
14
SCREW
246264 (4) Full qty
15
XM ANTENNA COAX EXTENSION CABL…
238309 (1) Full qty
16
BOSE NIT VICS ANTENNA KIT
191588 (1) Full qty
17
BOSE NIT NAVI
218297 (1) Full qty
18
COAX CABLE FROM RADIO TUNER-GP…
232295 (1) Full qty
18
NAVIGATOR WIRING HARNESS
226122 (1) Full qty
18
NAVIGATOR WIRING HARNESS
239844 (1) Full qty
19
NAVI REMOTE CONTROL
228162 (1) Full qty
19
NAVI REMOTE CONTROL
257177 (1) Full qty
20
NAVI MAP DVD DISK
237298 (1) Full qty
21
BOSE NIT MICROPHONE ARRAY
218296 (1) Full qty
22
AMPLIFIER FOR FM2 ANTENNA
227226 (1) Full qty
22
AMPLIFIER FOR FM2 TV2-TV4 ANTE…
232102 (1) Full qty
22
AMPLIFIER FOR FM2 ANTENNA
227230 (1) Full qty
23
SCREW
13272011 (3) Full qty
24
BRACKET
14370571 (3) Full qty
25
COAX CABLE FROM TV2-TV4 TUNER-…
232298 (1) Full qty
26
FM2 ANTENNA CABLE TO RADIO
232252 (1) Full qty
27
AMPLIFIER FOR AM-FM1 ANTENNA
227224 (1) Full qty
27
AMPLIFIER FOR AM-FM1 TV1-TV3 A…
227227 (1) Full qty
27
AMPLIFIER FOR AM-FM1 ANTENNA
227229 (1) Full qty
28
SCREW
13272011 (3) Full qty
29
BRACKET
14370571 (3) Full qty
30
COAX CABLE FROM TV1-TV3 TUNER-…
232299 (1) Full qty
31
AM-FM1 ANTENNA CABLE TO RADIO
232253 (1) Full qty
32
ANALOGUE TV TUNER
60666089 (1) Full qty
33
TUNER BOX BRACKET
221560 (1) Full qty
34
Nut
New       Price on Enquiry
15896211 (5) Full qty
CH11996n
35
SCREW
16286024 (2) Full qty
36
BOSE NIT TUNER BOX
218295 (1) Full qty
37
ANALOGUE TV TUNER BRACKET
221561 (1) Full qty
37
ANALOGUE TV TUNER BRACKET
237161 (1) Full qty
38
TV TUNER WIRING HARNESS BRACKE…
221566 (1) Full qty
39
CLIP
204777 (1) Full qty
39
CLIP
204775 (1) Full qty
40
TWIDDLER
227270 (2) Full qty
41
AUDIO AMPLIFIER
227271 (1) Full qty
42
iPod FASTENER BRACKET
80270500 (1) Full qty
43
BOSE NIT EIPMP MODULE
233878 (1) Full qty
44
SCREW
13271617 (4) Full qty
45
Washer
14497701 (4) Full qty
46
BRACKET
80023900 (1) Full qty
47
TV TUNER WIRING HARNESS
246663 (1) Full qty
47
TV TUNER WIRING HARNESS
246664 (1) Full qty
47
TV TUNER WIRING HARNESS
239840 (1) Full qty
47
PARKING CAMERA WIRING HARNESS
239945 (1) Full qty
48
FOAM
68304200 (1) Full qty
