Rear Structures And Components

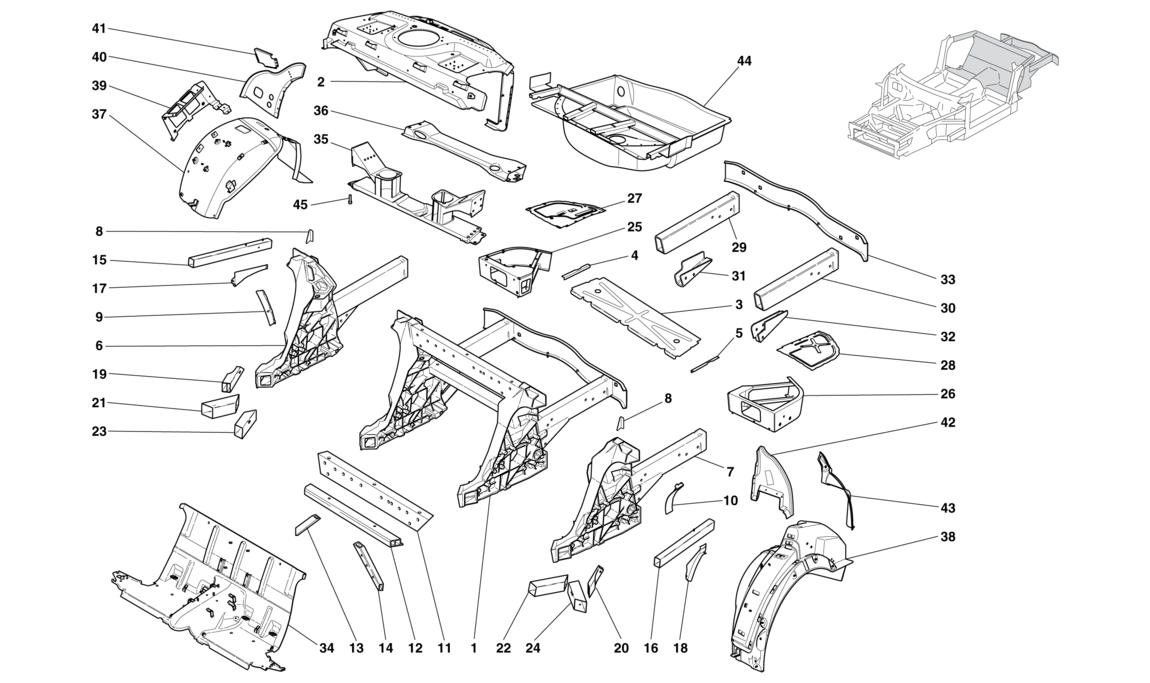

Schematic: Rear Structures And Components
Loc
Part
Cond       Price
1
REAR MODULE
985197204 (1) Full qty
1
REAR MODULE
985237747 (1) Full qty
2
PARCEL SHELF
66994011 (1) Full qty
2
PARCEL SHELF
80018911 (1) Full qty
3
TANK COMPARTMENT COVER
985195882 (1) Full qty
3
TANK COMPARTMENT COVER
985235245 (1) Full qty
4
RH ANGLE PIECE
67330011 (1) Full qty
5
LH ANGLE PIECE
67330111 (1) Full qty
6
RH REAR LATERAL MODULE
985213758 (1) Full qty
6
RH REAR LATERAL MODULE
985237745 (1) Full qty
7
LH REAR LATERAL MODULE
985213759 (1) Full qty
7
LH REAR LATERAL MODULE
985237746 (1) Full qty
8
PARTITION FOR REAR SCREEN BULK…
67932411 (2) Full qty
9
RH BRACKET
67167711 (1) Full qty
9
RH BRACKET
80029211 (1) Full qty
10
LH BRACKET
67167811 (1) Full qty
10
LH BRACKET
80029311 (1) Full qty
11
CROSS MEMBER
985187309 (1) Full qty
11
CROSS MEMBER
985235244 (1) Full qty
12
CASTING CONNECTOR CROSS-PIECE
985187312 (1) Full qty
13
RH ARM
985189652 (1) Full qty
14
LH ARM
985189651 (1) Full qty
15
RH UPPER DIAGONAL BRACE
985187305 (1) Full qty
16
LH UPPER DIAGONAL BRACE
985187304 (1) Full qty
17
RH RECESS
67172911 (1) Full qty
18
LH RECESS
67173011 (1) Full qty
19
RH SEAT BELT FASTENER EXTRUSIO…
985195808 (1) Full qty
20
LH SEAT BELT FASTENER EXTRUSIO…
985195807 (1) Full qty
21
RH LOWER DIAGONAL BRACE
985187292 (1) Full qty
22
LH LOWER DIAGONAL BRACE
985187291 (1) Full qty
23
RH REAR INTERNAL REINFORCEMENT…
985187280 (1) Full qty
24
LH REAR INTERNAL REINFORCEMENT…
985187279 (1) Full qty
25
RH REAR TRELLIS
66992311 (1) Full qty
26
LH REAR TRELLIS
66992411 (1) Full qty
27
RH LATERAL FLOOR
67149911 (1) Full qty
28
LH LATERAL FLOOR
67150011 (1) Full qty
29
RH SPAR
985187300 (1) Full qty
30
LH SPAR
985187299 (1) Full qty
31
RH REINFORCEMENT
985187303 (1) Full qty
32
LH REINFORCEMENT
985187302 (1) Full qty
33
REAR CROSS MEMBER
985187301 (1) Full qty
34
COMPLETE REAR BENCH
985189263 (1) Full qty
34
COMPLETE REAR BENCH
985235386 (1) Full qty
35
GEARBOX TRELLIS
985189265 (1) Full qty
36
REAR CROSS MEMBER
985200197 (1) Full qty
37
RH REAR WHEELHOUSE
66989000 (1) Full qty
37
RH REAR WHEELHOUSE
80021000 (1) Full qty
38
LH REAR WHEELHOUSE
66989100 (1) Full qty
38
LH REAR WHEELHOUSE
80021200 (1) Full qty
38
LH REAR WHEELHOUSE
67446100 (1) Full qty
38
LH REAR WHEELHOUSE
80549100 (1) Full qty
39
AMPLIFIER MOUNTING BRACKET
67440111 (1) Full qty
39
AMPLIFIER MOUNTING BRACKET
80466611 (1) Full qty
40
RH REAR LATERAL PARTITION
67182900 (1) Full qty
40
RH REAR LATERAL PARTITION
80014500 (1) Full qty
41
RH END-PIECE
67921711 (1) Full qty
42
LH REAR LATERAL PARTITION
67183100 (1) Full qty
43
LH REAR LATERAL PARTITION
67183000 (1) Full qty
44
COMPLETE SPARE WHEEL TRAY
68810411 (1) Full qty
44
COMPLETE SPARE WHEEL TRAY
80615711 (1) Full qty
44
COMPLETE SPARE WHEEL TRAY
81482411 (1) Full qty
45
SCREW
14306474 (4) Full qty
