Central Structures And Components

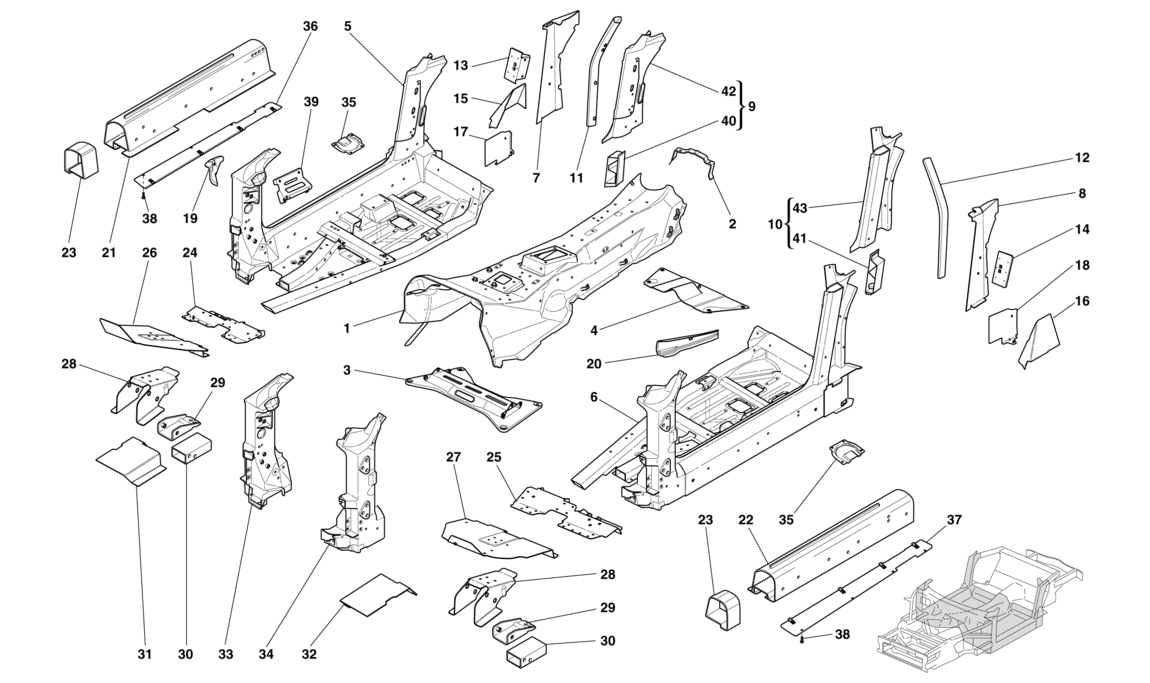

Schematic: Central Structures And Components
Loc
Part
Cond       Price
1
TUNNEL
985213753 (1) Full qty
2
BRACKET
985196343 (1) Full qty
3
uNDER-EXHAUST PLATE
985199021 (1) Full qty
4
STRUCTURE CONNECTOR PLATE
985187276 (1) Full qty
5
RH CENTRAL LATERAL WALL
985187857 (1) Full qty
5
RH CENTRAL LATERAL WALL
985221574 (1) Full qty
5
RH CENTRAL LATERAL WALL
985202637 (1) Full qty
6
LH CENTRAL LATERAL WALL
985197205 (1) Full qty
6
LH CENTRAL LATERAL WALL
985221573 (1) Full qty
7
RH SILL BRACKET
985187320 (1) Full qty
8
LH SILL BRACKET
985187319 (1) Full qty
9
RH SILL BRACKET WITH REINFORCE…
985213747 (1) Full qty
10
LH SILL BRACKET WITH REINFORCE…
985213748 (1) Full qty
11
RH REINFORCEMENT
67438111 (1) Full qty
12
LH REINFORCEMENT
67438211 (1) Full qty
13
RH STRIKER REINFORCEMENT
67162600 (1) Full qty
14
LH STRIKER REINFORCEMENT
67164300 (1) Full qty
15
RH EXTERNAL REINFORCEMENT
985200208 (1) Full qty
16
LH EXTERNAL REINFORCEMENT
985199925 (1) Full qty
17
RH FASTENER PLATE
66996800 (1) Full qty
18
LH FASTENER PLATE
66996900 (1) Full qty
19
RH LATERAL PLATE
67157711 (1) Full qty
20
LH LATERAL PLATE
67157811 (1) Full qty
21
RH SILL
985187284 (1) Full qty
22
LH SILL
985187283 (1) Full qty
23
REPAIRING CORE
985209301 (2) Full qty
24
RH REINFORCEMENT
985204447 (1) Full qty
25
LH REINFORCEMENT
985204443 (1) Full qty
26
FRONT RH FIREWALL FOOTREST
985205069 (1) Full qty
26
FRONT RH FIREWALL FOOTREST
985218157 (1) Full qty
26
FRONT RH FIREWALL FOOTREST
985222146 (1) Full qty
27
FRONT LH FIREWALL FOOTREST
985186750 (1) Full qty
28
FRONT JOINT
985187287 (2) Full qty
29
EXTRUDED PIN
985192814 (2) Full qty
30
BENT INSERT
985192815 (2) Full qty
31
RH ROOF BEAM JOINT
985187338 (1) Full qty
32
LH ROOF BEAM JOINT
985187337 (1) Full qty
33
COMPLETE RH FRONT DOOR PILLAR …
985213755 (1) Full qty
34
COMPLETE LH FRONT DOOR PILLAR …
985213756 (1) Full qty
35
BRACKET
67925911 (2) Full qty
36
RH END-PIECE
67615000 (1) Full qty
37
LH END-PIECE
68114400 (1) Full qty
38
SCREW -M5 X 15-
66207700 (8) Full qty
39
FIRE EXTINGUISHER FASTENER BRA…
69120500 (1) Full qty
39
FIRE EXTINGUISHER FASTENER BRA…
69860400 (1) Full qty
