Front Structures And Components

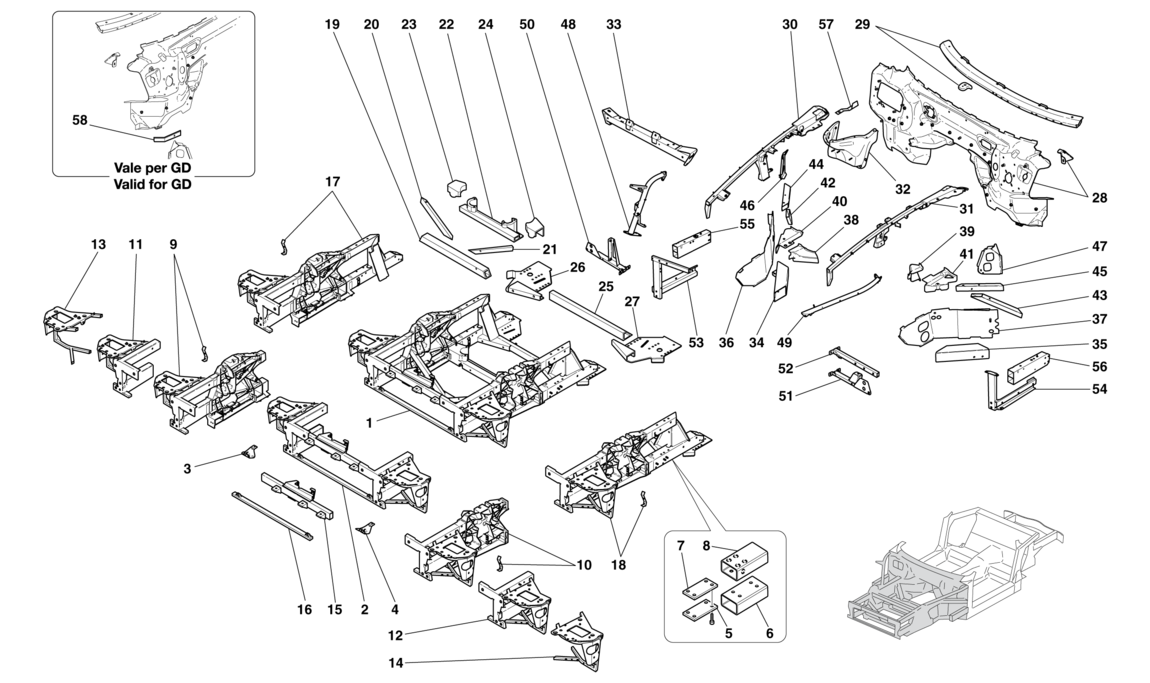

Schematic: Front Structures And Components
Loc
Part
Cond       Price
1
COMPLETE FRONT MODULE
985213714 (1) Full qty
1
COMPLETE FRONT MODULE
985237738 (1) Full qty
2
COMPLETE FRONT FRAME
985213715 (1) Full qty
3
RH BRACKET
985187336 (1) Full qty
4
LH BRACKET
985187335 (1) Full qty
5
LOWER PLATE
985208231 (2) Full qty
6
LOWER PIN
985208233 (2) Full qty
7
uPPER PLATE
985208230 (2) Full qty
8
uPPER PIN
985208232 (2) Full qty
9
RH FRONT LATERAL SPAR
985213716 (1) Full qty
9
RH FRONT LATERAL SPAR
985237743 (1) Full qty
10
LH FRONT LATERAL SPAR
985213717 (1) Full qty
10
LH FRONT LATERAL SPAR
985237744 (1) Full qty
11
RH FRONT LATERAL SEMI-SPAR
985213724 (1) Full qty
12
LH FRONT LATERAL SEMI-SPAR
985213725 (1) Full qty
13
FRONT RH FIREWALL TRELLIS
66991711 (1) Full qty
14
FRONT LH FIREWALL TRELLIS
66991811 (1) Full qty
15
uPPER CROSS-MEMBER
985213726 (1) Full qty
16
LOWER CROSS-MEMBER
985187251 (1) Full qty
17
COMPLETE RH FRONT LATERAL PART…
985213727 (1) Full qty
17
COMPLETE RH FRONT LATERAL PART…
985237741 (1) Full qty
18
COMPLETE LH FRONT LATERAL PART…
985213728 (1) Full qty
18
COMPLETE LH FRONT LATERAL PART…
985237742 (1) Full qty
19
LOWER FRONT SUSPENSION CROSS-M…
985187254 (1) Full qty
20
RH FRONT REINFORCEMENT
985187393 (1) Full qty
21
LH FRONT REINFORCEMENT
985187392 (1) Full qty
22
ENGINE CROSS-MEMBER
985196206 (1) Full qty
23
RH ENGINE STRUT MOUNT
985187266 (1) Full qty
24
LH ENGINE STRUT MOUNT
985187265 (1) Full qty
25
TORQUE BOX CONNECTION
985187267 (1) Full qty
26
RH REINFORCEMENT
985187340 (1) Full qty
27
LH REINFORCEMENT
985187339 (1) Full qty
28
COMPLETE FRONT FIREWALL
985213730 (1) Full qty
28
COMPLETE FRONT FIREWALL
985213735 (1) Full qty
29
COMPLETE WINDSCREEN VALENCE PA…
985213731 (1) Full qty
29
COMPLETE WINDSCREEN VALENCE PA…
985213736 (1) Full qty
30
RH UPPER TRELLIS
66992111 (1) Full qty
30
RH UPPER TRELLIS
67843911 (1) Full qty
31
LH UPPER TRELLIS
66992211 (1) Full qty
32
AIR INTAKE TRAY
67182700 (1) Full qty
32
AIR INTAKE TRAY
68125500 (1) Full qty
32
AIR INTAKE TRAY
67844300 (1) Full qty
33
SUSPENSION CROSS-MEMBER
985187860 (1) Full qty
34
RH OUTER FRONT REINFORCEMENT
985196726 (1) Full qty
35
LH OUTER FRONT REINFORCEMENT
985187315 (1) Full qty
36
RH END-PIECE
985187330 (1) Full qty
36
RH END-PIECE
985209427 (1) Full qty
37
LH END-PIECE
985187329 (1) Full qty
38
RH SPAR CONNECTOR
985187282 (1) Full qty
39
LH SPAR CONNECTOR
985187281 (1) Full qty
40
RH EXTERNAL REINFORCEMENT
985192807 (1) Full qty
41
LH EXTERNAL REINFORCEMENT
985192806 (1) Full qty
42
RH CONNECTION.
985188100 (1) Full qty
43
LH CONNECTION
985188099 (1) Full qty
44
RH UPPER FRONT DIAGONAL BRACE
985187269 (1) Full qty
45
LH UPPER FRONT DIAGONAL BRACE
985187268 (1) Full qty
46
RH FLANK
985187350 (1) Full qty
47
LH FLANK
985187349 (1) Full qty
48
RH DIAGONAL BRACE
985196227 (1) Full qty
48
RH DIAGONAL BRACE
223579 (1) Full qty
49
LH DIAGONAL BRACE
985196226 (1) Full qty
49
LH DIAGONAL BRACE
223578 (1) Full qty
50
RH LOWER CROSS TUBE
67180211 (1) Full qty
51
LH LOWER CROSS TUBE
67180311 (1) Full qty
52
LH UPPER CROSS TUBE
67930211 (1) Full qty
53
RH REAR TRELLIS
66991911 (1) Full qty
53
RH REAR TRELLIS
68129011 (1) Full qty
54
LH REAR TRELLIS
66992011 (1) Full qty
55
RH SPAR
985199441 (1) Full qty
55
RH SPAR
985210552 (1) Full qty
56
LH SPAR
985187374 (1) Full qty
56
LH SPAR
985210550 (1) Full qty
57
RH REINFORCEMENT
67438111 (1) Full qty
