Timing System - Tappets And Shafts

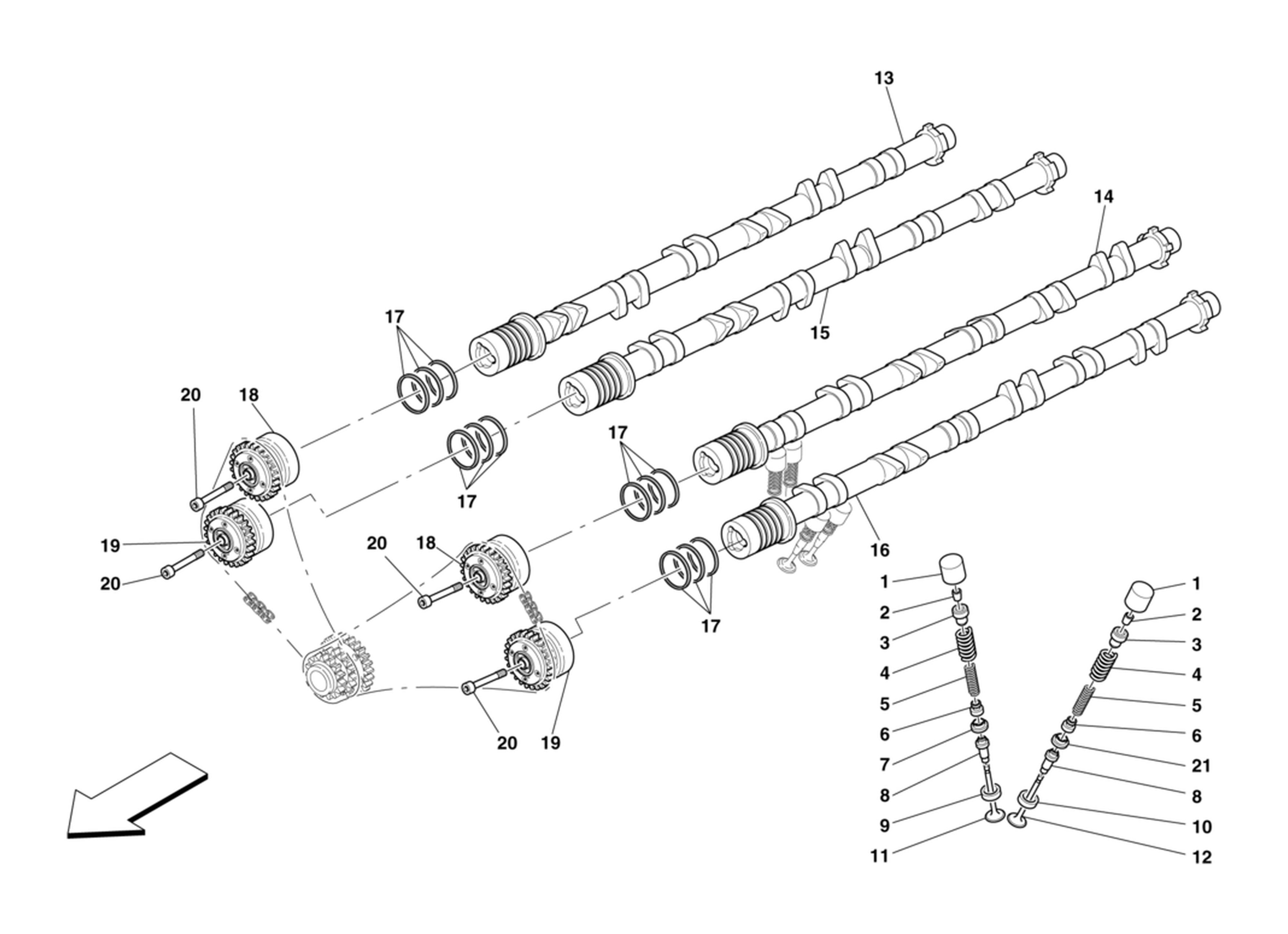

Schematic: Timing System - Tappets And Shafts
Loc
Part
Cond       Price
1
HYDRAULIC TAPPET
255431 (48) Full qty
2
VALVE SPRING HALF-CONE
179763 (96) Full qty
3
UPPER VALVE SPRING CAP
237390 (48) Full qty
4
EXTERNAL SPRING
228823 (48) Full qty
5
INTERNAL SPRING
228824 (48) Full qty
6
OIL SEAL
221473 (48) Full qty
7
LOWER VALVE SPRING CAP, EXHAUS…
242574 (24) Full qty
8
VALVE GUIDE
6213498 (48) Full qty
9
INTAKE VALVE SEAT
6222847 (24) Full qty
10
EXHAUST VALVE SEAT
6222848 (24) Full qty
11
INTAKE VALVE
198581 (24) Full qty
12
EXHAUST VALVE
198582 (24) Full qty
13
RH INTAKE CAMSHAFT
253714 (1) Full qty
14
LH INTAKE CAMSHAFT
253715 (1) Full qty
15
RH EXHAUST CAMSHAFT
253716 (1) Full qty
16
LH EXHAUST CAMSHAFT
253717 (1) Full qty
17
SEAL RING
197975 (12) Full qty
18
VARIABLE VALVE TIMING ADJUSTER…
241906 (2) Full qty
19
VARIABLE VALVE TIMING ADJUSTER…
248020 (2) Full qty
20
VARIABLE TIMING ADJUSTER SCREW…
254892 (4) Full qty
21
LOWER VALVE SPRING CAP, INTAKE…
247484 (24) Full qty
