Fuel System

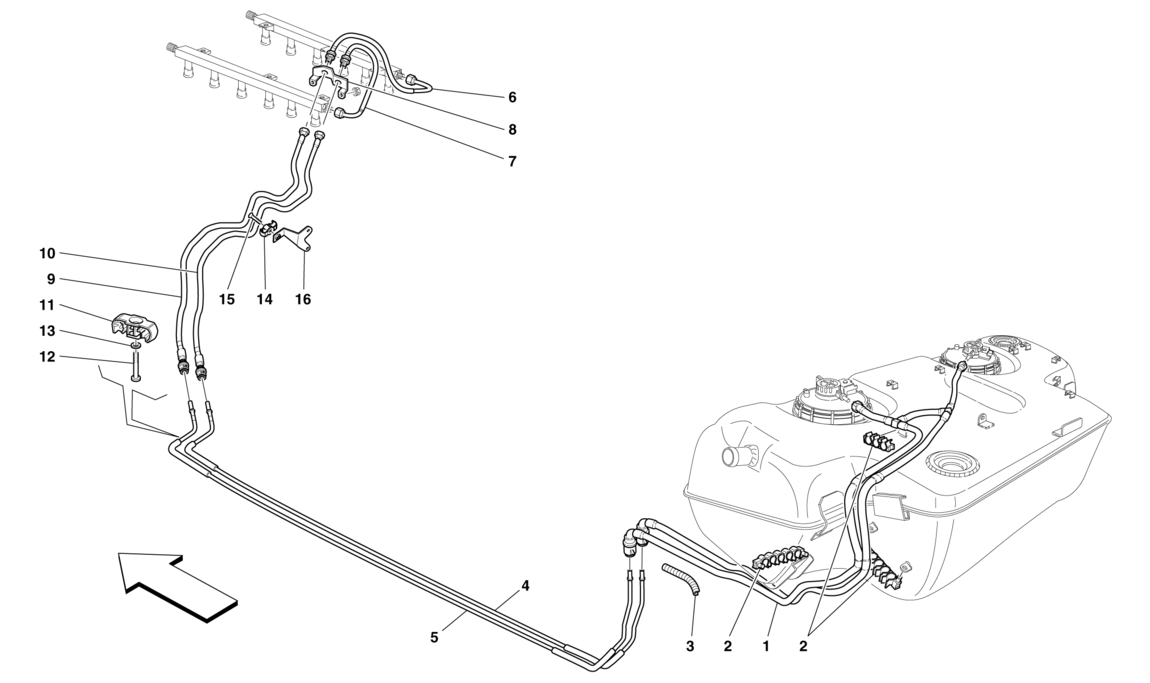

Schematic: Fuel System
Loc
Part
Cond       Price
1
PUMP CONNECTOR PIPE
220793 (1) Full qty
1
PUMP CONNECTOR PIPE
248957 (1) Full qty
2
ANCHORAGE FOR CLIP
140162 (6) Full qty
2
ANCHOR FOR CLIPS
209864 (2) Full qty
2
CLIP
140727 (5) Full qty
2
CLIP -Not for CINA, USA, CDN, …
145543 (12) Full qty
3
ZAGATO SEAL
65758400 (1) Full qty
4
RH RIGID UNDERBODY PIPE
224016 (1) Full qty
5
LH RIGID UNDERBODY PIPE
224017 (1) Full qty
6
FRONT FUEL PIPE TO RH INJECTOR…
221734 (1) Full qty
7
FRONT FUEL PIPE TO LH INJECTOR…
221735 (1) Full qty
8
BRACKET
223915 (1) Full qty
8
BRACKET
233676 (1) Full qty
9
FRONT LH FUEL PIPE
220638 (1) Full qty
9
FRONT LH FUEL PIPE
252153 (1) Full qty
9
FRONT LH FUEL PIPE
226137 (1) Full qty
9
FRONT LH FUEL PIPE
255695 (1) Full qty
10
FRONT RH FUEL PIPE
220637 (1) Full qty
10
FRONT RH FUEL PIPE
252152 (1) Full qty
10
FRONT RH FUEL PIPE
226136 (1) Full qty
10
FRONT RH FUEL PIPE
255694 (1) Full qty
11
CLIP
186950 (4) Full qty
12
SCREW -M5 X 30-
14441024 (2) Full qty
12
SCREW
216379 (2) Full qty
13
SHIM
210917 (2) Full qty
14
CLIP
186950 (1) Full qty
15
SCREW -M5 X 30-
14441024 (1) Full qty
16
BRACKET
224328 (1) Full qty
