Intake Manifold

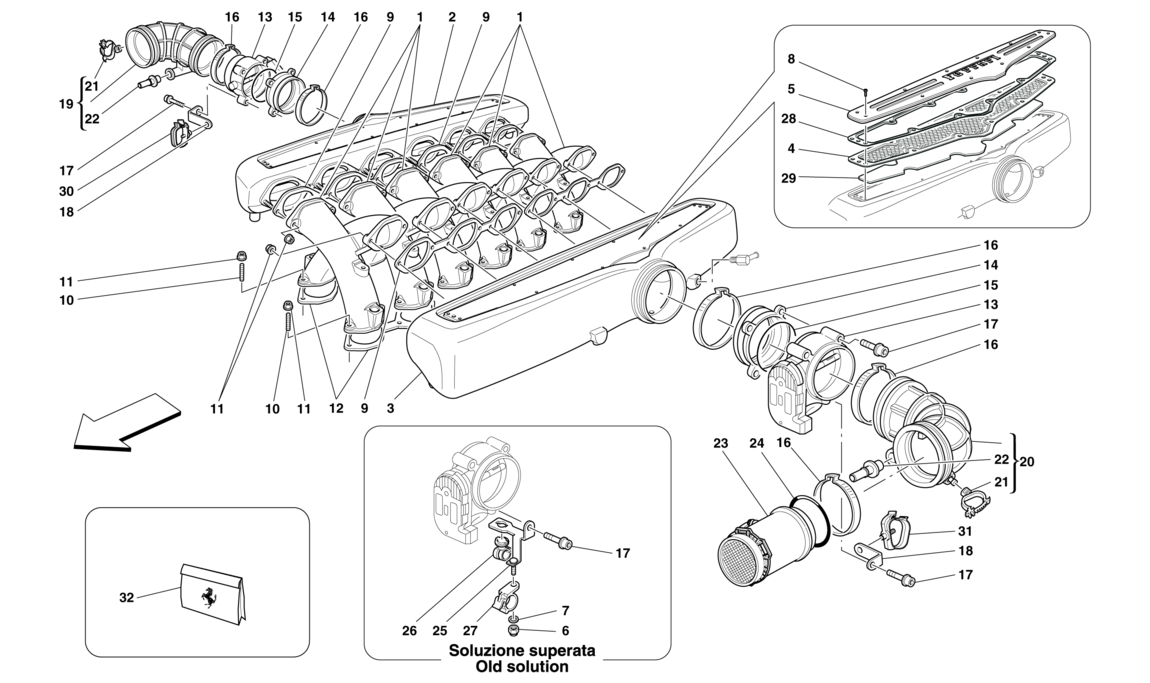

Schematic: Intake Manifold
Loc
Part
Cond       Price
1
INTAKE MANIFOLD
222850 (6) Full qty
2
RH INTAKE PLENUM
222475 (1) Full qty
2
RH INTAKE PLENUM
222475 (1) Full qty
2
RH INTAKE PLENUM
236243 (1) Full qty
2
RH INTAKE PLENUM
236243 (1) Full qty
3
LH INTAKE PLENUM
222476 (1) Full qty
3
LH INTAKE PLENUM
222476 (1) Full qty
3
LH INTAKE PLENUM
236244 (1) Full qty
3
LH INTAKE PLENUM
236244 (1) Full qty
4
PLATE
223872 (2) Full qty
4
PLATE
223872 (2) Full qty
4
PLATE
237409 (2) Full qty
4
PLATE
237409 (2) Full qty
5
COSMETIC COVER
223312 (2) Full qty
5
COSMETIC COVER
223312 (2) Full qty
5
COSMETIC COVER
236245 (2) Full qty
5
COSMETIC COVER
236245 (2) Full qty
6
Nut
102741 (2) Full qty
7
WASHER
14499324 (2) Full qty
8
SCREW
227185 (24) Full qty
8
SCREW
227185 (24) Full qty
8
SCREW
236937 (24) Full qty
8
SCREW
236937 (24) Full qty
8
SCREW
256181 (24) Full qty
8
SCREW
256181 (24) Full qty
9
GASKET
223559 (4) Full qty
9
New       Price on Enquiry
247938 (4) Full qty
FU15733n
10
STUD
11500624 (2) Full qty
10
STUD
11500624 (2) Full qty
10
STUD BOLT
11500524 (22) Full qty
10
STUD BOLT
11500524 (22) Full qty
10
STUD BOLT
11500524 (24) Full qty
10
STUD BOLT
11500524 (24) Full qty
11
NUT
159601 (48) Full qty
11
NUT
228265 (48) Full qty
12
GASKET
213283 (4) Full qty
12
New       Price on Enquiry
247937 (4) Full qty
FU15732n
13
THROTTLE BODY
179912 (2) Full qty
14
SPACER
195206 (2) Full qty
14
SHIM
240262 (2) Full qty
15
GASKET
150302 (2) Full qty
16
RING CLAMP
190151 (6) Full qty
17
SCREW -M6 X 45-
231624 (8) Full qty
18
BRACKET
219946 (2) Full qty
19
RH SLEEVE
209434 (1) Full qty
19
RH SLEEVE
224509 (1) Full qty
20
LH CONNECTOR PIPE
209435 (1) Full qty
20
LH CONNECTOR PIPE
224510 (1) Full qty
21
CLIP
189710 (4) Full qty
22
CONNECTOR
209132 (2) Full qty
23
AIR FLOW METER
180045 (2) Full qty
24
GASKET
14461180 (2) Full qty
25
CABLE RETAINER BRACKET
188614 (2) Full qty
26
Clip Wiring Loom
178430 (2) Full qty
27
CLIP
160888 (2) Full qty
28
GASKET
238411 (2) Full qty
28
GASKET
238411 (2) Full qty
28
GASKET
263316 (2) Full qty
28
GASKET
263316 (2) Full qty
29
LINER
229965 (2) Full qty
29
LINER
229965 (2) Full qty
29
LINER
237901 (2) Full qty
29
LINER
237901 (2) Full qty
30
CLIP
149773 (1) Full qty
31
CLIP
224008 (1) Full qty
32
RH-LH INTAKE PLENUM KIT
70001788 (1) Full qty
