Front Seat - Guides And Adjustment Mechanisms

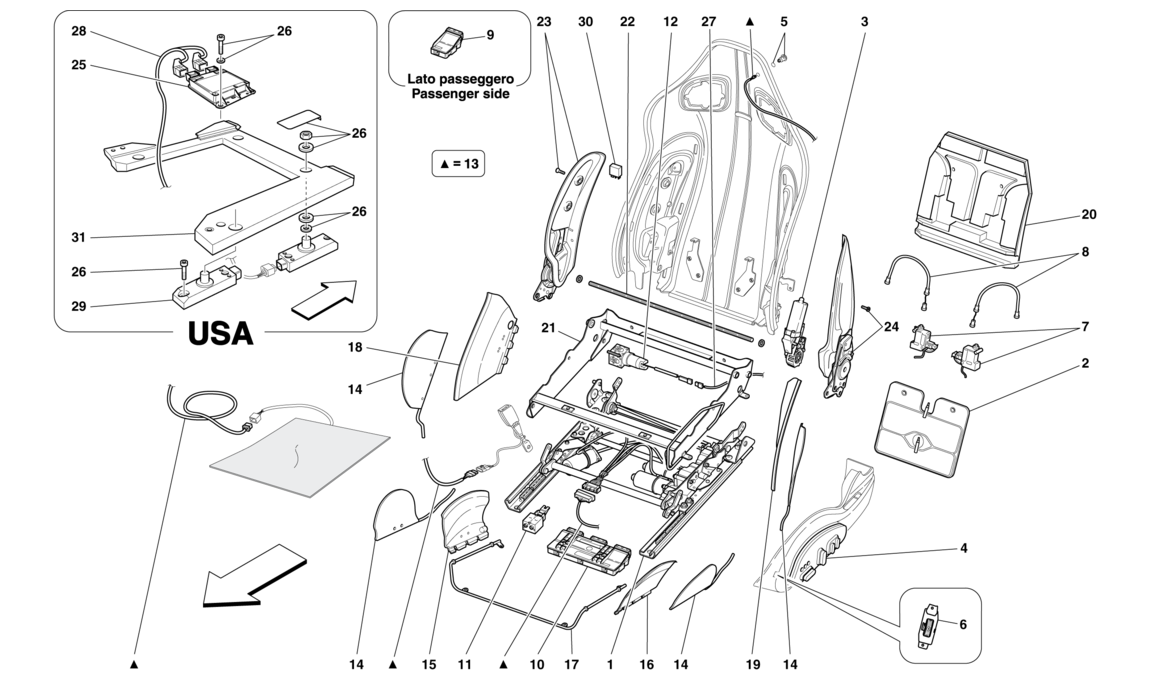

Schematic: Front Seat - Guides And Adjustment Mechanisms
Schematic: Front Seat - Guides And Adjustment Mechanisms
Loc
Part
Cond       Price
1
LH ADJUSTMENT ASSEMBLY
68645900 (1) Full qty
1
LH ADJUSTMENT ASSEMBLY
65969900 (1) Full qty
1
RH ADJUSTMENT ASSEMBLY
69142000 (1) Full qty
1
RH ADJUSTMENT ASSEMBLY
66220500 (1) Full qty
1
LH ADJUSTMENT ASSEMBLY
69471600 (1) Full qty
1
LH ADJUSTMENT ASSEMBLY
66172100 (1) Full qty
1
RH ADJUSTMENT ASSEMBLY
69480200 (1) Full qty
1
RH ADJUSTMENT ASSEMBLY
66220600 (1) Full qty
2
LUMBAR SUPPORT MODULE
69480100 (2) Full qty
3
BACKREST ADJUSTMENT MOTOR
222975 (2) Full qty
3
BACKREST ADJUSTMENT MOTOR
231032 (2) Full qty
4
RH BUTTON PANEL ASSEMBLY
69474800 (1) Full qty
4
RH BUTTON PANEL ASSEMBLY
69474900 (1) Full qty
4
RH BUTTON PANEL
69476000 (1) Full qty
4
LH BUTTON PANEL ASSEMBLY
69475100 (1) Full qty
4
LH BUTTON PANEL ASSEMBLY
69475200 (1) Full qty
4
LH BUTTON PANEL
69476100 (1) Full qty
5
BACKREST TIP BUTTON
222977 (2) Full qty
6
LH DIGITAL HEAT. CONTROL
228929 (1) Full qty
6
LH ANALOGUE HEATING CONTROL
228927 (1) Full qty
6
RH DIGITAL HEATING CONTROL
228928 (1) Full qty
6
RH ANALOGUE HEAT. CONTROL
228926 (1) Full qty
7
ACTUATOR
222976 (2) Full qty
8
BOWDEN CABLES
69476500 (2) Full qty
9
HEATED SEAT ECU
230559 (1) Full qty
10
ECU
221681 (2) Full qty
10
ECU
221681 (1) Full qty
10
NAG/NAP ECU
228923 (2) Full qty
10
NAG/NAP ECU
228923 (1) Full qty
11
ECU COMPLETE WITH SOLENOID VAL…
68646700 (2) Full qty
11
ECU COMPLETE WITH SOLENOID VAL…
80183900 (2) Full qty
12
ELECTRO-PNEUMATIC COMPRESSOR
68646500 (2) Full qty
13
SEAT WIRING HARNESSES
222980 (1) Full qty
13
SEAT WIRING HARNESSES
222980 (1) Full qty
13
SEAT WIRING HARNESSES
222981 (1) Full qty
13
SEAT WIRING HARNESSES
231110 (1) Full qty
13
SEAT WIRING HARNESSES
231110 (1) Full qty
13
SEAT WIRING HARNESSES
236378 (1) Full qty
13
SEAT WIRING HARNESSES
236379 (1) Full qty
14
PNEUMATIC BLADDER
68644600 (8) Full qty
15
RH FLAP
69474100 (2) Full qty
15
RH FLAP
66857500 (2) Full qty
16
LH FLAP
69474200 (2) Full qty
16
LH FLAP
66857200 (2) Full qty
17
COMPLETE ADJUSTER BAR
69474300 (2) Full qty
18
RH FLAP
69471100 (2) Full qty
18
RH FLAP
80999000 (2) Full qty
19
LH FLAP
69471200 (2) Full qty
19
LH FLAP
80998900 (2) Full qty
20
FILLER
69476400 (2) Full qty
21
RH SEAT CUSHION FRAME
69472600 (1) Full qty
21
RH SEAT CUSHION FRAME
66839800 (1) Full qty
21
LH SEAT CUSHION FRAME
69472700 (1) Full qty
21
LH SEAT CUSHION FRAME
66832900 (1) Full qty
22
BACKREST ADJUSTMENT ROD
69476600 (2) Full qty
23
RH BACKREST SIDE PANEL COMPL. …
82040200 (1) Full qty
23
RH BACKREST SIDE PANEL COMPL. …
82040200 (1) Full qty
24
LH BACKREST SIDE PANEL COMPL. …
82040300 (1) Full qty
24
LH BACKREST SIDE PANEL COMPL. …
82040300 (1) Full qty
25
ECU
203087 (1) Full qty
26
KIT OF FASTENERS FOR WEIGHT SE…
70001260 (1) Full qty
27
PIPE KIT FOR BACKREST BLADDERS…
68644700 (1) Full qty
27
PIPE KIT FOR CUSHION BLADDERS
68645600 (1) Full qty
28
SENSOR CABLE
219929 (1) Full qty
28
SENSOR CABLE
264978 (1) Full qty
29
SENSOR
205285 (4) Full qty
30
RELAY FOR ACTUATOR
231106 (2) Full qty
31
SENSOR MOUNTING STRUCTURE
69013500 (1) Full qty
