Pneumatics Actuator System

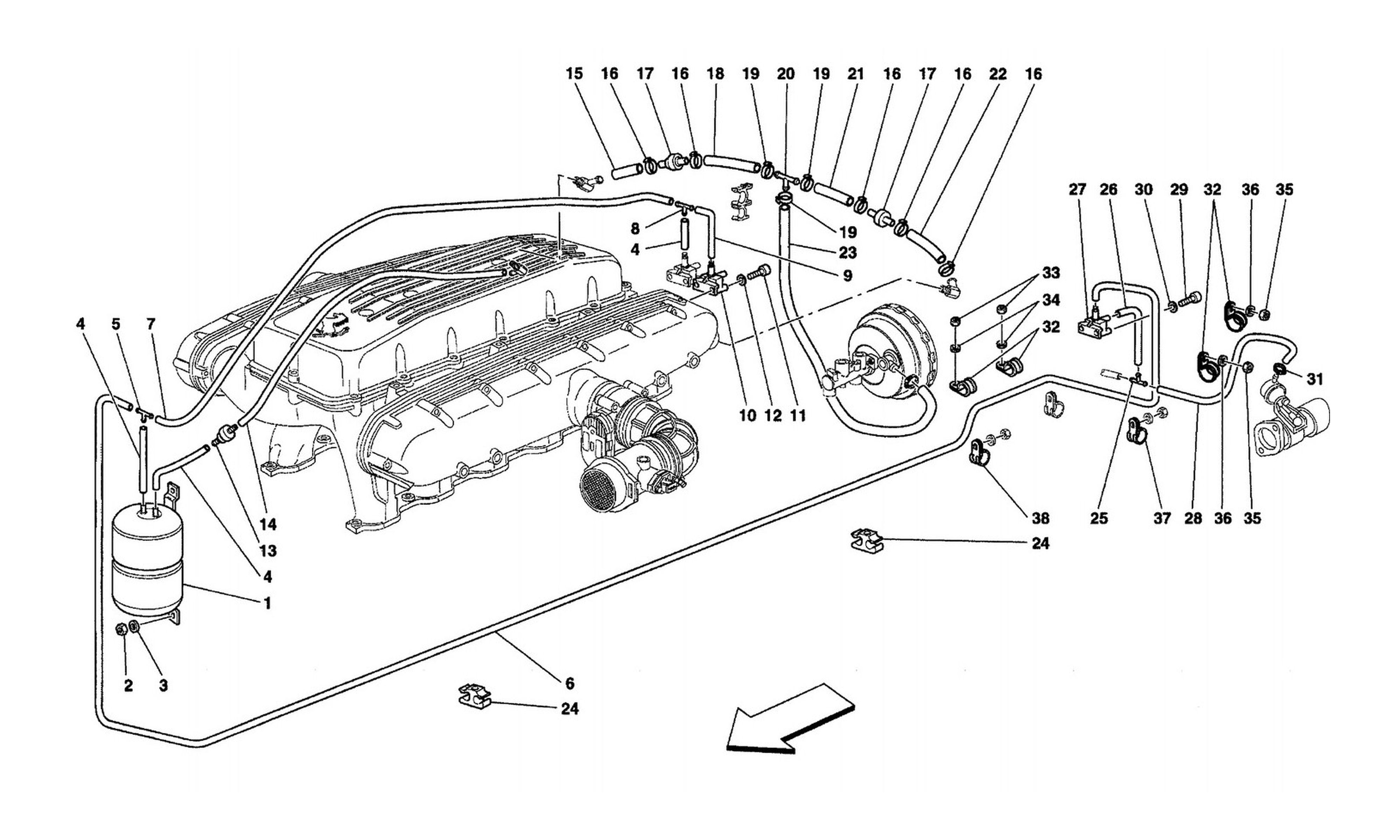

Schematic: Pneumatics Actuator System
Loc
Part
Cond       Price
1
DEPRESSION ACCUMULATION TANK
175374 (1) Full qty
2
Nut
102741 (2) Full qty
3
Washer
12646601 (2) Full qty
4
Pipe
121831 (3) Full qty
5
3-WAY UNION
146972 (1) Full qty
6
PIPE FROM UNION TO SOLENOID VA…
168432 (1) Full qty
6
PIPE FROM UNION TO SOLENOID VA…
188746 (1) Full qty
7
Pipe
121830 (1) Full qty
7
New       £ 53.89
126342 (1) Full qty
FU15683n
8
3-WAY UNION
146972 (1) Full qty
9
Pipe
121828 (1) Full qty
10
ON/OFF SOLENOID VALVE
184363 (1) Full qty
11
SCREW
14304124 (2) Full qty
12
New       Price on Enquiry
12601174 (2) Full qty
ST00358n
13
Single-action valve
62507200 (1) Full qty
14
RUBBER HOSE
169700 (1) Full qty
14
New       £ 53.89
126342 (1) Full qty
FU15683n
15
Tubo dalla valvola al 3 vie
111023 (1) Full qty
16
ELASTIC COLLAR
164015 (4) Full qty
17
Brake Servo Valve
193186 (2) Full qty
18
RUBBER HOSE
193184 (1) Full qty
19
RING CLAMP
178052 (3) Full qty
20
3 way union
100881 (1) Full qty
21
Pipe from valve to manifold
127213 (1) Full qty
22
L.H. RUBBER HOSE
192978 (1) Full qty
23
RUBBER HOSE FROM UNION TO BRAK…
193185 (1) Full qty
23
RUBBER HOSE FROM UNION TO BRAK…
177947 (1) Full qty
24
CLIP
141699 (4) Full qty
25
3-WAY UNION
146972 (1) Full qty
26
Rubber hose
115149 (1) Full qty
27
ON/OFF SOLENOID VALVE
184363 (1) Full qty
28
Rubber pipe from 3-ways to R.…
147126 (1) Full qty
28
R.H. RUBBER HOSE
188745 (1) Full qty
29
SCREW
14304124 (2) Full qty
30
New       Price on Enquiry
12601174 (2) Full qty
ST00358n
31
Clamp
13000190 (1) Full qty
32
Hose fastening bracket
10441490 (4) Full qty
33
Nut
102741 (2) Full qty
34
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
35
NUT
15896214 (2) Full qty
36
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
37
Bracket
10441690 (1) Full qty
38
Clamp
10441290 (1) Full qty
