Rear Structures And Components

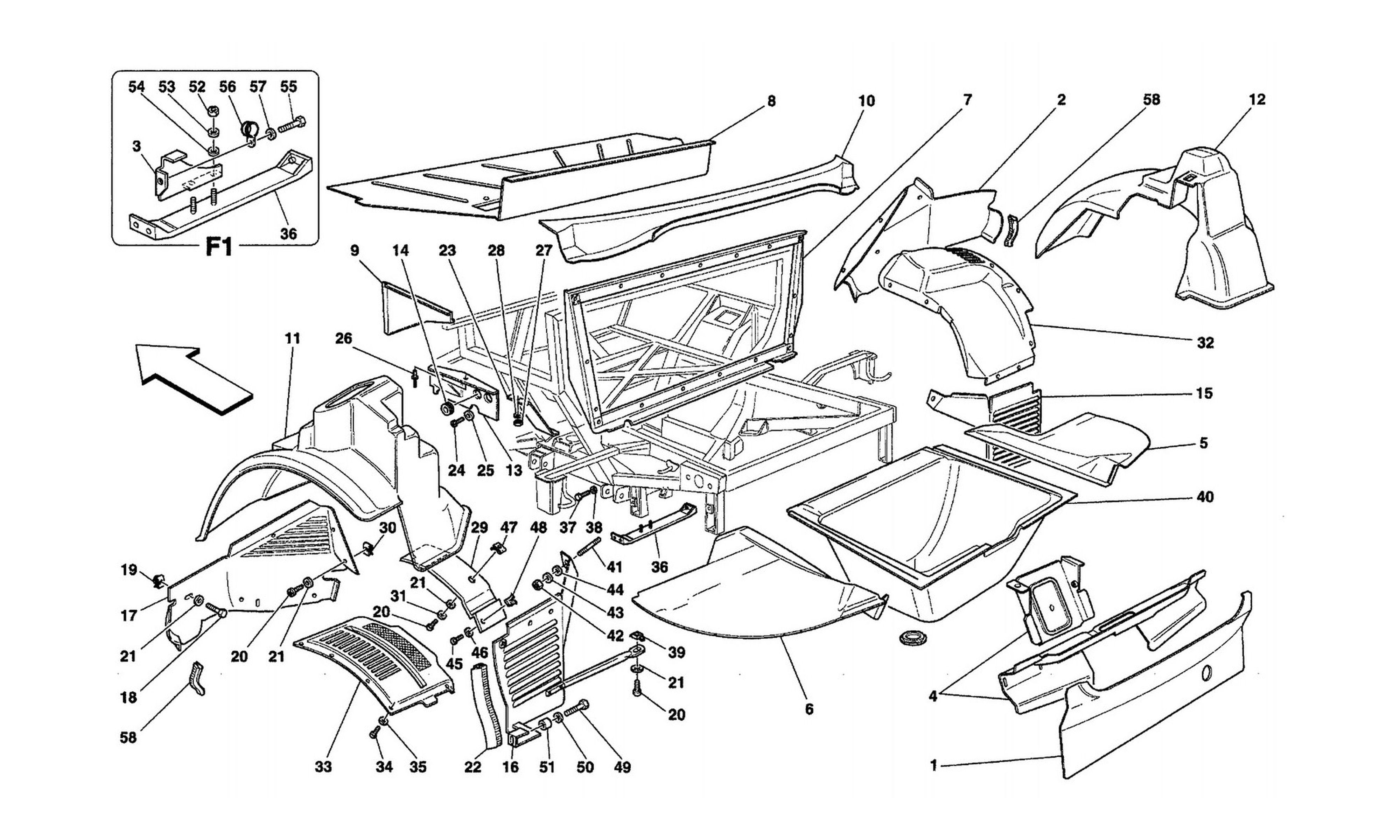

Schematic: Rear Structures And Components
Schematic: Rear Structures And Components
Loc
Part
Cond       Price
1
REAR PANEL
66532900 (1) Full qty
2
FRONT GRAVEL GUARD FOR R.H. R…
67256700 (1) Full qty
2
FRONT GRAVEL GUARD FOR R.H. R…
67112900 (1) Full qty
3
SHIELD FOR SENSOR PROTECTION …
186194 (1) Full qty
4
COMPLETE STAMPED REAR PANEL
65802100 (1) Full qty
5
R.H. LATERAL TRUNK BOTTOM
65939000 (1) Full qty
6
L.H. LATERAL TRUNK BOTTOM
64578600 (1) Full qty
7
FRAME FOR SHIELD
66533100 (1) Full qty
8
PANEL FOR BAGS
66674000 (1) Full qty
8
PANEL FOR BAGS
66408700 (1) Full qty
8
PANEL FOR BAGS
67200500 (1) Full qty
9
SHIELD FOR R.H. WHEELHOUSE
64557700 (1) Full qty
9
SHIELD FOR L.H. WHEELHOUSE
64557800 (1) Full qty
10
TAIL REAR WINDOW CROSSPIECE
64552600 (1) Full qty
11
COMPLETE L.H. REAR WHEELHOUS…
66080500 (1) Full qty
12
COMPLETE R.H. REAR WHEELHOUS…
65913600 (1) Full qty
13
DOOR FOR PIPES
65236500 (1) Full qty
14
Cable grommet
10396880 (2) Full qty
15
R.H. REAR GRAVEL GUARD
64650700 (1) Full qty
16
L.H. REAR GRAVEL GUARD
64650800 (1) Full qty
17
FRONT GRAVEL GUARD FOR L.H. …
66483200 (1) Full qty
18
Screw
15688375 (2) Full qty
19
CLIP
62766300 (6) Full qty
20
SCREW
13276477 (12) Full qty
21
WASHER
12643778 (12) Full qty
22
GASKET
65260100 (2) Full qty
23
L.H. HEAT SHIELD
65374700 (1) Full qty
23
R.H. HEAT SHIELD
65374800 (1) Full qty
24
Screw
13274211 (2) Full qty
25
WASHER
14446924 (2) Full qty
26
RIVET
15624311 (1) Full qty
27
NUT
113647 (8) Full qty
28
WASHER
12638124 (8) Full qty
29
DOOR FOR L.H. REAR SIDE-MARKE…
64711700 (1) Full qty
29
DOOR FOR R.H. REAR SIDE-MARKE…
64711600 (1) Full qty
30
CLIP
62766300 (10) Full qty
31
Washer
106850 (2) Full qty
32
R.H. WHEELHOUSE DOOR
65915200 (1) Full qty
33
L.H. WHEELHOUSE DOOR
66175600 (1) Full qty
34
SCREW
13276477 (15) Full qty
35
WASHER
12643778 (15) Full qty
36
MOVABLE CROSS MEMBER
170507 (1) Full qty
37
Screw
16043124 (4) Full qty
38
Wavy Lock Washer 8mm
127496 (4) Full qty
39
CAGE NUT
14197890 (4) Full qty
40
SPARE WHEEL STEP
64554700 (1) Full qty
41
STUD
11500124 (2) Full qty
42
NUT
15896214 (2) Full qty
43
Washer
106850 (2) Full qty
44
WASHER
12643778 (2) Full qty
45
Screw
15688375 (2) Full qty
46
Washer
12638177 (2) Full qty
47
CLIP
62766300 (2) Full qty
48
Block
14215480 (2) Full qty
49
SCREW
10978224 (2) Full qty
50
WASHER
14496309 (2) Full qty
51
SHIM
13604115 (2) Full qty
52
Nut to fixing front and rear s…
15896470 (2) Full qty
53
WASHER
12638124 (2) Full qty
54
Washer
127493 (2) Full qty
55
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
56
Bracket
10441690 (1) Full qty
57
WASHER
12639724 (1) Full qty
58
GASKET
67580500 (2) Full qty
