Crankcase

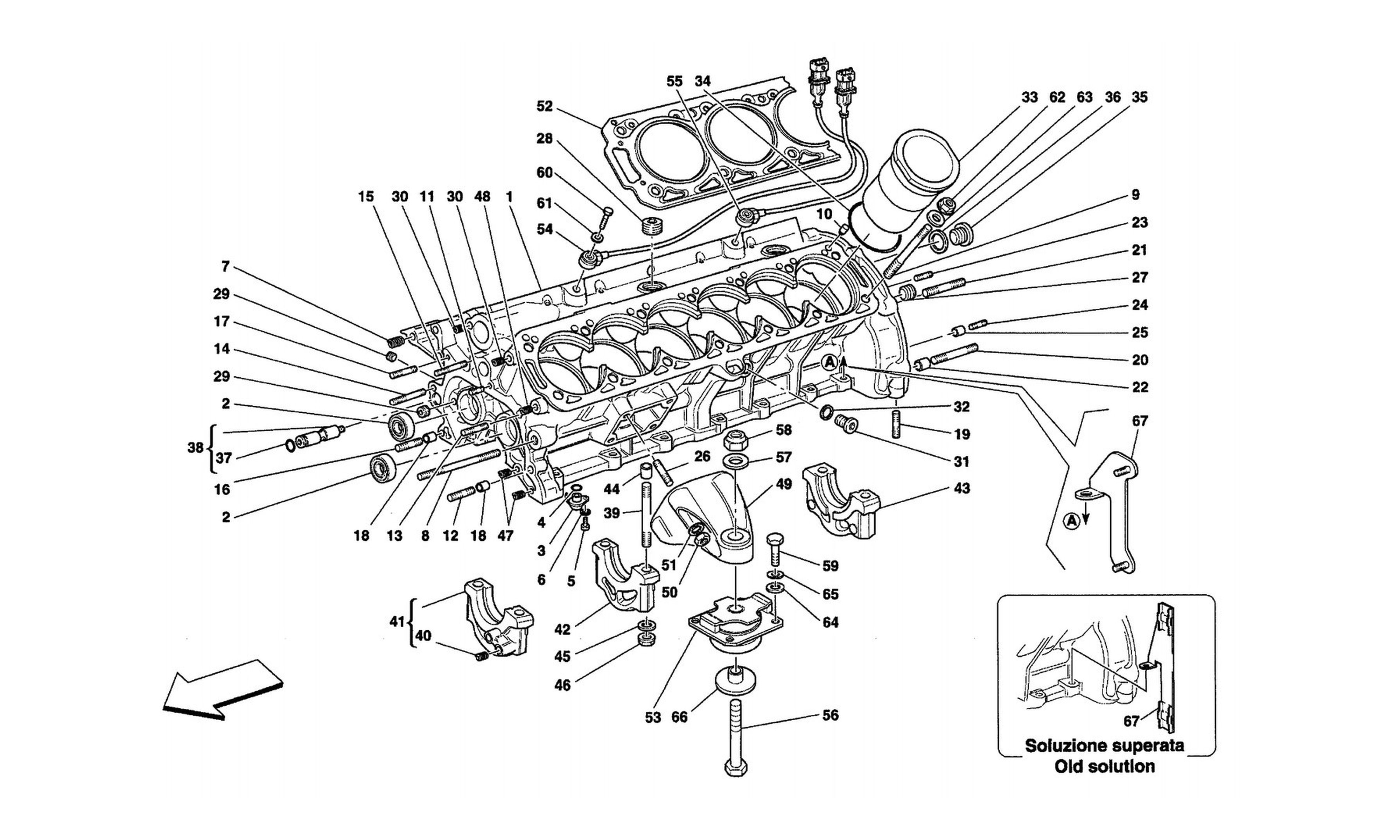

Schematic: Crankcase
Schematic: Crankcase
Loc
Part
Cond       Price
1
ENGINE BASE-PLATE
185310 (1) Full qty
2
BEARING
171177 (2) Full qty
3
PISTON COOLING NOZZLE
170749 (12) Full qty
4
GASKET
143856 (12) Full qty
5
SCREW
14303021 (12) Full qty
6
WASHER -Version with front cam…
12601074 (12) Full qty
7
Heli-coil
13526170 (3) Full qty
8
STUD BOLT
13972234 (1) Full qty
9
STUD BOLT
140591 (28) Full qty
10
DOWEL
163121 (4) Full qty
11
STUD
13541224 (1) Full qty
12
STUD BOLT
13543924 (1) Full qty
13
Stud Bolt M8x16 (Shank length 25)
New       Price on Enquiry
13543524 (1) Full qty
GE00055n
14
STUD
13541924 (1) Full qty
15
Long stud
13541724 (1) Full qty
16
STUD
13543424 (1) Full qty
17
STUD BOLT
13543824 (1) Full qty
18
Dowel
100041 (2) Full qty
19
STUD
13517224 (2) Full qty
20
STUD BOLT
13543924 (2) Full qty
21
STUD BOLT
13543824 (3) Full qty
22
Dowel
102704 (2) Full qty
23
STUD BOLT
13541024 (2) Full qty
23
STUD BOLT
13541024 (2) Full qty
24
STUD
13541224 (2) Full qty
25
Dowel
103038 (2) Full qty
26
Gearbox Bell Housing Stud 365/…
13546524 (8) Full qty
27
Core Plug Tf4 20x10 threaded
New       Price on Enquiry
10268450 (2) Full qty
CH11924n
28
Core Plug
New       Price on Enquiry
14325540 (2) Full qty
CC11608n
29
Plug
10275550 (3) Full qty
30
Heli-coil
13525870 (2) Full qty
31
Water Outlet Plug
New       Price on Enquiry
200988 (2) Full qty
CC11716n
31
Plug
New       Price on Enquiry
150731 (2) Full qty
CC11726n
32
Washer 14x20x1.5mm
New       £ 1.25
10280060 (2) Full qty
FU00140n
33
CYLINDER SLEEVE
180387 (12) Full qty
34
GASKET
140321 (12) Full qty
35
THREADED PLUG
10304640 (1) Full qty
36
Gasket
10264560 (1) Full qty
37
O-Ring
New       Price on Enquiry
134232 (1) Full qty
GE00326n
38
OIL PRESSURE LIMITING VALVE
151160 (1) Full qty
39
STUD BOLT
180263 (14) Full qty
40
Heli-coil
13525770 (2) Full qty
41
FRONT CAP
185302 (1) Full qty
42
INTERMEDIATE CAP
185303 (5) Full qty
43
REAR CAP
185304 (1) Full qty
44
DOWEL
125317 (14) Full qty
45
Washer
103842 (14) Full qty
46
Nut
6103841 (14) Full qty
47
Heli-coil on gearbox casing
13525570 (2) Full qty
48
Heli-coil on gearbox casing
13525570 (1) Full qty
49
ENGINE FIXING SUPPORT
141892 (2) Full qty
50
Nut
133988 (8) Full qty
51
WASHER
11190574 (8) Full qty
52
GASKET
185558 (2) Full qty
53
Engine Mount 550/575
192022 (2) Full qty
54
SENSOR FOR FIRING
181809 (2) Full qty
55
SENSOR FOR FIRING
182266 (2) Full qty
56
Motor Mount Bolt
New       Price on Enquiry
15981634 (2) Full qty
CC11642n
57
WASHER
12601774 (2) Full qty
58
NUT
176573 (2) Full qty
59
SCREW
15970634 (8) Full qty
60
Bolt Front Brake Hub
New       £ 0.32
16043834 (4) Full qty
BS00099n
61
WASHER
11198074 (4) Full qty
62
NUT
140664 (28) Full qty
63
WASHER
140603 (28) Full qty
64
WASHER
14496624 (8) Full qty
65
Washer
127497 (8) Full qty
66
RETAINING WASHER
182141 (2) Full qty
67
INJECTION CABLE RETAINER BRACK…
212777 (1) Full qty
