Air Conditioning System

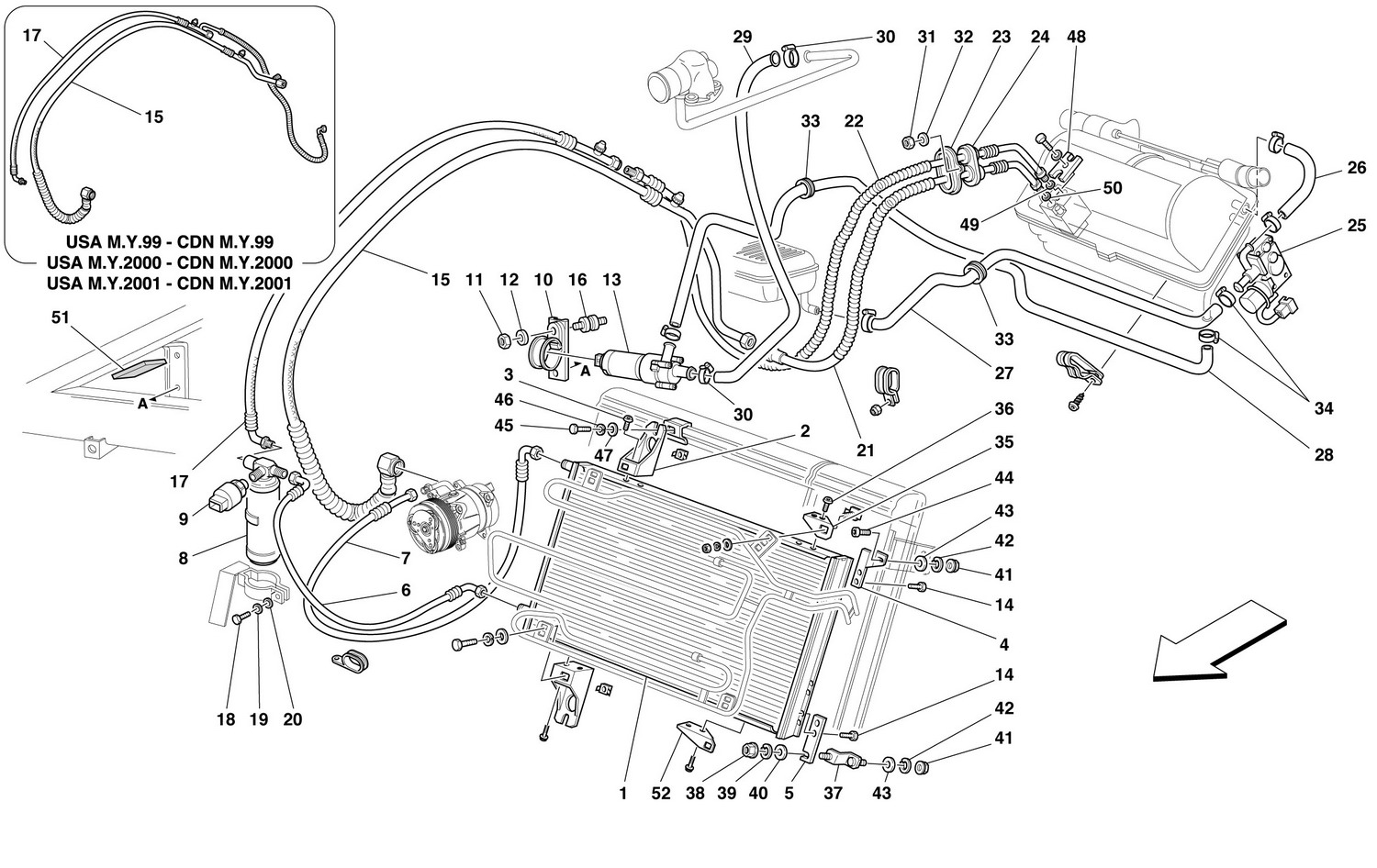

Schematic: Air Conditioning System
Loc
Part
Cond       Price
1
A.C. CONDENSER
165395 (1) Full qty
2
R.H. BRACKET A.C. CONDENSER SU…
168481 (2) Full qty
3
SCREW
165136 (4) Full qty
4
L.H. UPPER BRACKET
165561 (1) Full qty
5
L.H. LOWER BRACKET
168068 (1) Full qty
6
PIPE FROM CONDENSER TO DEHYDR…
64918600 (1) Full qty
7
PIPE FROM COMPRESSOR TO CONDE…
64918700 (1) Full qty
8
New       Price on Enquiry
64894200 (1) Full qty
AC00226n
9
PRESSURE SWITCH
66374400 (1) Full qty
10
BRACKET FOR PUMP FIXING
63994900 (1) Full qty
11
NUT
15896214 (2) Full qty
12
Spring washer
10571570 (2) Full qty
13
WATER PUMP
65488600 (1) Full qty
13
WATER RECIRCULATION PUMP
65460300 (1) Full qty
13
New       Price on Enquiry
70000900 (1) Full qty
AC00448n
14
SCREW
165137 (4) Full qty
15
PIPE FROM HOSE TO COMPRESSOR
65238000 (1) Full qty
15
PIPE FROM HOSE TO COMPRESSOR
65857600 (1) Full qty
15
PIPE FROM HOSE TO COMPRESSOR
65190300 (1) Full qty
16
New       £ 18.63
142202 (2) Full qty
FU15682n
17
PIPE FROM DEHYDRATOR FILTER TO…
65856900 (1) Full qty
17
PIPE FROM DEHYDRATOR FILTER TO…
65237900 (1) Full qty
17
PIPE FROM DEHYDRATOR FILTER TO…
64827600 (1) Full qty
18
SCREW -M6 X 20- -Fastening bra…
10902424 (1) Full qty
19
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
20
WASHER
12643724 (1) Full qty
21
HOSE FROM EVAPORATOR TO PIPE
64791200 (1) Full qty
21
HOSE FROM EVAPORATOR TO PIPE
65237700 (1) Full qty
22
HOSE FROM PIPE TO EVAPORATOR
64791300 (1) Full qty
22
HOSE FROM PIPE TO EVAPORATOR
65237800 (1) Full qty
23
PIPE-HOLDER FRAME
63961900 (1) Full qty
24
RUBBER PIPE-HOLDER
63961800 (1) Full qty
25
VALVE
64999000 (1) Full qty
26
RETURN PIPE FROM EVAPORATOR TO…
65201000 (1) Full qty
27
RETURN PIPE FROM VALVE TO NOUR…
65237600 (1) Full qty
27
RETURN PIPE FROM VALVE TO NOUR…
65201100 (1) Full qty
28
DELIVERY PIPE FROM PUMP TO EVA…
65237500 (1) Full qty
28
DELIVERY PIPE FROM PUMP TO EVA…
65128200 (1) Full qty
29
DELIVERY PIPE FROM ENGINE TO P…
65122300 (1) Full qty
29
DELIVERY PIPE FROM ENGINE TO P…
65238100 (1) Full qty
30
Clamp
13000490 (2) Full qty
31
NUT
169180 (2) Full qty
32
WASHER
12638124 (2) Full qty
33
Cable grommet
10396980 (2) Full qty
34
Clamp
13000490 (2) Full qty
35
BRACKET
169463 (1) Full qty
36
SCREW
165136 (4) Full qty
37
SMALL PLATE
156989 (1) Full qty
38
NUT
15896214 (2) Full qty
39
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
40
WASHER
12647624 (1) Full qty
41
NUT
15896214 (2) Full qty
42
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
43
WASHER
12648224 (2) Full qty
44
SCREW
14778814 (1) Full qty
45
SCREW -M6 X 14-
10902124 (2) Full qty
46
Clutch Bolt Wavy Washer 550/57…
127494 (1) Full qty
47
WASHER
14496424 (2) Full qty
48
BRACKET
175836 (1) Full qty
49
O.R. GASKET
175835 (1) Full qty
50
New       Price on Enquiry
177655 (1) Full qty
GE00368n
51
ANTI-VIBRATION GASKET
65357600 (1) Full qty
52
BRACKET
177507 (1) Full qty
