Rear Suspension - Shock Absorber And Brake Disc

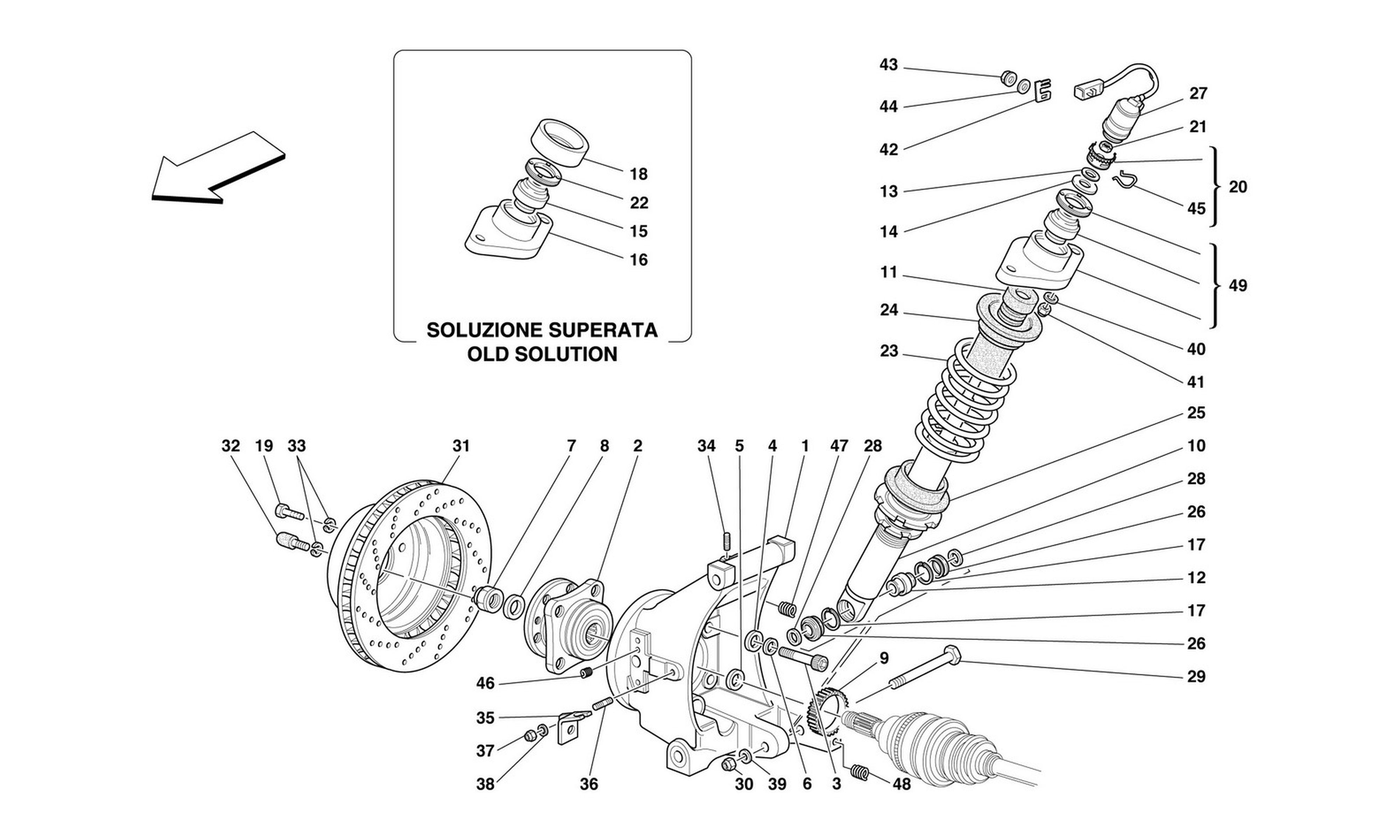

Schematic: Rear Suspension - Shock Absorber And Brake Disc
Schematic: Rear Suspension - Shock Absorber And Brake Disc
Loc
Part
Cond       Price
1
L.H. REAR HUB HOLDER
178377 (1) Full qty
1
R.H. REAR HUB HOLDER
178376 (1) Full qty
1
L.H. REAR HUB HOLDER
168110 (1) Full qty
1
R.H. REAR HUB HOLDER
168109 (1) Full qty
2
BEARING FOR WHEEL
157901 (2) Full qty
3
SCREW
14331974 (8) Full qty
4
WASHER
10732531 (6) Full qty
5
WASHER
153355 (2) Full qty
6
WASHER
152250 (8) Full qty
7
NUT
167259 (2) Full qty
8
WASHER
143332 (2) Full qty
9
REAR TOOTHED WHEEL
165101 (2) Full qty
10
REAR SHOCK ABSORBER
181710 (2) Full qty
11
Shock Absorber Rubber Stop
New       £ 23.44
149857 (2) Full qty
FS00195n
12
Shock Bushing
New       Price on Enquiry
157630 (2) Full qty
RS00314n
13
WASHER
160461 (2) Full qty
14
WASHER
170144 (2) Full qty
15
UPPER BALL JOINT
170610 (2) Full qty
16
CUP
172354 (2) Full qty
17
SNAP RING
145478 (4) Full qty
18
SEAL RING
172355 (2) Full qty
19
SCREW
16043424 (2) Full qty
20
Support
137824 (2) Full qty
21
Nut
137826 (2) Full qty
22
RING NUT
170143 (2) Full qty
23
SPRING
163652 (2) Full qty
23
SPRING
169986 (2) Full qty
23
SPRING - CAGNOLA
175887 (2) Full qty
24
UPPER SPACER
156978 (2) Full qty
25
Lower Suspension Spring Rubber 355
New       £ 8.13
113581 (2) Full qty
RS00366n
26
Shock Absorber Joint Rubber Se…
153286 (4) Full qty
27
Shock Absorber Actuator
New       £ 825.00
158732 (2) Full qty
RS00364n
28
SPACER WASHER MM. 2.90
153496 (0) Full qty
28
SPACER WASHER MM. 3.10
153497 (0) Full qty
28
SPACER WASHER MM. 3.00
153495 (2) Full qty
29
SCREW
159309 (2) Full qty
30
Nut Front Wishbone
New       £ 3.56
148020 (2) Full qty
FS00201n
31
REAR BRAKE DISC
171573 (2) Full qty
31
REAR BRAKE DISC
179800 (2) Full qty
32
SCREW
157841 (2) Full qty
32
Brake Disc Fixing Screw
New       £ 4.68
104370 (2) Full qty
BS00951n
33
Wavy Lock Washer 8mm
127496 (4) Full qty
34
STUD
11500124 (2) Full qty
35
L.H. SUPPORT
168384 (1) Full qty
35
R.H. SUPPORT
168383 (1) Full qty
36
STUD
11500124 (2) Full qty
37
Nut
102741 (2) Full qty
38
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
39
WASHER
12601574 (2) Full qty
40
Main Bearing Wave Washer
New       £ 0.12
12601474 (4) Full qty
CC11464n
40
M10 Wavy Washer
New       Price on Enquiry
12601474 (4) Full qty
CC11574n
41
Upper and Lower Front Ball Joint Nut 246
New       £ 1.05
12574521 (4) Full qty
FS10435n
42
CLIP
155751 (2) Full qty
43
NUT
113647 (2) Full qty
44
WASHER
14496324 (2) Full qty
45
Front Suspension Actuator Clip 355
New       £ 6.49
142079 (2) Full qty
FS10448n
46
Heli-coil
13525470 (6) Full qty
47
THREADED INSERT
133771 (4) Full qty
48
Heli-coil
13526170 (2) Full qty
49
COMPLETE SPRING RETAINING CUP
173901 (2) Full qty
