Hand-Brake Control

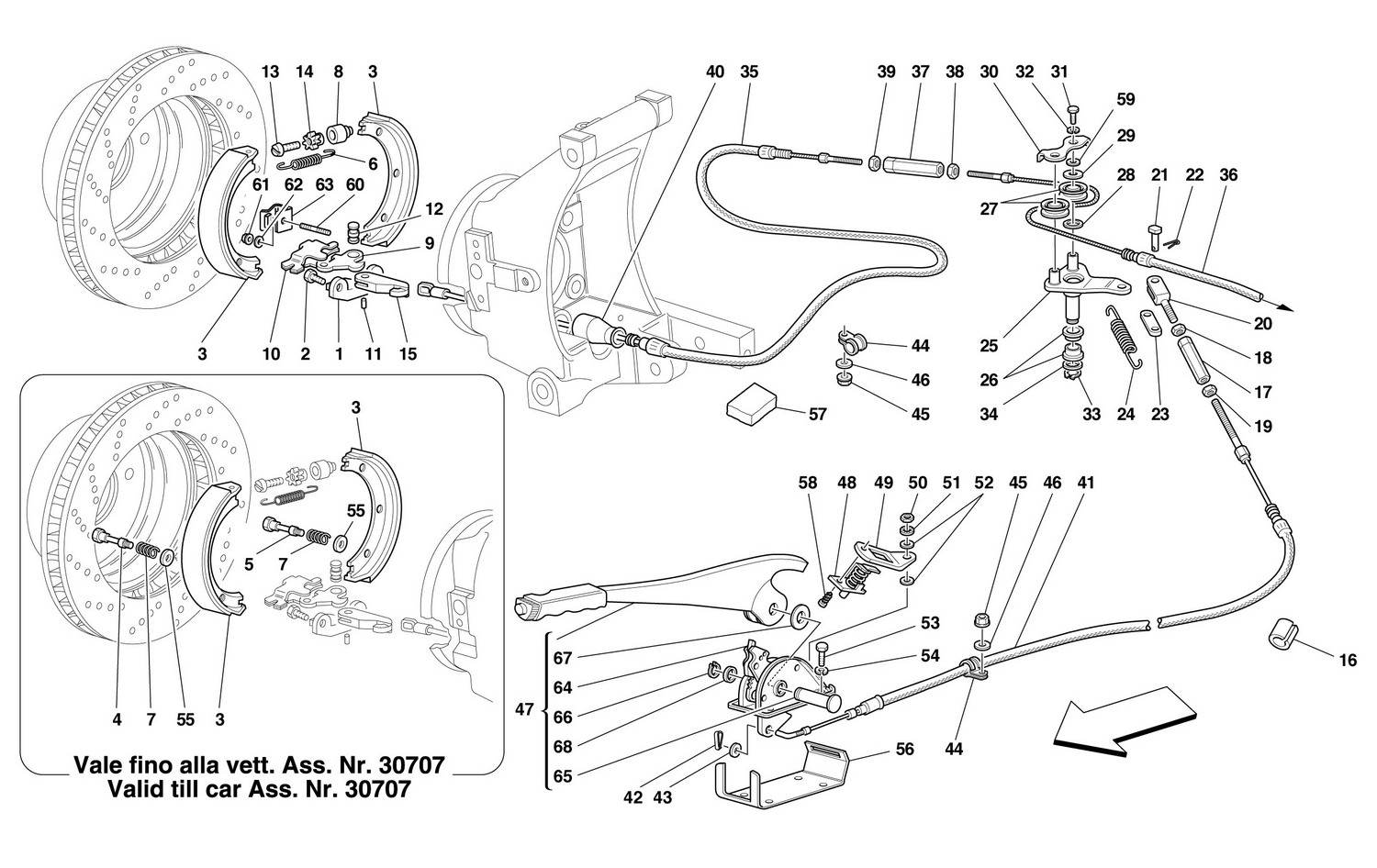

Schematic: Hand-Brake Control
Loc
Part
Cond       Price
1
Small block
142861 (2) Full qty
2
Screw
142856 (4) Full qty
3
COMPLETE BRAKE SHOE
178382 (4) Full qty
3
Handbrake Shoe 30mm
170701 (4) Full qty
4
Emerg. Brake Pin
156915 (2) Full qty
5
Emerg. Brake Pin
156916 (2) Full qty
6
New       £ 29.47
101276 (4) Full qty
BS00890n
7
Emerg. Brake Spring
101277 (4) Full qty
8
Seat for adjusting screw
101279 (2) Full qty
9
nner control lever
101280 (2) Full qty
10
Outer control lever
101281 (2) Full qty
11
Pin
New       Price on Enquiry
101282 (2) Full qty
BS00634n
12
Pin for joint
101283 (2) Full qty
13
Screw
101285 (2) Full qty
14
Nut for adjusting screw
101286 (2) Full qty
15
Ineer lever control fork
105270 (2) Full qty
16
RUBBER PIPE
152913 (1) Full qty
17
ADJUSTMENT SLEEVE
152302 (1) Full qty
18
L.H. THREADED NUT
16102914 (1) Full qty
19
NUT
16102314 (1) Full qty
20
FORK
152301 (1) Full qty
21
Clevis Pin
10050814 (1) Full qty
22
Split pin
10734201 (1) Full qty
23
SMALL PLATE
152303 (1) Full qty
24
New       Price on Enquiry
104895 (1) Full qty
PB14046n
25
LEVER
156122 (1) Full qty
25
LEVER
152279 (1) Full qty
26
BUSHING
152273 (2) Full qty
27
PULLEY
175780 (2) Full qty
27
PULLEY
152274 (2) Full qty
28
WASHER
152617 (2) Full qty
29
WASHER
109483 (2) Full qty
30
SMALL PLATE
158694 (1) Full qty
30
SMALL PLATE
152299 (1) Full qty
31
Screw
10902024 (2) Full qty
32
WASHER
11193274 (2) Full qty
33
Seeger ring
11066476 (1) Full qty
34
WASHER
152300 (1) Full qty
35
R.H. REAR CABLE
152297 (1) Full qty
36
L.H. REAR CABLE
152298 (1) Full qty
37
Adjuster
10091011 (1) Full qty
38
Locknut, left thread
10727311 (1) Full qty
39
New       Price on Enquiry
10725914 (1) Full qty
BS00684n
40
New       £ 46.31
143938 (2) Full qty
BS00805n
41
HAND-BRAKE CONTROL CABLE
164021 (1) Full qty
42
Split pin
10796440 (1) Full qty
43
Washer
10519624 (1) Full qty
44
Clamp
10441290 (3) Full qty
45
Nut
102741 (3) Full qty
46
WASHER
12639724 (3) Full qty
47
LINING
629965.. (1) Full qty
47
Handbrake Lever
154095 (1) Full qty
48
SWITCH
169292 (1) Full qty
49
SUPPORT BRACKET
169291 (1) Full qty
50
Nut to fixing front and rear s…
15896470 (1) Full qty
51
WASHER
12605274 (1) Full qty
52
WASHER
63622400 (2) Full qty
53
SCREW -M6 X 14-
10902124 (4) Full qty
54
Clutch Bolt Wavy Washer 550/57…
127494 (4) Full qty
55
New       Price on Enquiry
12625224 (4) Full qty
BS00500n
56
SUPPORT
64051200 (1) Full qty
57
RUBBER THICKNESS
158346 (2) Full qty
58
Screw
15915807 (1) Full qty
59
WASHER
62501300 (2) Full qty
60
STUD
13539224 (4) Full qty
61
NUT
14058314 (4) Full qty
62
WASHER
12637824 (4) Full qty
63
SPRING
177625 (2) Full qty
