Brake And Clutch Hydraulic System

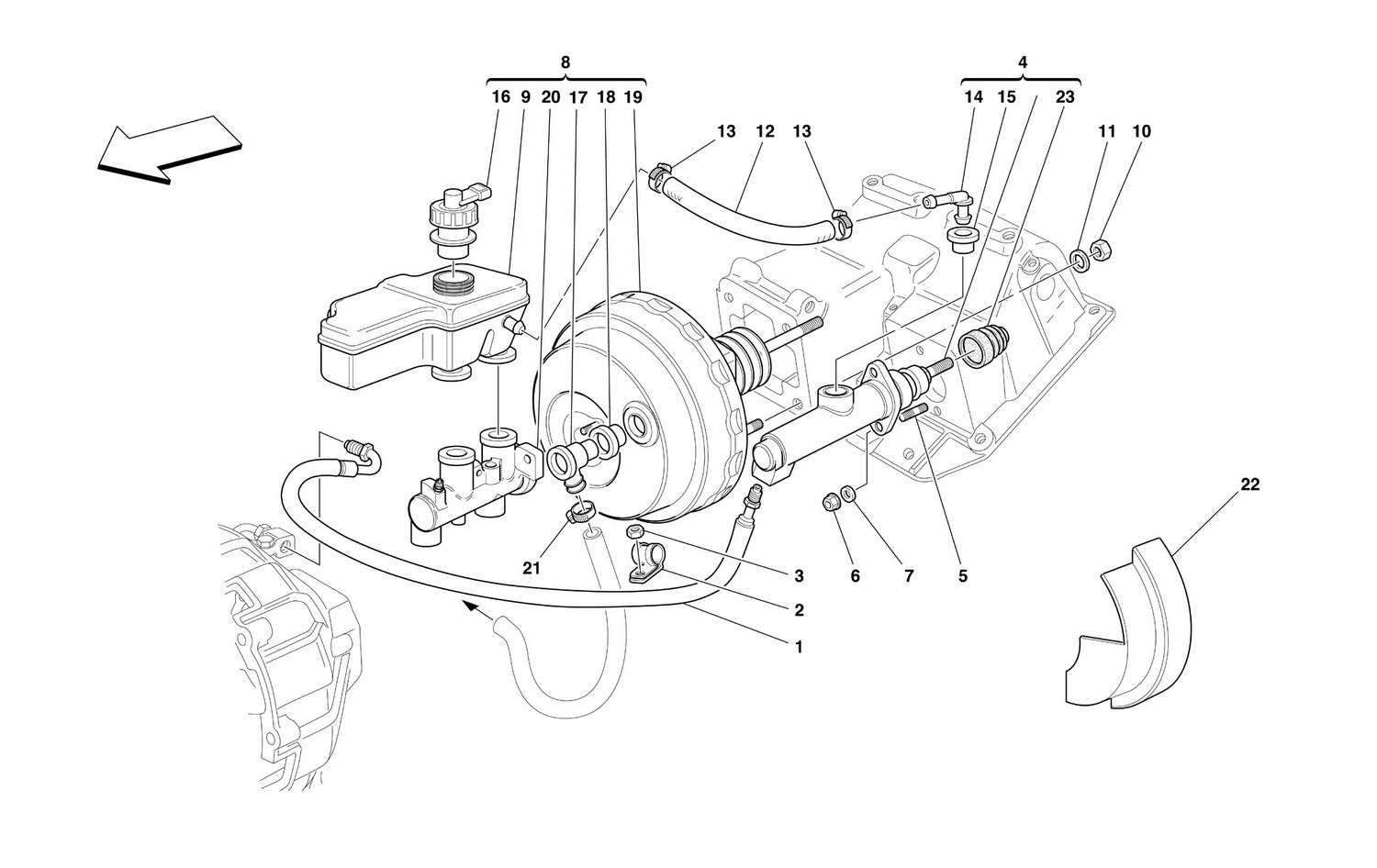

Schematic: Brake And Clutch Hydraulic System
Loc
Part
Cond       Price
1
CLUTCH CONTROL TUBE
156119 (1) Full qty
1
Clutch Hydraulic Control Tube …
154009 (1) Full qty
2
Small bracket with sheathing
10441590 (2) Full qty
3
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
4
Clutch Master Cylinder
175211 (1) Full qty
5
New       £ 0.90
13516824 (2) Full qty
CC11805n
6
Nut
133215 (2) Full qty
7
Do Not Use - See GE07667n
12601374 (2) Full qty
7
New       £ 0.12
12601374 (2) Full qty
CH11905n
8
BRAKE BOOSTER WITH PUMP
169363 (1) Full qty
9
BRAKE OIL TANK
171783 (1) Full qty
10
New       Price on Enquiry
101139 (4) Full qty
GB10400n
11
Do Not Use - See GE07667n
12601374 (2) Full qty
11
New       £ 0.12
12601374 (2) Full qty
CH11905n
12
RUBBER HOSE
173882 (1) Full qty
13
SCREW COLLAR
157934 (2) Full qty
13
SCREW COLLAR
157934 (2) Full qty
14
New       Price on Enquiry
184497 (1) Full qty
BS00624n
15
New       Price on Enquiry
175189 (1) Full qty
BS00614n
15
New       Price on Enquiry
175189 (1) Full qty
BS00881n
16
PLUG
153592 (2) Full qty
17
UNION
144552 (1) Full qty
18
CABLE GROMMET
151475 (1) Full qty
19
BOOSTER
171785 (1) Full qty
20
BRAKE PUMP
171782 (1) Full qty
21
Clamp
13000390 (1) Full qty
22
INSULATING SHIELD FOR BRAKE BO…
172812 (1) Full qty
22
INSULATING SHIELD FOR BRAKE BO…
169745 (1) Full qty
23
PROTECTION BOOT
175212 (1) Full qty
