Antievaporation Device -Valid For Usa M.Y. 99 And Cdn M.Y. 99-

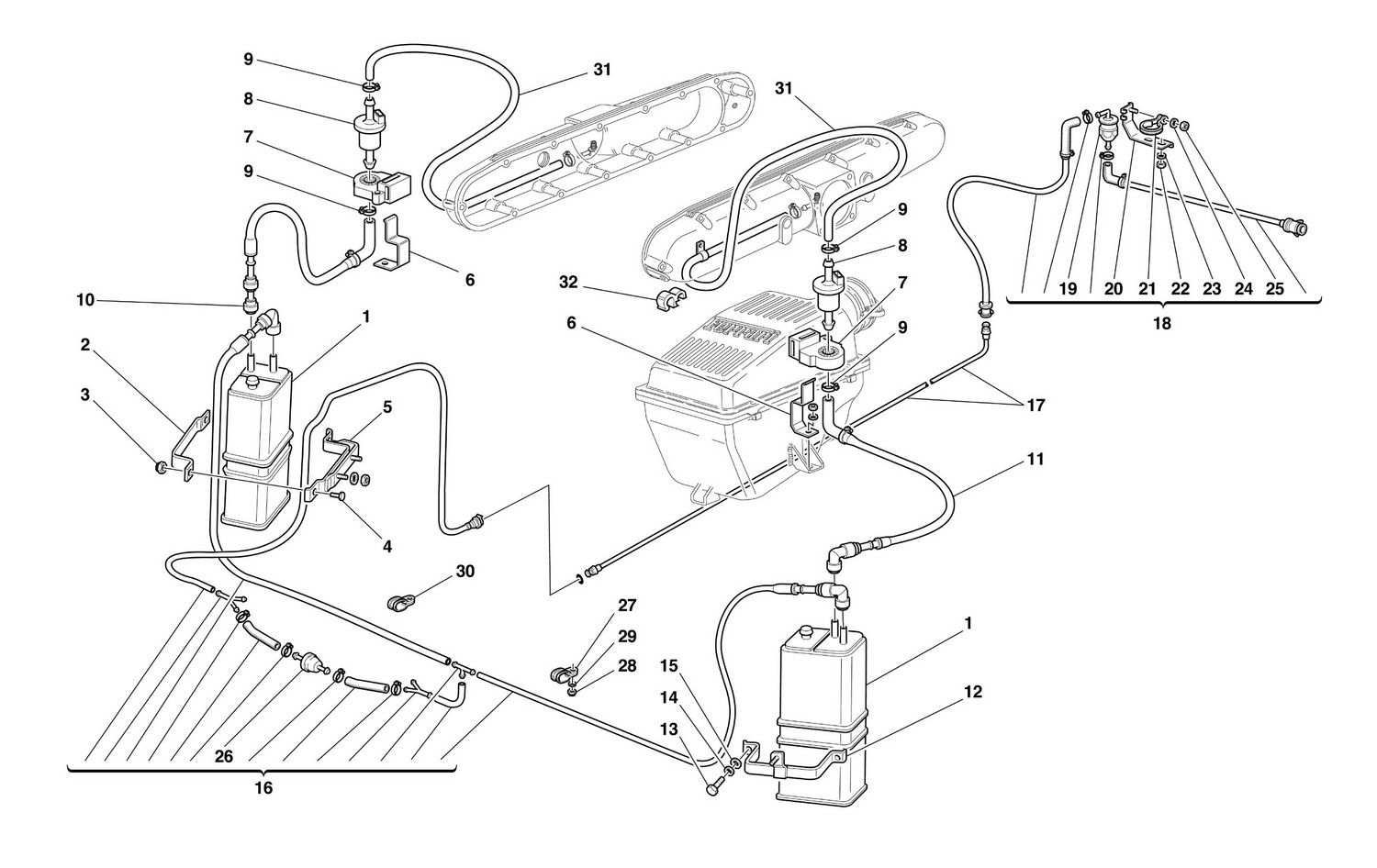

Schematic: Antievaporation Device -Valid For Usa M.Y. 99 And Cdn M.Y. 99-
Loc
Part
Cond       Price
1
FUEL VAPOR FILTER
174626 (2) Full qty
2
BRACKET
154385 (1) Full qty
3
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
4
SCREW -M6 X 14-
10902124 (2) Full qty
5
BRACKET
156452 (1) Full qty
6
R.H. PAD SUPPORT BRACKET
178792 (2) Full qty
7
BUFFER FOR SUPPORT
174623 (2) Full qty
8
New       Price on Enquiry
162412 (2) Full qty
FU14092n
9
COLLAR FOR SLEEVE
13431870 (4) Full qty
10
UNION COMPLETE R.H. TUBE
178787 (1) Full qty
11
UNION COMPLETE L.H. TUBE
178788 (1) Full qty
12
VAPOR FILTER FIXING BRACKET
169917 (1) Full qty
13
SCREW -M6 X 14-
10902124 (2) Full qty
14
Clutch Bolt Wavy Washer 550/57…
127494 (2) Full qty
15
Washer 1.6mm 6.4x11.95x1.6
10519424 (2) Full qty
16
VENTILATING FLAP PIPE ASSEMBL…
178814 (1) Full qty
17
INTERMEDIATE UNDERFLOOR TUBE
178858 (2) Full qty
17
INTERMEDIATE UNDERFLOOR TUBE
183489 (2) Full qty
18
ROLL-OVER VALVE ASSEMBLY
179024 (1) Full qty
19
ANTI FLOWING BACK VALVE
170522 (1) Full qty
20
VALVE SUPPORTING BRACKET
172458 (1) Full qty
21
CLAMP
172460 (1) Full qty
22
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
23
WASHER
14499324 (2) Full qty
24
WASHER
12637824 (1) Full qty
25
NUT
113647 (1) Full qty
26
TANK VENTILATION VALVE
174594 (2) Full qty
26
TANK VENTILATION VALVE
174594 (2) Full qty
27
Clamp
10441290 (4) Full qty
28
Nyloc Nut 6 x 1 x 7.6mm
102948 (2) Full qty
29
WASHER
14499324 (2) Full qty
30
Bracket
10441690 (1) Full qty
31
PIPE FROM AIR CAPACITY TO VALV…
179768 (2) Full qty
32
CLIP
180148 (2) Full qty
